Clear machining attributes
If the box is checked, parameter settings of the program file will be removed when
the file is removed from the system; otherwise, parameters of the program file
remain.
Exposure
Drag the slide to adjust the exposure of the camera. See Exposure for its definition.
Gain
Drag the slide to adjust the gain of the camera. See Gain for its definition.
It is not recommended to set a high value.

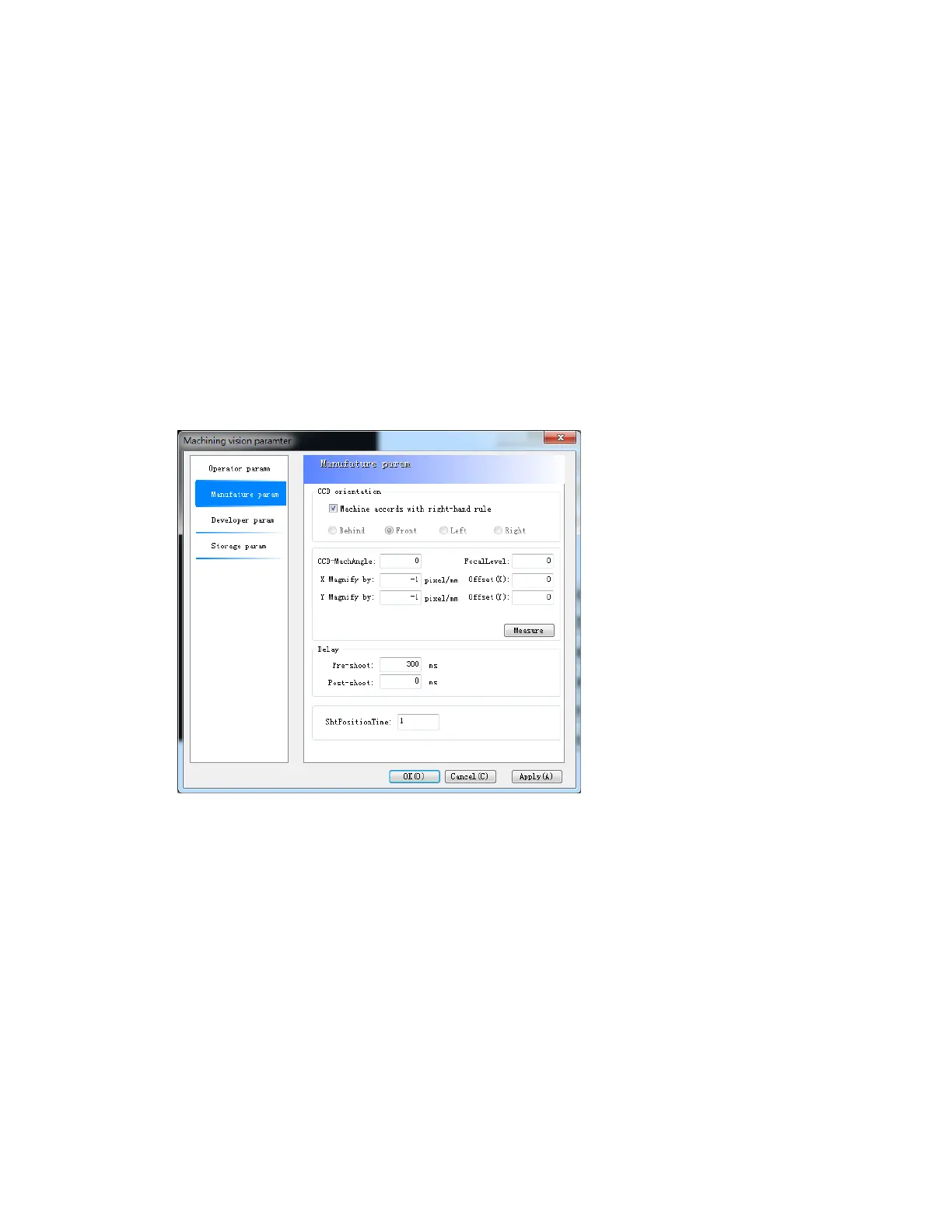

3. Click Manufacturer on the left side, and set parameters of manufacturer’s
access on the right.
CCD orientation
Sets the camera position relative to the spindle.
Only Front is supported at present. If you find the camera positions is wrong,
discharge the camera and adjust the position.
CCD-Machine angle
It sets the angle between camera and the spindle. The angle comes from the
misalignment of camera and the machine.
Magnification factors
It includes magnification factors in X-axis and Y-axis.
CCD offset
It sets distances between the camera and the spindle in X-axis and Y-axis.
