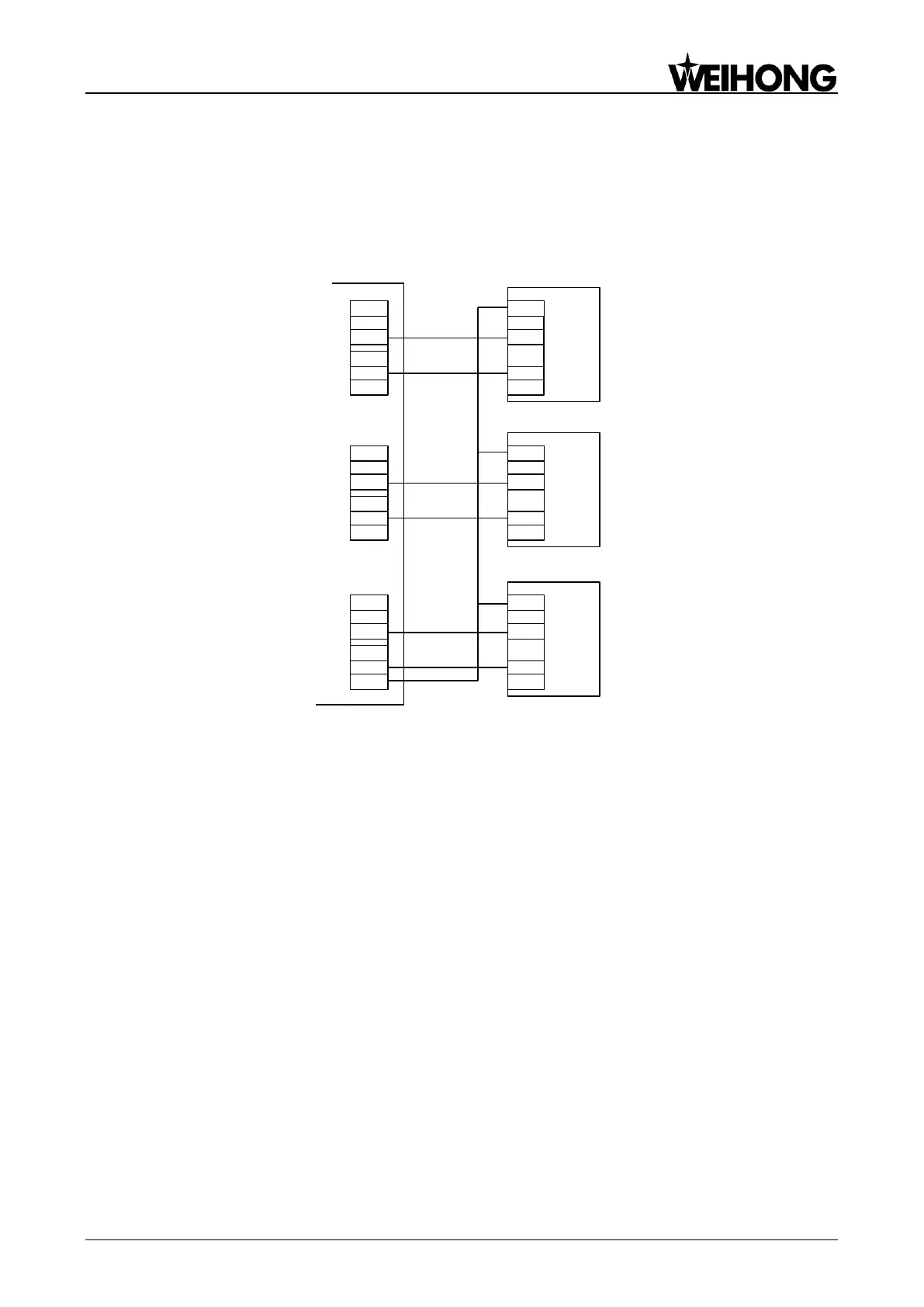

5.5 Wiring Diagram of Controller and Driver
5.5.1 Lambda 3S/3L Series
5.5.1.1 Wiring with Stepping Driver with Common Port
Z-axis Stepping Driver
+COM
DIR
CP
(OPTO)
ZD-
ZP-
ZD+
ZP+
+5V
Y-axis Stepping Driver
+COM
DIR
CP
(OPTO)
YD-
YP-
YD+
YP+
+5V
X-axis Stepping Driver
+COM
DIR
CP
(OPTO)
XD-
XP-
XD+
XP+
+5V
Lambda 3S/3L Series
