 On-line update of hardware, dismounting avoided;
 Hardware adaptable, software customizable;
 Hardware encryption and software encryption for safety concerns;
 Input polarity adjustable, inputs active high/ low.
See Fig. 1-5 for the dimensional drawing of Lambda 3S. The dimension of Lambda 3L is the same
as that of Lambda 3S.

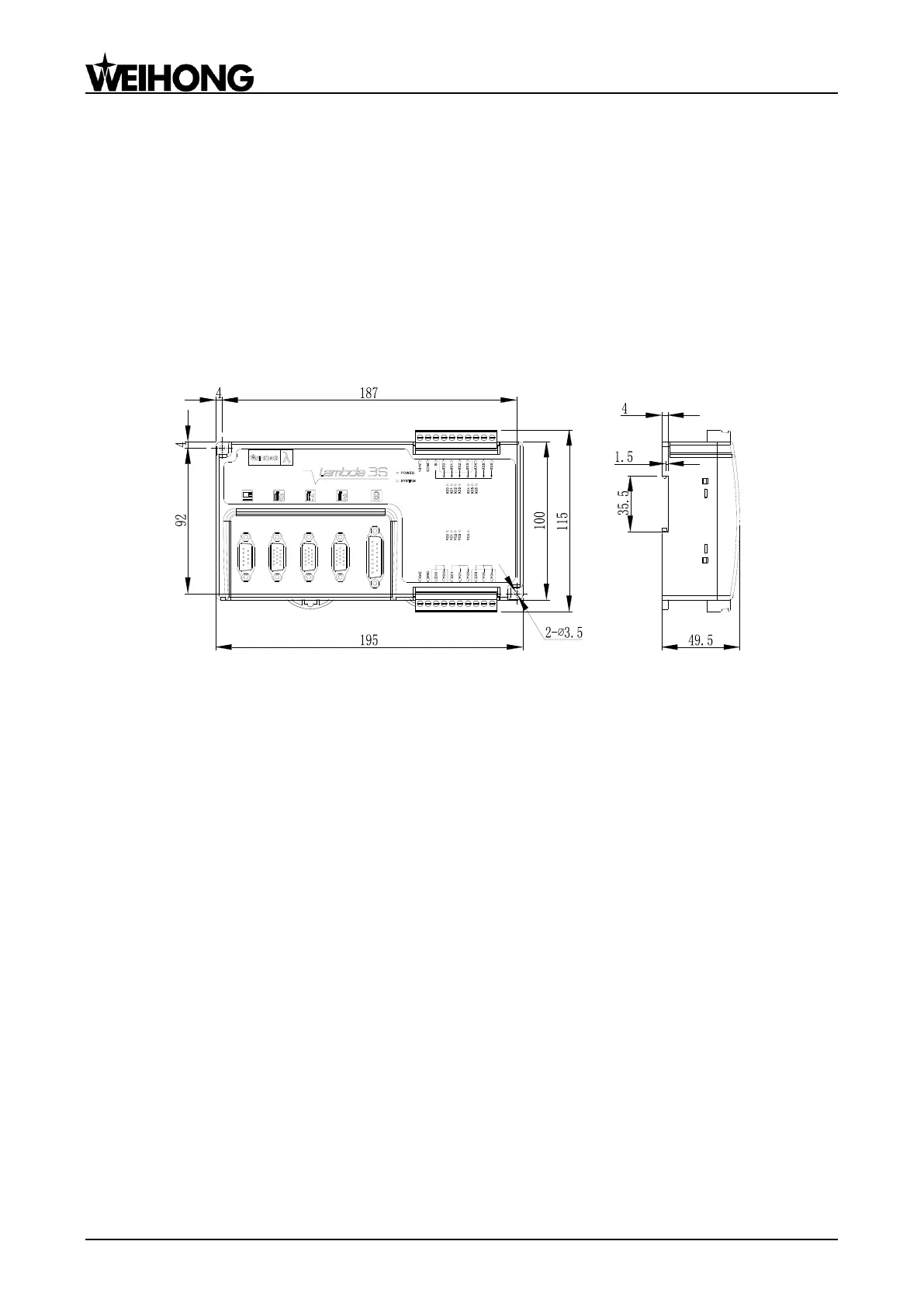

Fig. 1-5 Dimensional drawing of Lambda 3S
1.4 Lambda 4S/5S Series Controller
Fully enclosed, Lambda 4S/5S controller not only has better protection, but also improves
appearance and quality. With a brand new hardware design scheme for the control board in the
controller, Lambda 4S/5S is designed in an integrated way, extensively applied in engraving & milling,
waterjet cutting, glass cutting and other industries.
Lambda 5S can support motion control of up to 5 axes, while Lambda 4S up to 4 axes.
Lambda 4S/5S series controller includes the following features:
 Enclosed controller, oil-proof, dust-proof, and water-proof;
 Input polarity adjustable, inputs active high/ low;
 Cascaded connection available for the extended terminal board;
 Serial communication, high speed 485 interface, baud rate 10Mbps;
 Max. pulse output frequency: 1MHz;
