WEIHONG Lambda 4S Series - Connection According to AC Configuration; Five Axes Engraving and Milling

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
Specialized, Concentrated, Focused - 13 -
CAUTION
You can decided whether to connect input ports of feedrate override band switch and spindle override band switch
according to the actual situation.
 Five Axes Engraving and Milling
+C (5th) Limit
-C (5th) Limit
Cycle Start
Cycle Stop
Tool Sensor Signal
Oil Level Detection
Spindle Alarm
ESTOP
General Inputs
Z-axis Brake
C (5th) Axis REF. Point
X Axis REF. Point
+X Limit
-X Limit
Y Axis REF. Point
+Y Limit
-Y Limit
+Z Limit
-Z Limit
Z Axis REF. Point
+A (4th) Limit
-A (4th) Limit
A (4th) Axis REF. Point
+24V Power
Active High/Low
Z-axis Brake
Spindle ON
Coolant
Lube Oil
Illumination
Green
Red
Yellow
Common
Common
Common
Common
Common
Analog Output
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
Z-axis driver
To connect A
(4th) axis driver
To connect C
(5th) axis driver
To connect
MPG

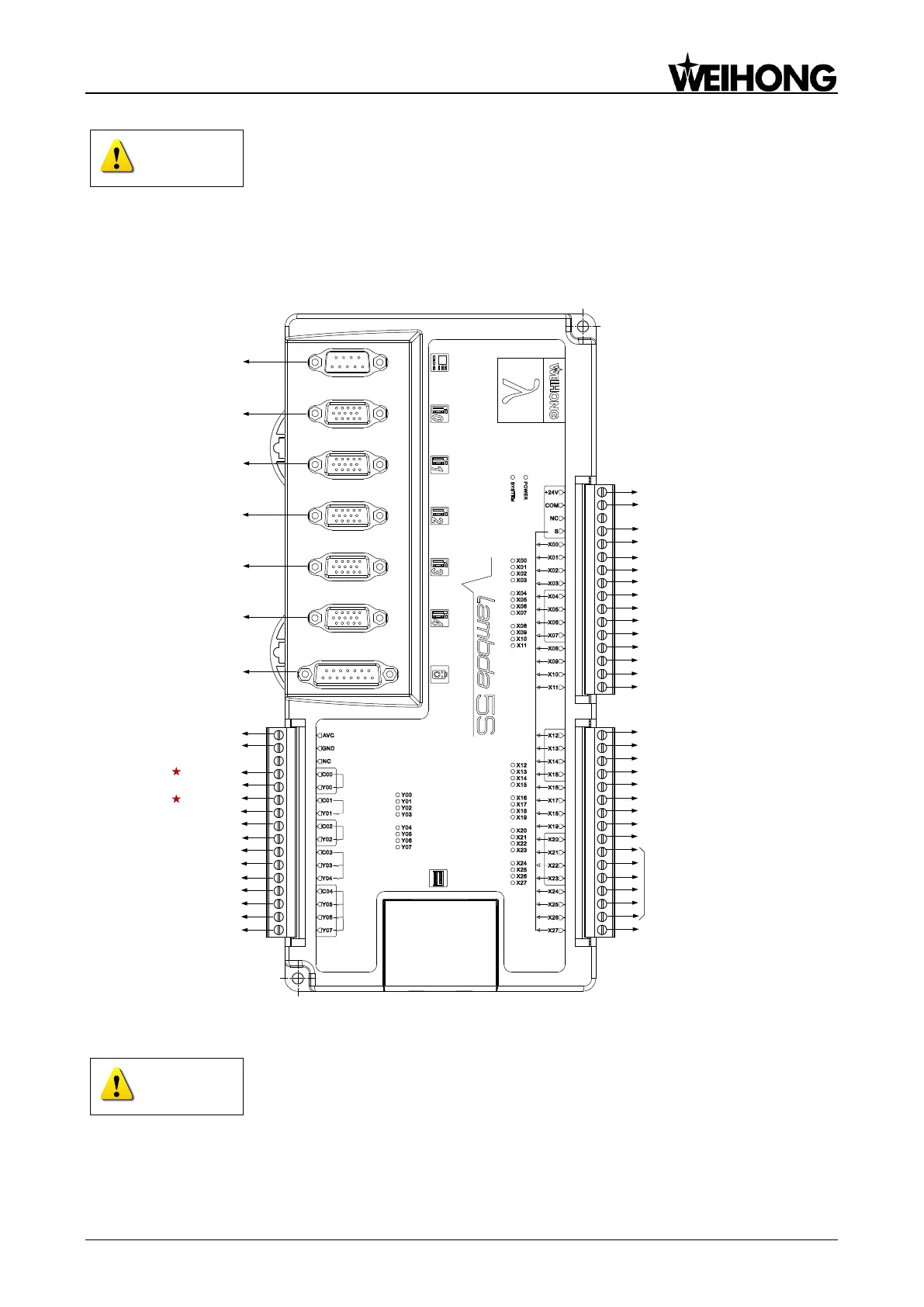

Fig. 2-4 Connection according to AC configuration
CAUTION
For AB and BC configuration, the definitions of inputs and outputs are the same as those in AC configuration,
except X9~X14 are defined as REF. point and ±limit of AB/BC axes respectively.
