WEIHONG Lambda 4S Series - Wiring Diagram with FUJI Servo Driver; Wiring Diagram with HITACHI Servo Driver

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
Specialized, Concentrated, Focused - 121 -

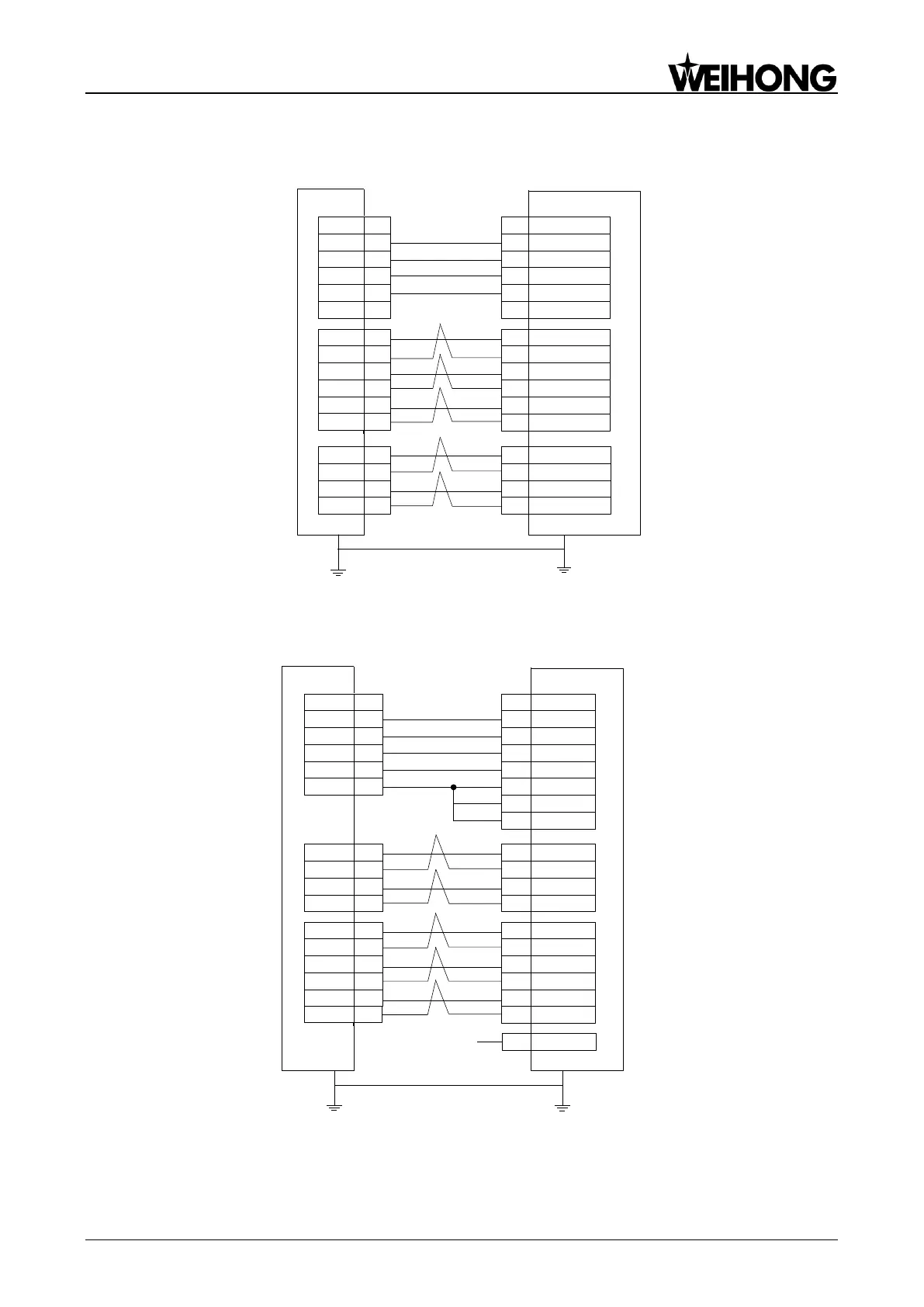

5.5.2.7 Wiring Diagram with FUJI Servo Driver
Signal Pin
+24V 6
ALM 8
SON 9
CLR 10
GND 15
A+ 1
A- 2
B+ 3
B- 4
C+ 5
SignalPin
P241
OUT115
CONT1 RUN2
CONT2 RST3
M2414
FFA9
*FFA10
FFB11
*FFB12
FFZ23
*FFZ24
Note: twisted pair for differential
signals. Brake unavailable.
Lambda 4S/5S Series
FUJI FALDIC-β 26P HD Plug
C- 7
PLU+ 11
PLU- 12
DIR+ 13
DIR- 14
CA7
*CA8
CB20
*CB21
5.5.2.8 Wiring Diagram with HITACHI Servo Driver
Signal Pin
+24V 6
ALM 8
SON 9
CLR 10
GND 15
PLU+ 11
PLU- 12
DIR+ 13
DIR- 14
A+ 1
A- 2
B+ 3
B- 4
C+ 5
SignalPin
PLC2
ALM11
SON26
RS27
CM130
PLSP15
PLSN16
SIGP40
SIGN41
OAP21
OAN22
OBP46
OBN47
OZP23
OZN24
Z-axis Brake Line
Lambda 4S/5S Series
HITACHI ADA Servo Driver
BRK13
C- 7
CM234
PEN33
