2.2.6 Three Z Axes

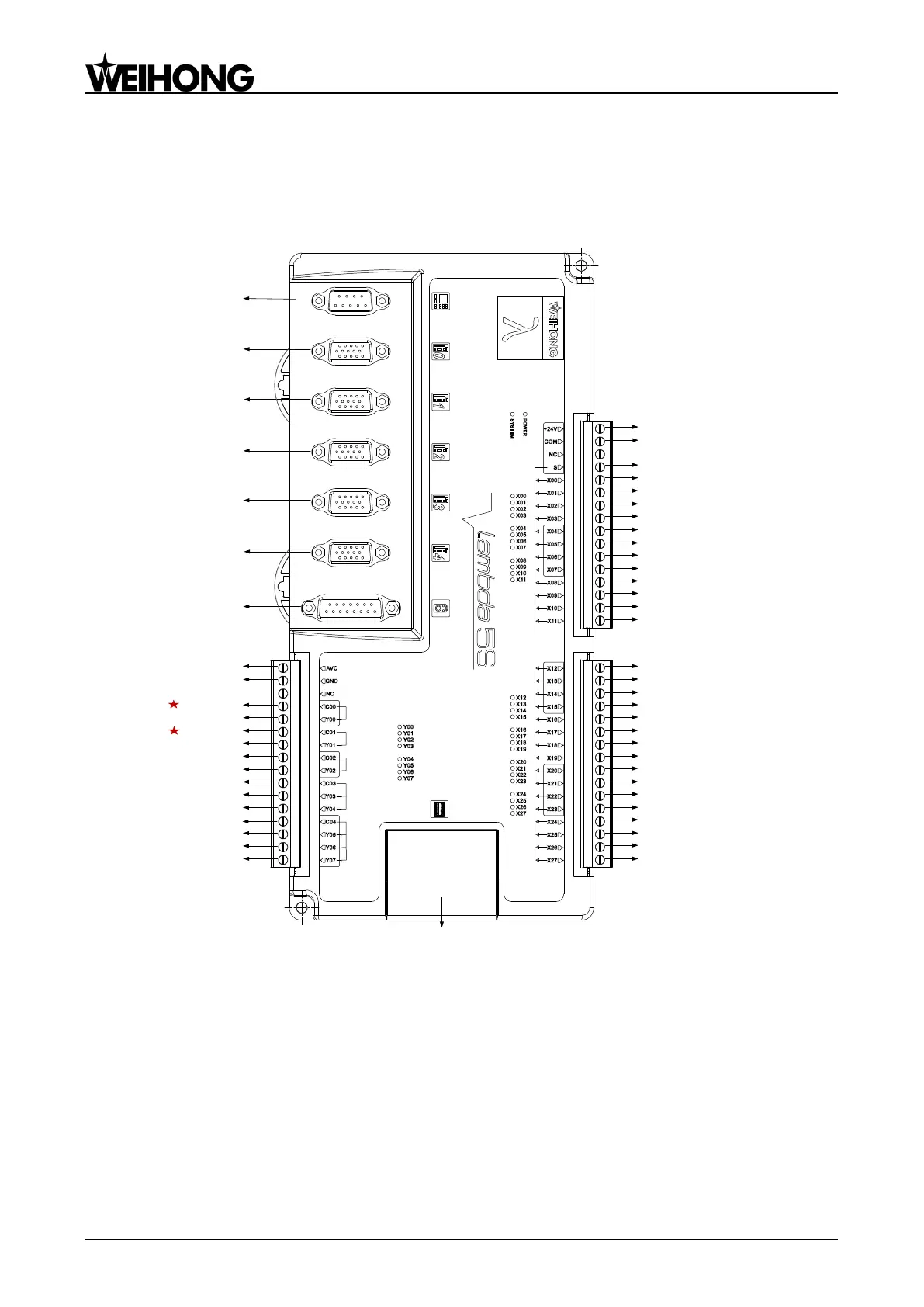

When used together with three Z axes software, Lambda 5S controller should be wired according to
Fig. 2-27.
To connect
NC65A/65B
PM85A/95A
To connect
X-axis driver
To connect
Y-axis driver
To connect
Z1-axis driver
To connect
Z2-axis driver
To connect
Z3-axis driver
To connect
MPG
Analog Output
+24V Power
Active High/Low
Open the cover and connect extended
terminal board EX31A1
X Axis REF. Point
+X Limit
-X Limit
Y Axis REF. Point
+Y Limit
-Y Limit
Z1 Axis REF. Point
+Z1 Limit
-Z1 Limit
Z2 Axis REF. Point
+Z2 Limit
-Z2 Limit
Z3 Axis REF. Point
+Z3 Limit
-Z3 Limit
Cycle Start
Cycle Stop
Oil Level Detection
ESTOP
Z1 Axis Tool Sensor
Z2 Axis Tool Sensor
Z3 Axis Tool Sensor
Spindle 1 Alarm
Spindle 2 Alarm
Spindle 3 Alarm
Breakpoint Resume
General Input
General Input
Z1-axis Brake
Z2-axis Brake
Z3-axis Brake
Lube Oil
Illumination
Spindle 1 ON
Spindle 2 ON
Spindle 3 ON
Common
Common
Common
Common
Common
Fig. 2-27 Connection according to three Z axes software
