WEIHONG Ncstudio V15 - 5.3.3.5 Wiring Diagram of Panasonic Servo Drive; 5.3.3.6 Wiring Diagram of Delta Servo Drive

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
101 / 116
5.3.3.5 Wiring Diagram of Panasonic Servo Drive

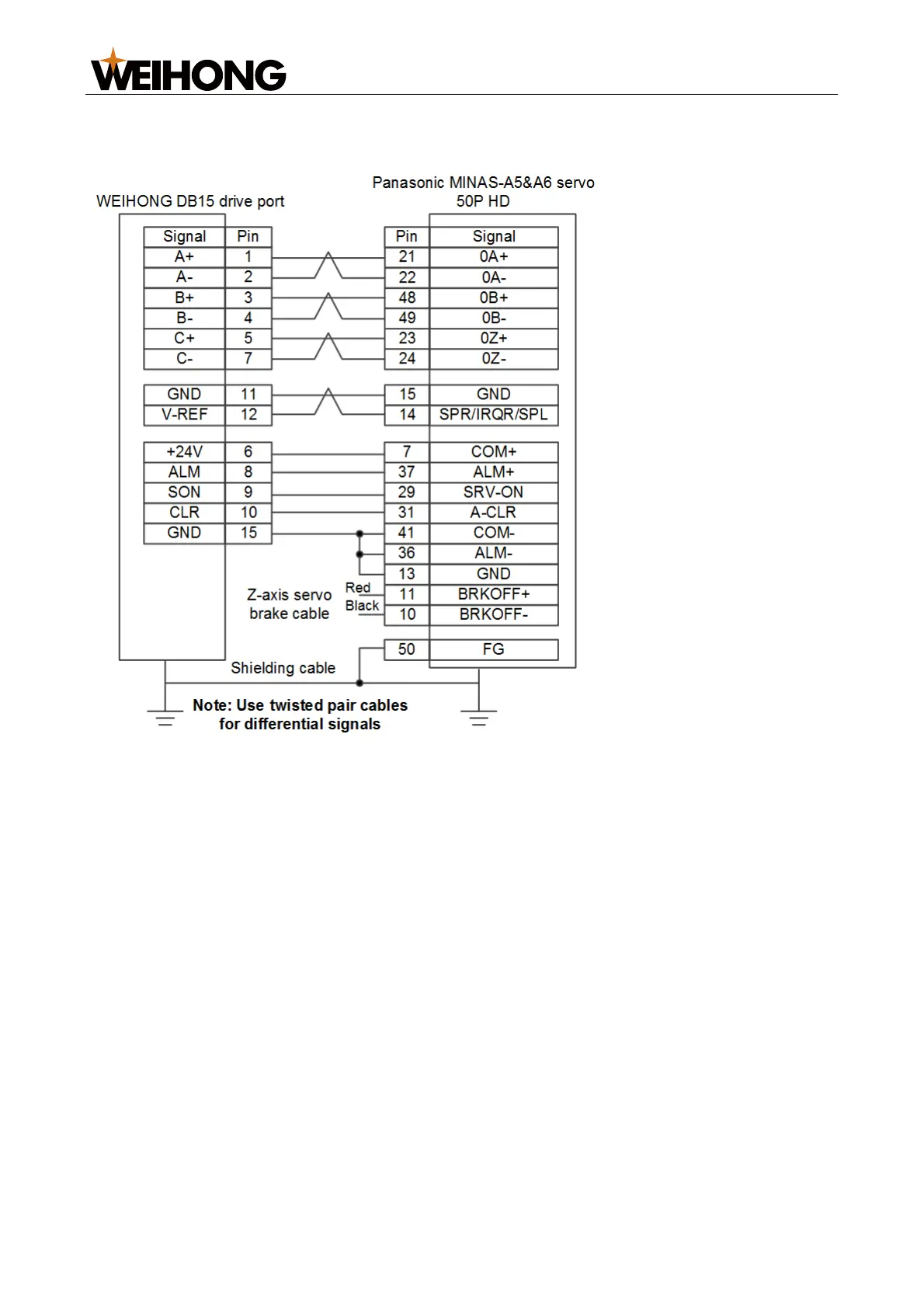

Wiring diagram is as follows:
5.3.3.6 Wiring Diagram of Delta Servo Drive
Delta ASDA-A and ASDA-B2 servo drives use the same type of cables.
Wiring diagrams are as follows:
 Delta ASDA-A
