3.4.2.1 Set Common Drive Parameters
Two methods are available for you to set the drive parameters:
 Drive front panel. For details, see the drive user manual.
 NcStudio software.

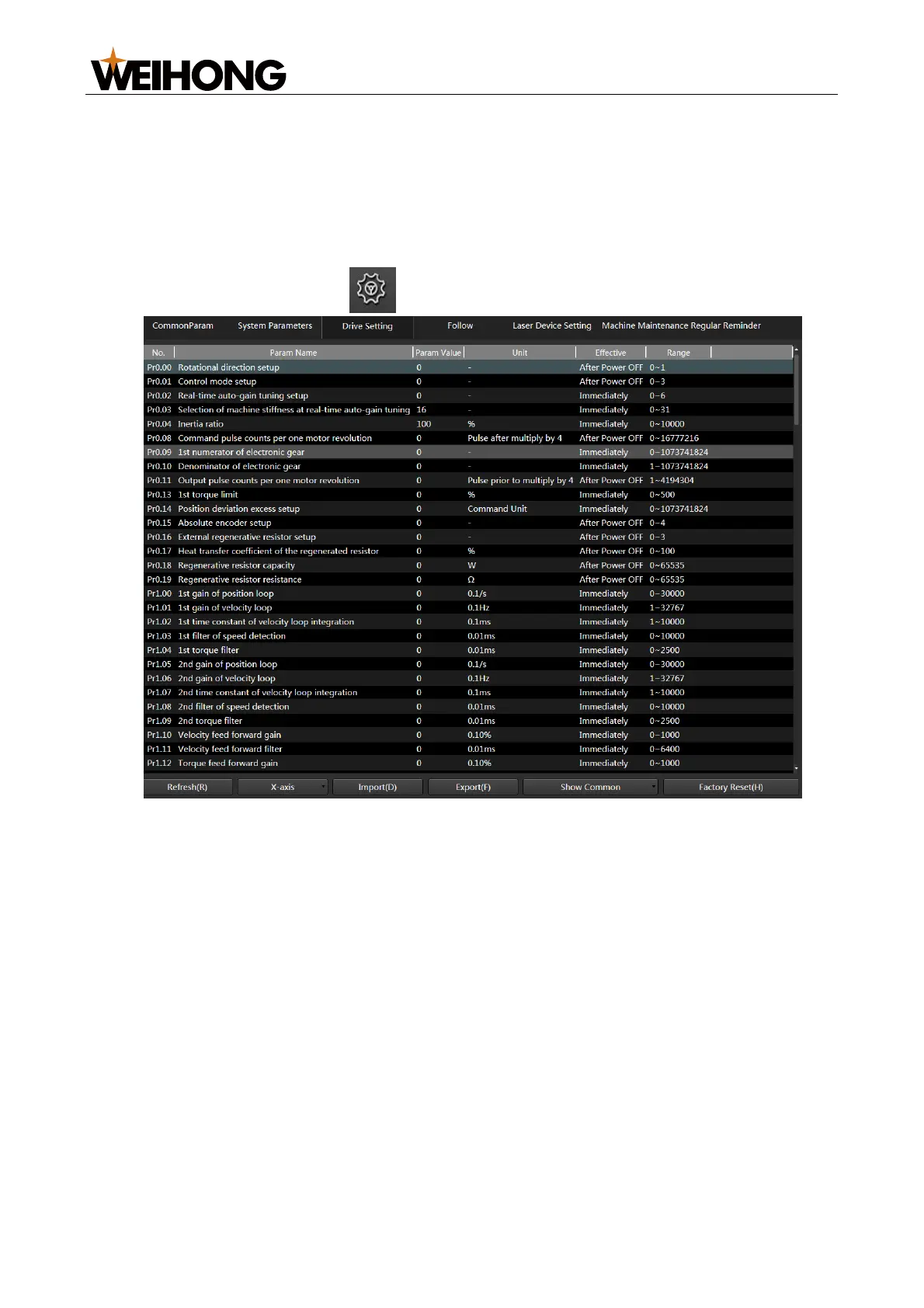

Follow the steps below to set drive parameters in NcStudio:
1. In the function bar, go to Set > Drive Setting.
2. Click Refresh to update the drive parameters.
3. Double-click the target parameter to set it.
Basic parameters that need setting in NcStudio are shown below. Refer to the user
manual of the drive brand to set other parameters.
Yaskawa drives:
 Pn00B function selection basic switch B: 0000 (three-phase)/0100 (single-phase)
 Pn50A input signal selection 1: 8881
 Pn50B input signal selection 2: 8888
 Pn50E output signal selection 1: 0000
 Pn50F output signal selection 2: 0100
 Pn510 output signal selection 3: 0000
 Pn514 output signal selection 4: 0000
WISE drives: Pr001 Control mode setting: 1 (position control)
3.4.2.2 Set Station Address
By setting the station address, information can be transferred between the software,
Lambda controller, and drive.
