Weil-McLain PLUS LINE PLUS-E017-A/1206 - A3. Water Heater Wiring; Water Heater Thermostat Connection

Part Number PLUS-E017-A/1206
15
Manual • Installation • Start-Up • Usage • Maintenance • Parts
Water heater
thermostat
connection
PLUS-Line indirect water heaters utilize a snap-set connector for easy wiring between water
heater thermostat and boiler controls (also see Section B or D). See Figure 6, below.

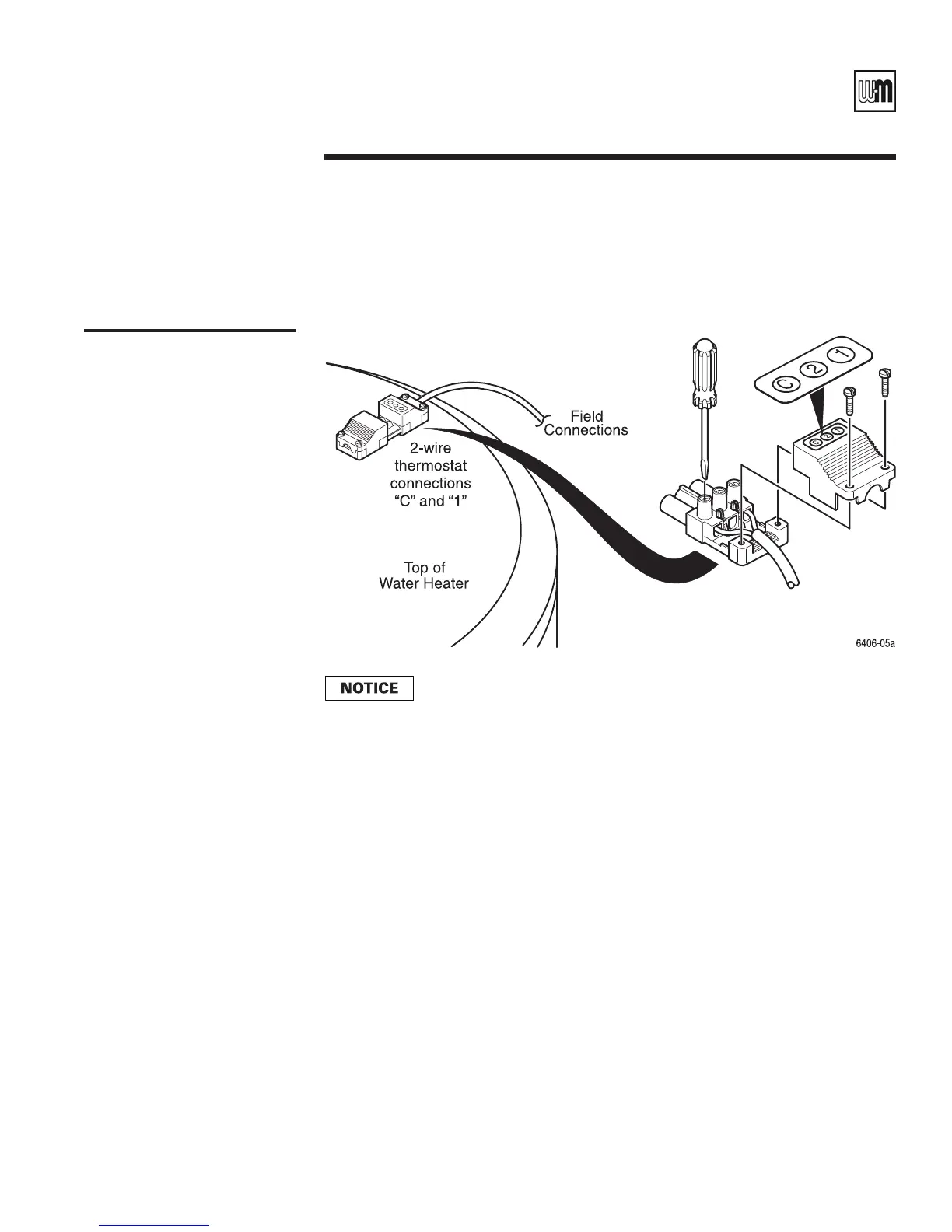

Figure 6
Thermostat connection
Water heater wiring
Terminal 1 of the snap-set is the normally-open contact; terminal 2 is the
normally-closed contact; terminal C is common.
A3
