Weil-McLain PLUS LINE PLUS-E017-A/1206 - F. Water Heater Dimensions&Performance Ratings; Water Heater Dimensions

66
Part Number PLUS-E017-A/1206
PLUS LINE Indirect-Fired Water Heaters – Series 3

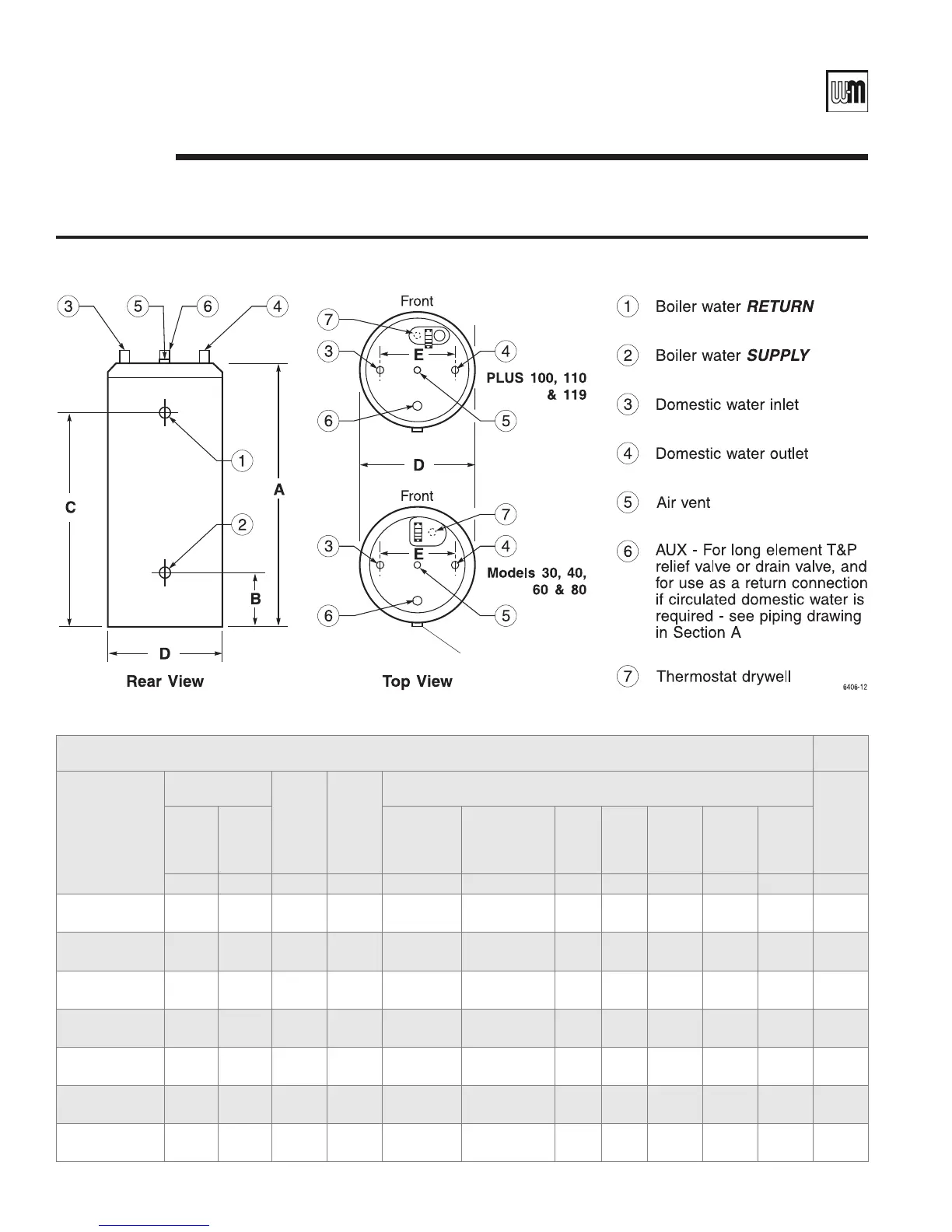

Water heater dimensions
Dimensions — PLUS-Line indirect water heaters, Series 3
PLUS-Line Indirect-Fired Water Heaters — Series 3
Water
Heater
Model
Storage Heating
surface
Head
loss on
Boiler-
side
Dimensions Ship.
weight
(approx.)
DHW
side
Boiler
side
DHW
inlet/outlet
(items 3 / 4)
Boiler water
supply/return
(items 1 / 2)
A B C D E
Gallons Gallons Sq. Feet Feet Inches NPT Inches NPT Inches Inches Inches Inches Inches Pounds
GOLD Plus 30
28 5 13 ¾ ¾ 1 38 9 30 22 ¼ 14 ¼ 135
GOLD Plus 40
Ultra Plus 40
36 6 16 1 ¾ 1 46 9 38 22 ¼ 14 ¼ 155
GOLD Plus 60
Ultra Plus 60
46 8 20 1 ¼ ¾ 1 ¼ 57 9 49 22 ¼ 14 ¼ 180
GOLD Plus 80
Ultra Plus 80
56 8 24 1 ½ ¾ 1 ¼ 66 9 58 ¼ 22 ¼ 14 ¼ 200
PLUS 100
70 14 29 2 1 ½ 1 ½ 61 10 50 ½ 26 ½ 10 ⁵⁄₈ 271
PLUS 110
95 25 34 2 1 ½ 1 ½ 78 10 67 ¼ 26 ½ 10 ⁵⁄₈ 362
PLUS 119
119 30 42 2 ½ 1 ½ 2 73 ¼ 10 63 32 ¼ 10 ⁵⁄₈ 479
F
