Weil-McLain PLUS LINE PLUS-E017-A/1206 - Zoning With Weil-Mclain Zone Valve Controller (Wmzv); Domestic Priority Optional (Controller Switch)

52
Part Number PLUS-E017-A/1206
PLUS LINE Indirect-Fired Water Heaters – Series 3

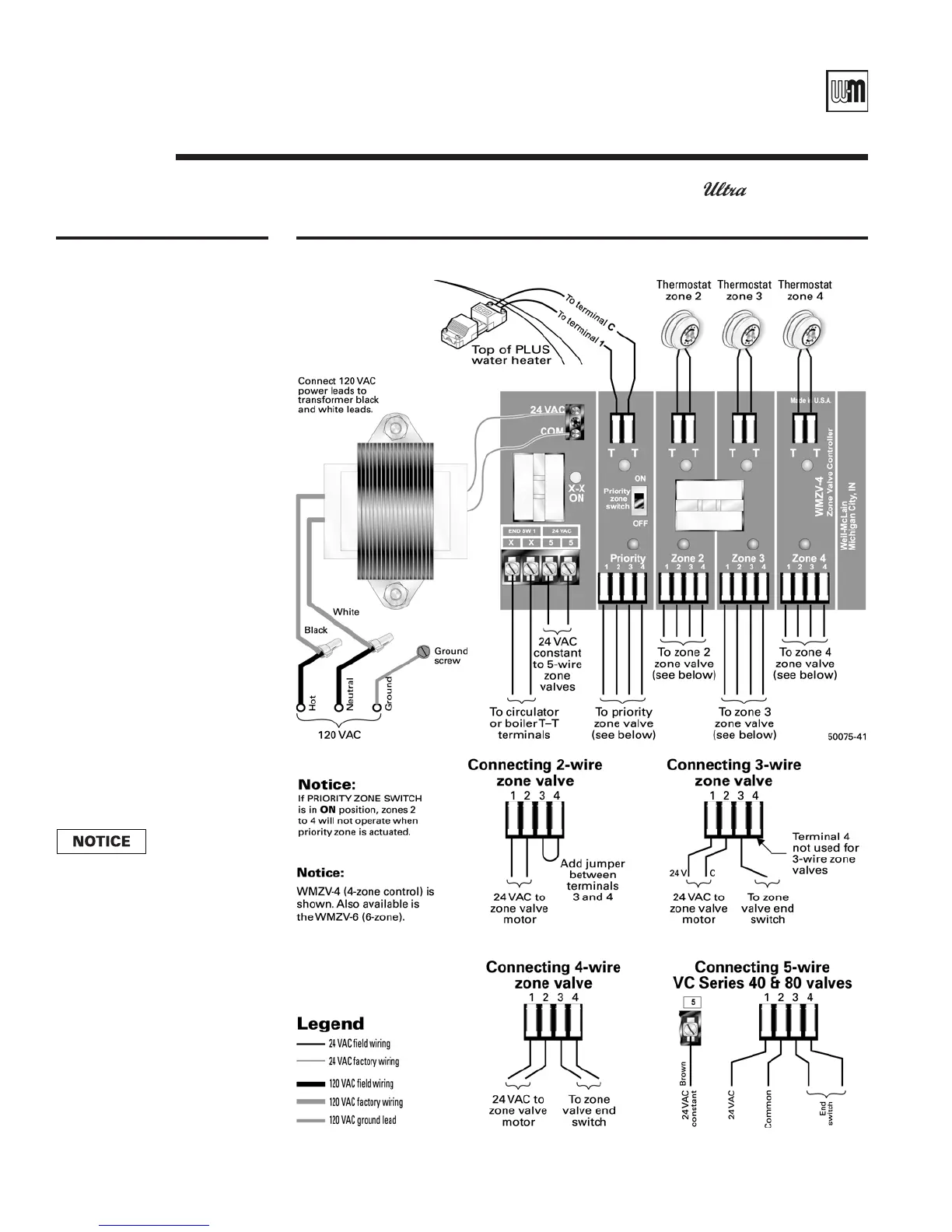

Figure 34
Typical wiring:
• Zoning with Weil-McLain
zone valve controller
(WMZV-4 shown)
• Domestic priority optional
(controller switch)
• Also refer to Weil-McLain
Boiler Zone Wiring Guide for
further details.
• Refer to Wiring requirements on
page 47.
System piping —
Apply this wiring to systems
in:
• Figure 23, page 39 (using 2-way
water heater zone valve and no
priority valve)
Domestic water priority with Weil-McLain WMZV Zone Valve Controller
Install all zone valves per valve
manufacturer’s instructions.
Boiler-side wiring & controls (except Gas) continuedD
