Merrychef eikon
®
e2s service and repair manual
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
7 Circuit boards and diagrams
Back to contents >

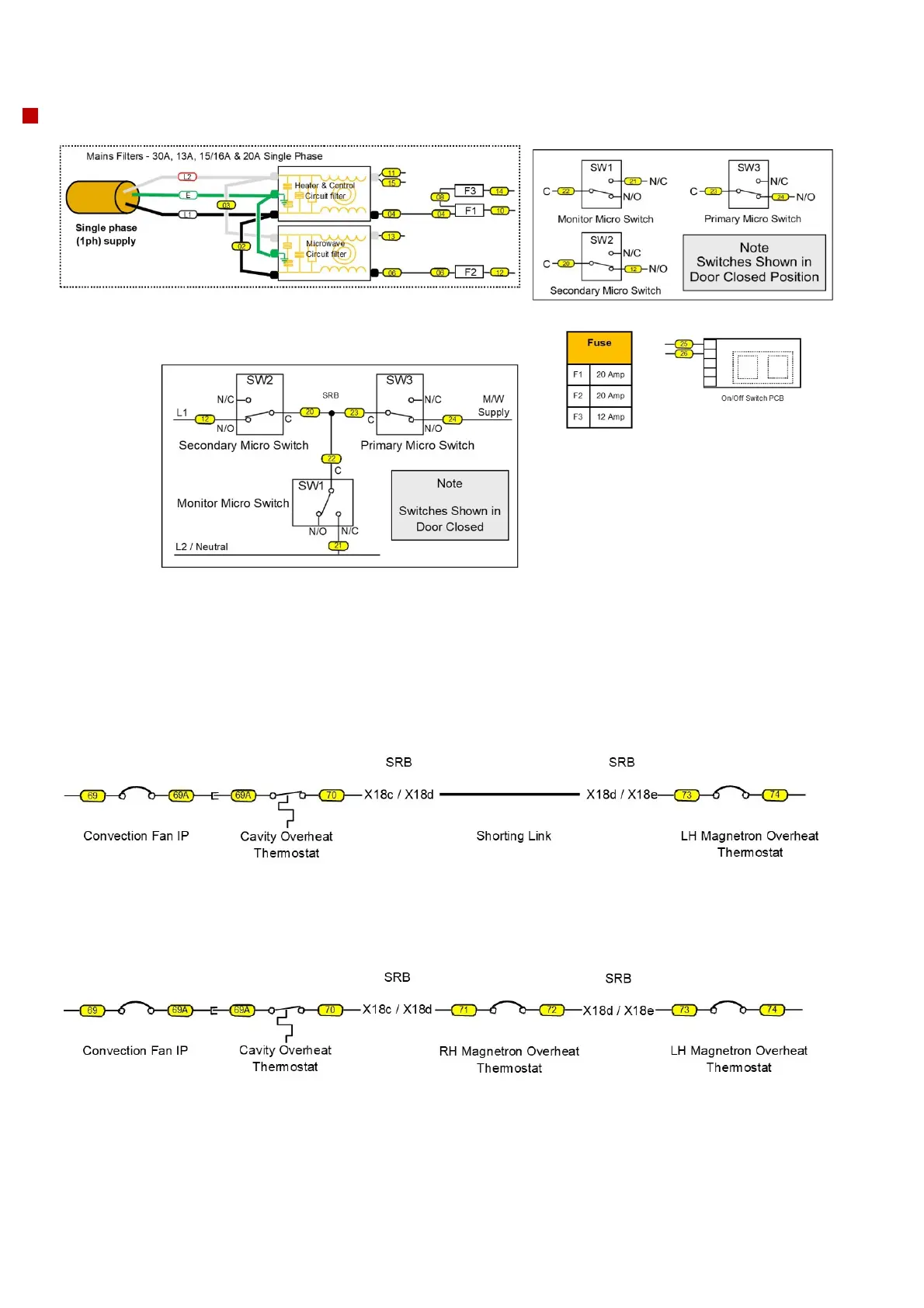

e2s wiring diagram 60Hz 208/240V
Door switches – LV safety interlock circuit
Overheat thermostats – ELV safety circuit
1000W Ovens
2000W Ovens
