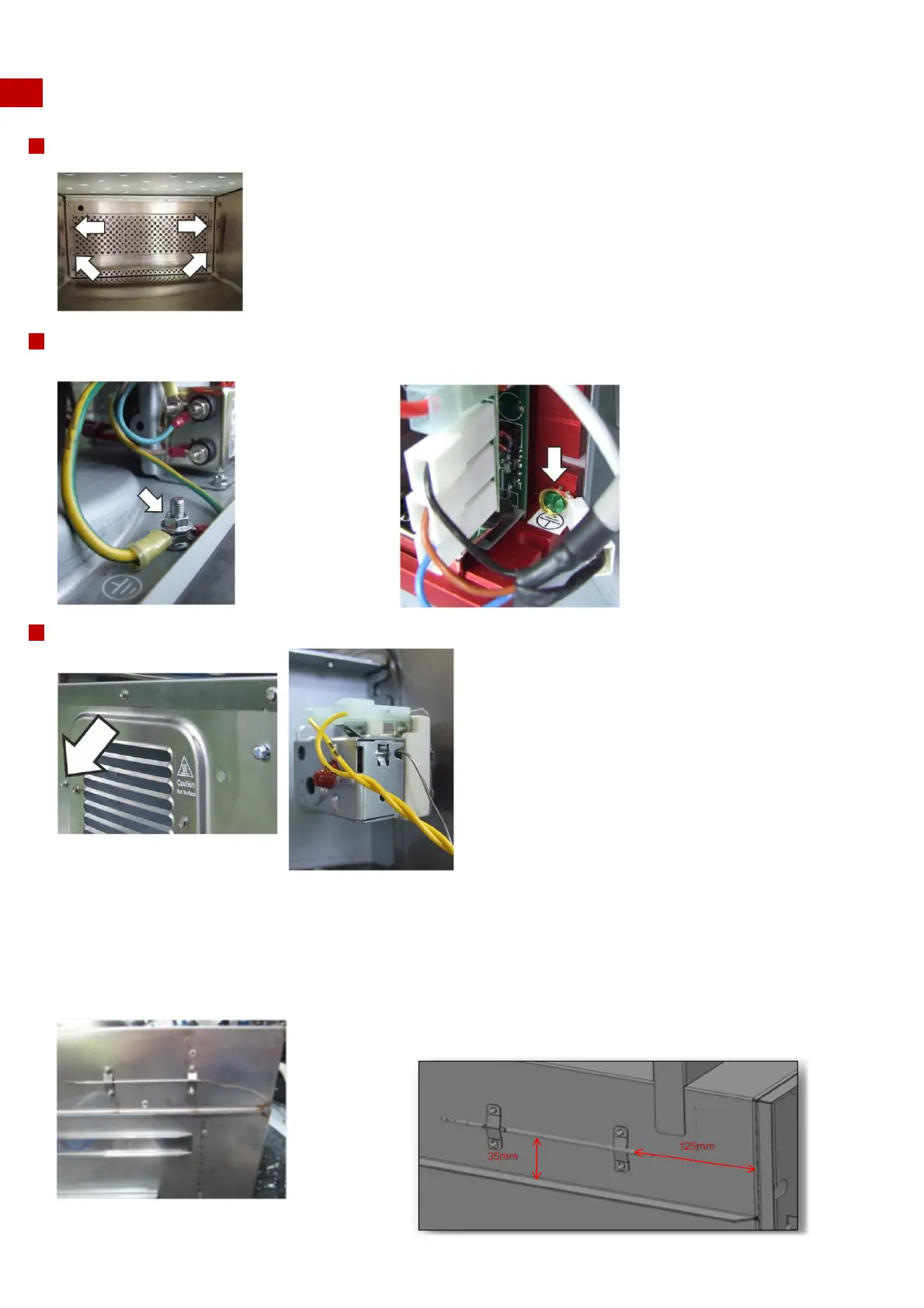

6.18 Overview – further components
Removable diffuser in the cavity
Protective earth – connections to casing
M8 nut
Cavity high limit
The cavity overheat thermostat is fitted to the cooling duct on the right hand side of the oven, with a single M14 nut and an
antivibration rubber grommet on the thermostat side of the bracket. It continually monitors the cavity temperature via a
capillary connected to the right hand side of the cavity. Excessive temperature will cause the switch to open and break the
safety circuit to the SRB.
The rear air diffuser plate in the cavity prevents
large foodstuff from hitting the rear of the cavity.
Loosen the bottom two M7 hex nuts and unfasten
the top two M7 hex nuts to remove/refit.
The cavity high limit (cavity overheat thermostat) can be
accessed via the rear panel on the left hand side of the grille
to manually reset.
Reset procedure:
§ Remove the pictured M5.5 hex head flange bolt
§ Insert a terminal screwdriver (or similar) into the
hole and push in the button to reset.
§ After reset, refit the M5.5 hex head flange bolt.
NOTE: No live terminals are accessible through this port.
The panels of the casing do not need to be removed.
The cavity high limit (cavity overheat thermostat) probe is clamped under the cavity
wrap insulation on right hand side of the cavity. The two clips are fitted by four M7
hex flange nuts, tightened to 1.7 Nm. On replacement it is imperative that the new
probe is located in the same position as pictured.
