Merrychef eikon
®
e2s service and repair manual
_______________________________________________________________________________________________________________________________
_______________________________________________________________________________________________________________________________
7 Circuit boards and diagrams
Back to contents >

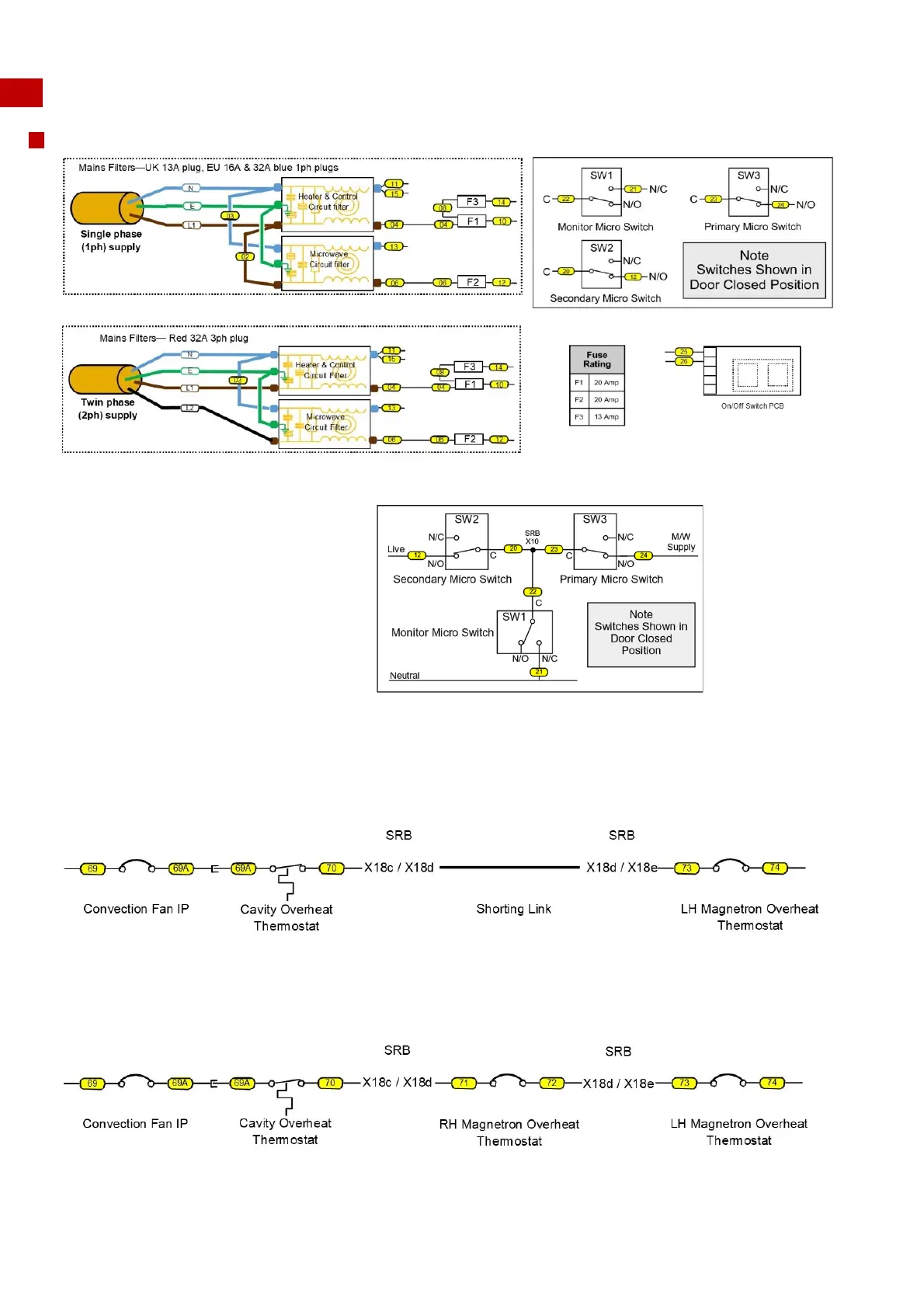

7.2 Circuit diagrams
e2s wiring diagram 50Hz 200/230V
Door switches – LV safety interlock circuit
Overheat thermostats – ELV safety circuit
1000W Ovens
2000W Ovens
