6 Replacing components
6.1 Safe working when replacing appliance parts
For your safety when replacing appliance parts
Before starting service / repair work, it is essential that you familiarize yourself with the rules and hazard warnings specified
in section 2 ‘For your safety’, specifically section 2.16 ‘Safe working when replacing appliance parts’.
Tools required
HV Capacitor discharge tool
Digital Multi-Meter (D.M.M.)
Proprietary voltage detector
Electrical lock out tools & equipment
Door spacer kit (2 x 4mm & 2mm Spacers)
M2 hex key socket
M5.5 hex socket wrench / nut runner
M5.5 hex open / ring spanner
M7 hex socket wrench / nut runner
M7 hex open / ring spanner
M8 hex socket wrench / nut runner
M10 hex socket wrench / nut runner
M14 hex socket wrench / spanner

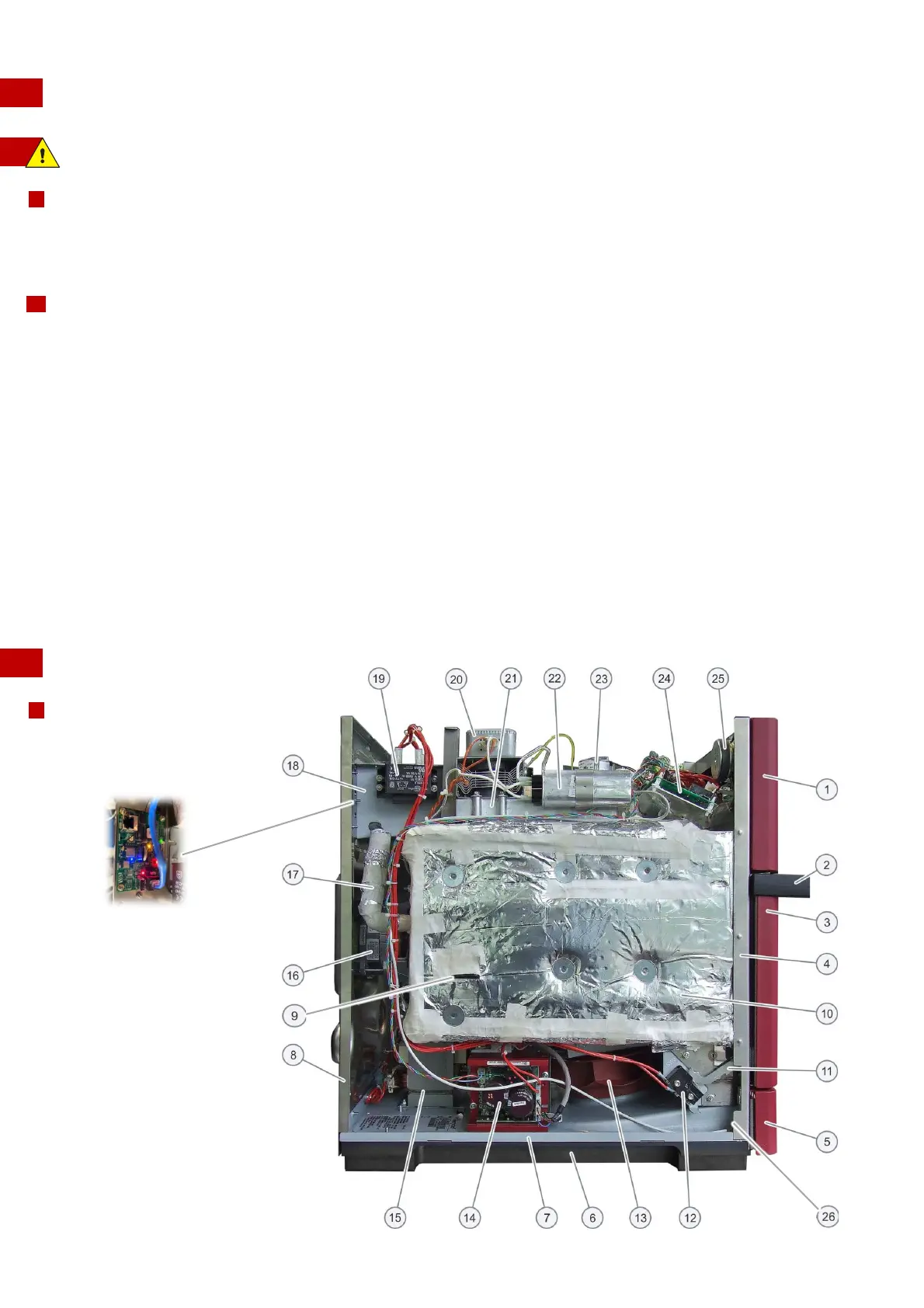

6.2 Overview
View: left hand side
Optional KCCM location (35)
Torque wrench
Stanley / retractable knife
Sealant gun
Long handled Pozidriv screwdriver PZ1
Long handled Pozidriv screwdriver PZ2
Flat screwdriver or lever
Pliers (or M14 ring spanner)
Two metal pins, 3mm diameter & 10mm long
Two metal pins, 2 to 3mm diameter & 40mm or longer in length
Hammer (for removing pressed screws from a spare magnetron)
M3 hex key socket
