Fitting the convection fan motor
Follow the steps in the reverse order to fit the convection fan motor assembly.
6.15 Replacing a transformer (high voltage)
Component
Tools required
M8 hex socket wrench
Discharge Tool

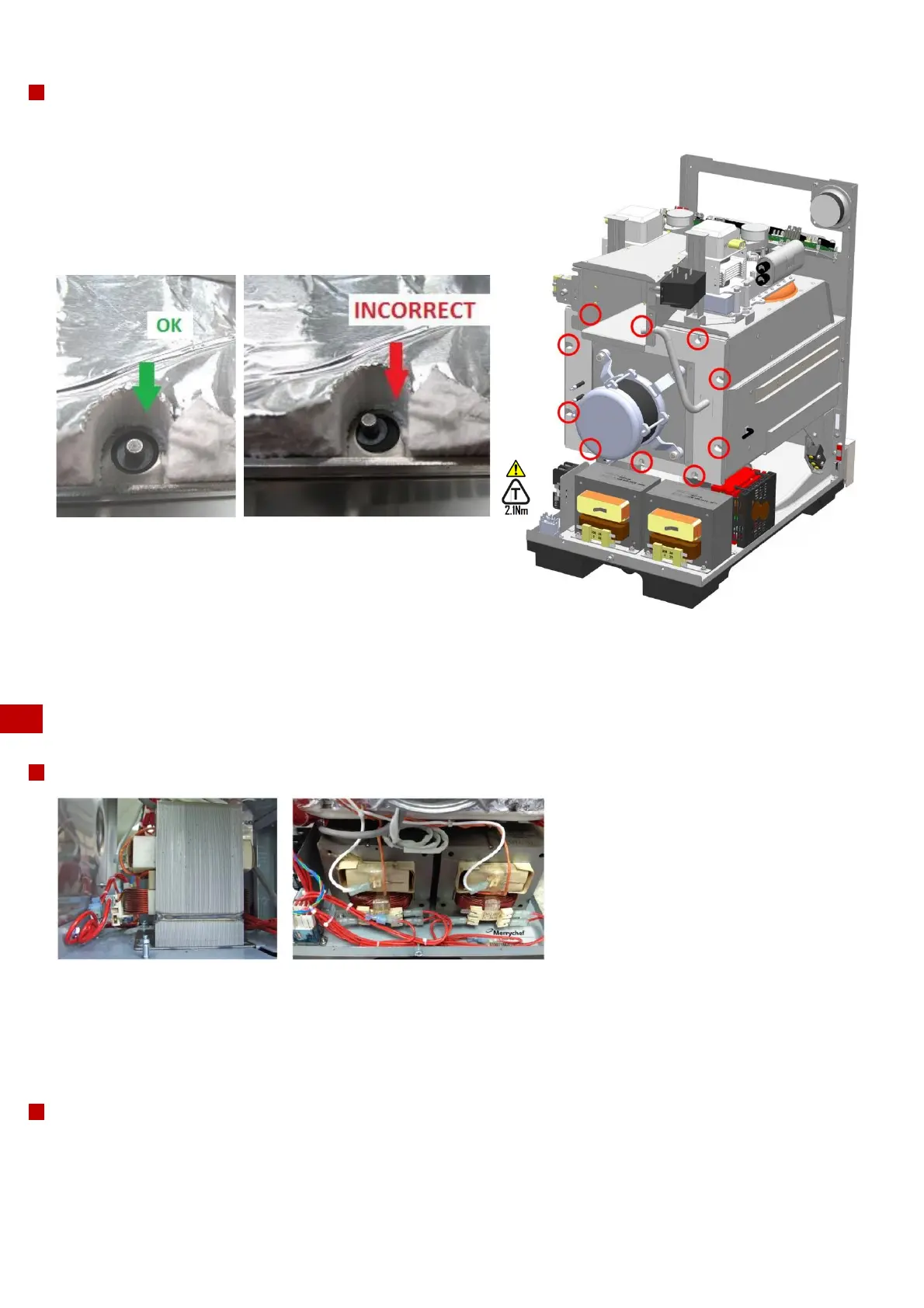

On replacement, ensure the rear plate is placed fully over the mounting points on the
cavity before refitting and tightening the nuts, fitting new rubber gaskets when
refitting the replacement motor assembly and vent pipe, ensuring the mating surfaces
are clean.
1000W e2s variant: one high
voltage transformer feeding
the magnetron.
2000W e2s variant: two high
voltage transformers side by side.
Note: the left hand transformer
supplies the right hand microwave
circuit
3. Ensure the flange nuts holding the convection motor in place have
been torqued to 2.1Nm and are torqued diagonally and not
clockwise.
