6 Replacing components
Back to contents >
Requirements
Check that the following requirements have been met:
§ The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
§ The appliance is cool.
§ The casing of the appliance is removed.
§ The high voltage capacitors are discharged before commencing work.

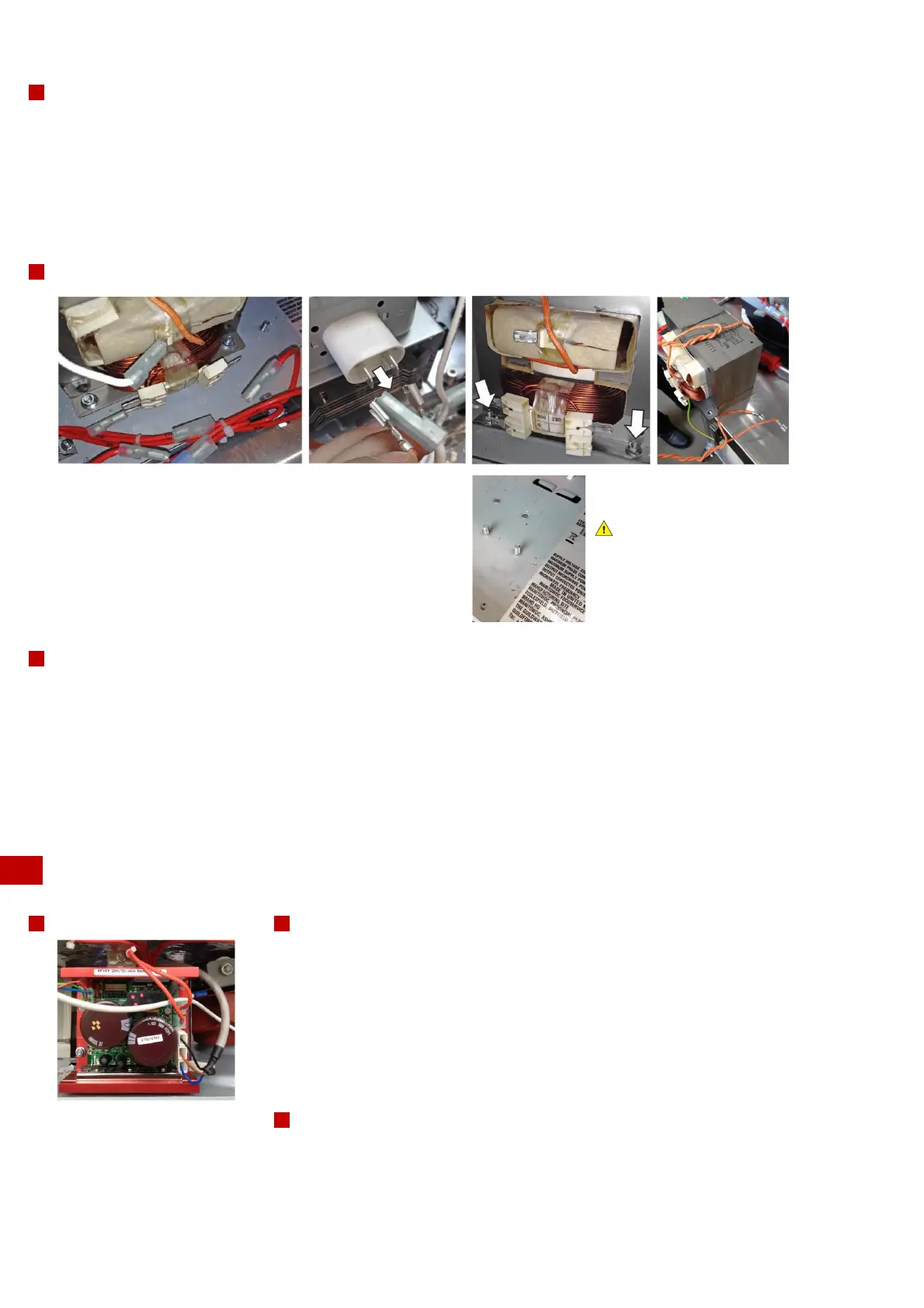

Removing a transformer (high voltage)
Fitting a transformer (high voltage)
Follow the steps in the reverse order to fit the high voltage transformer(s).
NOTICE:
It is imperative that the electrical connections are replaced correctly. If the electric connections have not been
restored properly this may lead to malfunction/damage of the oven.
On the 2000W ovens, the HV transformers are wired out of phase with each other, i.e., Neutral to the zero tapping on one
HV transformer & Live to the zero tapping of the other HV transformer.
6.16 Removing the convection fan motor speed controller
Component
1. Unplug all the electrical
connections on the
transformer(s)
2. Disconnect the
transformer(s) from
the magnetron(s) by
unplugging the
orange filament
cables at the
magnetron(s).
3. Unfasten the two M8 nuts
to remove a transformer.
CAUTION:
The transformer is heavy.
Wear safety shoes to
protect your feet from a
transformer falling down.
Remove the convection
fan motor speed controller
to access the cooling fan
located behind it.
Requirements
Check that the following requirements have been met:
§ The appliance has been disconnected from the power supply and protective
measures have been taken to ensure the power cannot be switched on again.
§ The appliance is cool.
§ All casing of the appliance is removed.
§ The high voltage capacitors are discharged before commencing work.
§ Anti-static precautions have been taken.
Tools required
M5.5 hex socket wrench
Torque wrench
