6 Replacing components
Back to contents >
Fitting the SRB
Follow the steps in the reverse order to fit the SRB. For details see “SRB Terminal Locations” in section 7.
6.10 PM (Personality Module) Replacement
Fitting the SRB Personality Module (PM)
Requirements
Check that the following requirements have been met:
§ The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
§ The appliance is cool.
§ The side and top panels of the casing of the appliance have been removed.
§ The high voltage capacitors are discharged before commencing work.
§ Anti-static precautions have been taken.
The personality module on the SRB contains the SRB dedicated firmware and the error log file.
1. Unplug the old PM from SRB and fit replacement PM (ensure part number is correct).
2. Refit all oven panels, plug in oven and switch on.
3. Tap the screen to hold and check the SRB and QTS (UI) versions are the latest release. If not, execute a firmware update
using the latest versions. See section 4.5 for details.
4. Recommission the oven in service mode.
Fitting the QTS Personality Module (PM)
Requirements
Check that the following requirements have been met:
§ The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
§ The appliance is cool.
§ Anti-static precautions have been taken.

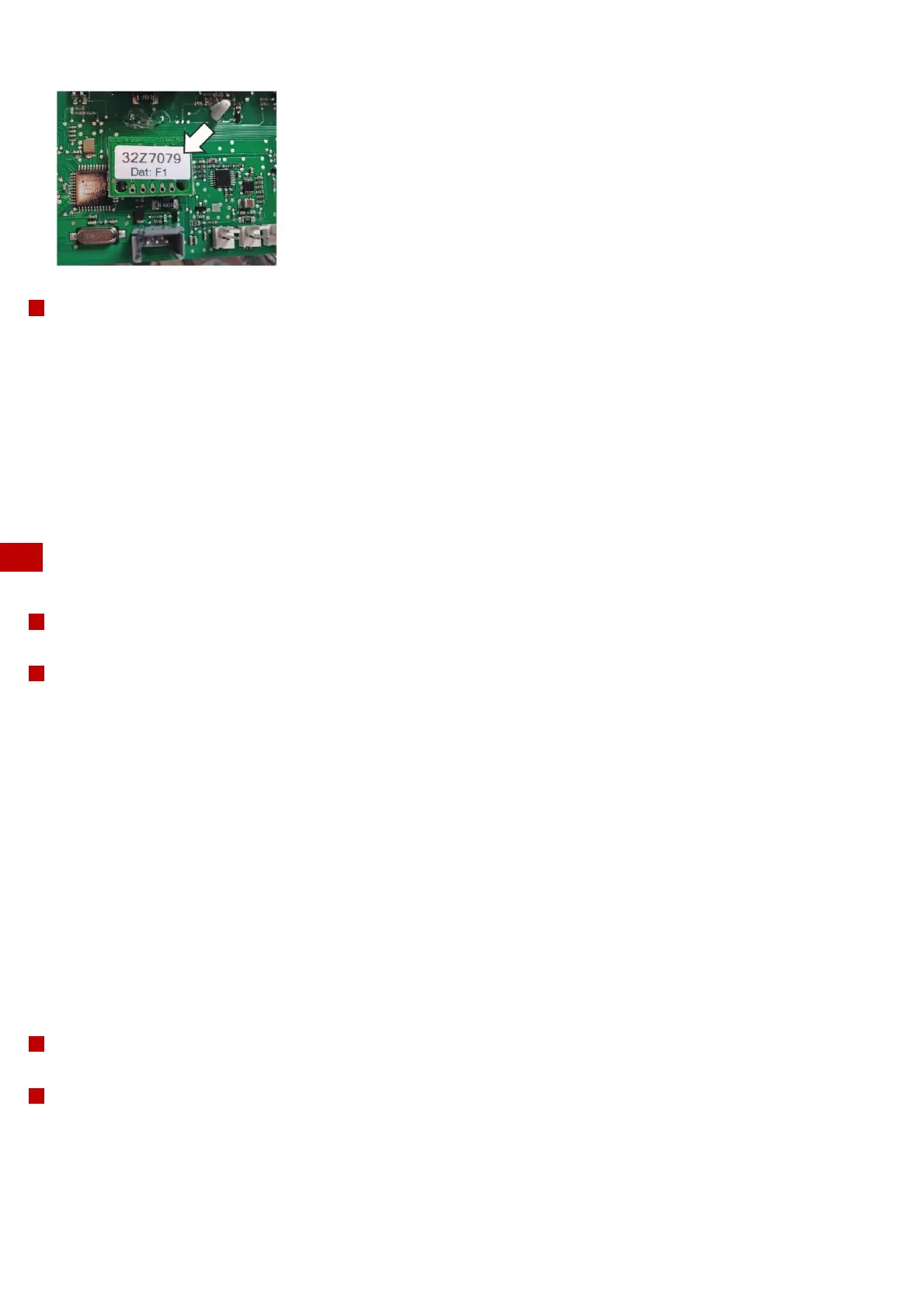

3. Remove the PM (Personality Module) from the SRB
and place safely aside.
NOTICE: Do not use tools to remove or refit the
Personality Module.
Refit the Personality Module (PM) removed from the old SRB to the new SRB.
Reason: Replacement QTS / SRB units come WITHOUT Personality Modules as the PMs store individual settings saved by the
user. Ensure the original PM Module is fitted from the old SRB/QTS and placed in the new SRB/QTS.
NOTICE:
If the electric connections have not been restored properly this may lead to malfunction/damage of the oven.
