2 For your safety
Back to contents >
Please refer to electrical installation data for other country specific models.
Equipotential bonding
An equipotential bonding point is provided on the rear panel of the appliance for independent earth (not fitted to US
models).
(GND) connection

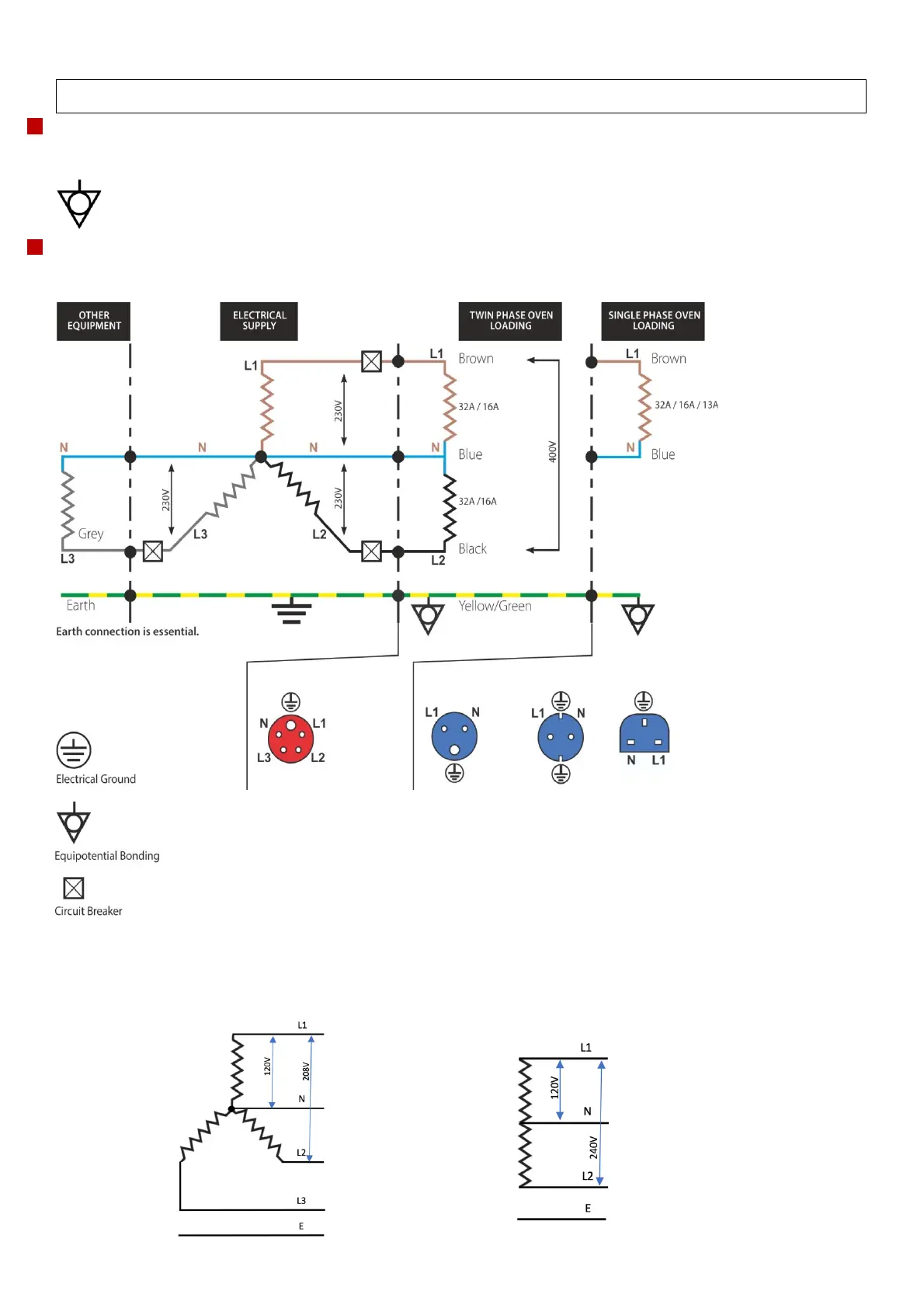

Example phase loading diagram
Loading per phase is not equal. Therefore, it is recommended to connect other electrical equipment to a separate L3+N from
the mains supply.
_________________________________________
208V, Two Pole 240V, Two Pole
L1, L2 & E L1, L2 & E
RED
Rear view of plug
Plug Type:
Three Phase 32A
IEC 60309
[EN60309]
L1+L2+N+E
[L3 is not used]
16A ‘D’
BLUE
Rear view of
plug
Plug Type:
Single Phase
32A
IEC 60309
[EN60309]
L1+N+E
EU plug
16A
CEE 7/7
(Type F
Schuko)
16A ‘D’
UK plug
13A fused
BS1363
16A ‘D’
