Welch Allyn MicroTymp User Manual

Wall Mounting Instructions
1.
2.
3.
4.
5.
Choose a location for Printer/Charger within five feet (1.5m) of an
electrical outlet.
Position mounting bracket vertically on wall and use as template
to pencil markings for drill holes.
Select correct mounting hardware from two provided:
Sheet metal screws and plastic anchors-for concrete block
or plasterboard, use 0.187 in. (4.75mm) diameter drill. Secure
anchors to wall.
Sheet metal screws only-for metal panel or wood walls, use
0.120 in.
(3.05mm) diameter drill.
Fasten mounting bracket to wall with screws.

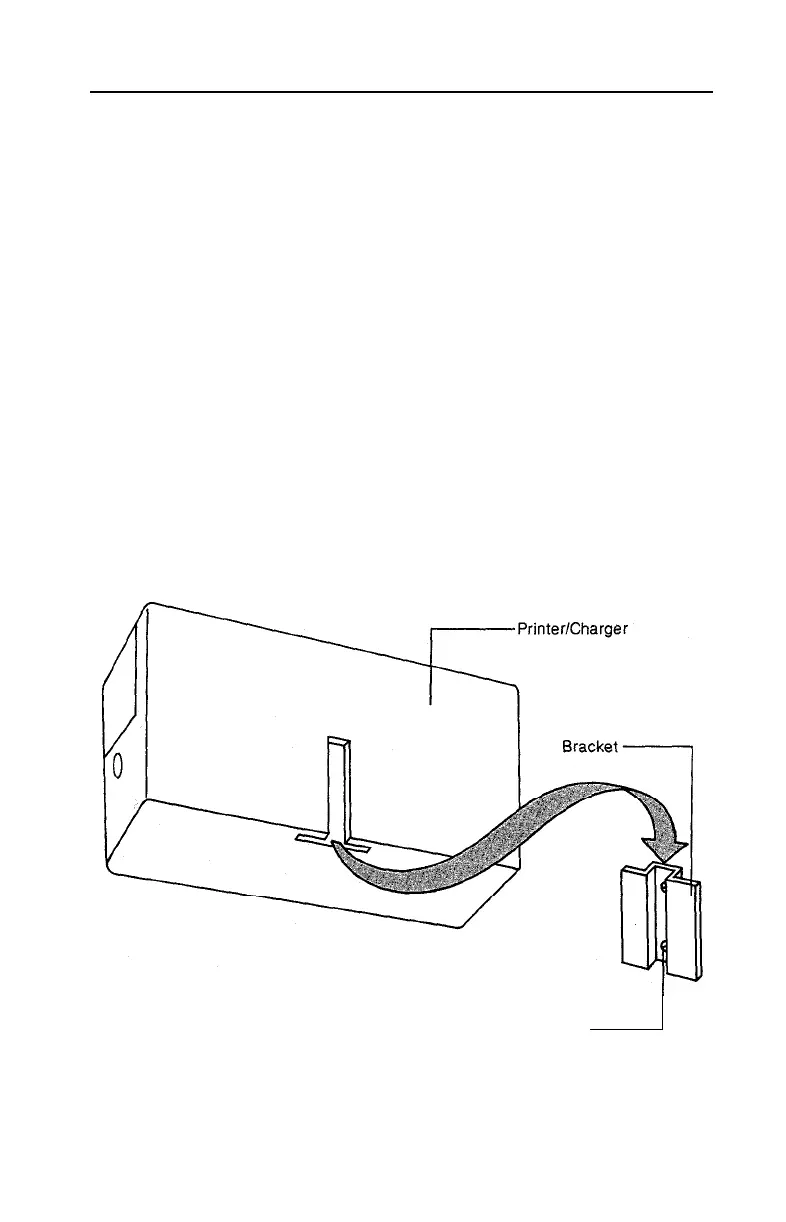

Mount unit by aligning Printer/Charger cut-out with top of bracket.
Push down until seated securely on bracket.
Mounting Screw
21

Welch Allyn MicroTymp Specifications

General

Measurement Method	Infrared
Battery Life	Approximately 1000 measurements
Type	Tympanic (ear) thermometer
Display	LCD
Measurement	Body temperature
Memory	Last reading memory
Battery Type	2 AAA batteries
