Welger AP 53D - Lubrication Chart; Daily Lubrication Points

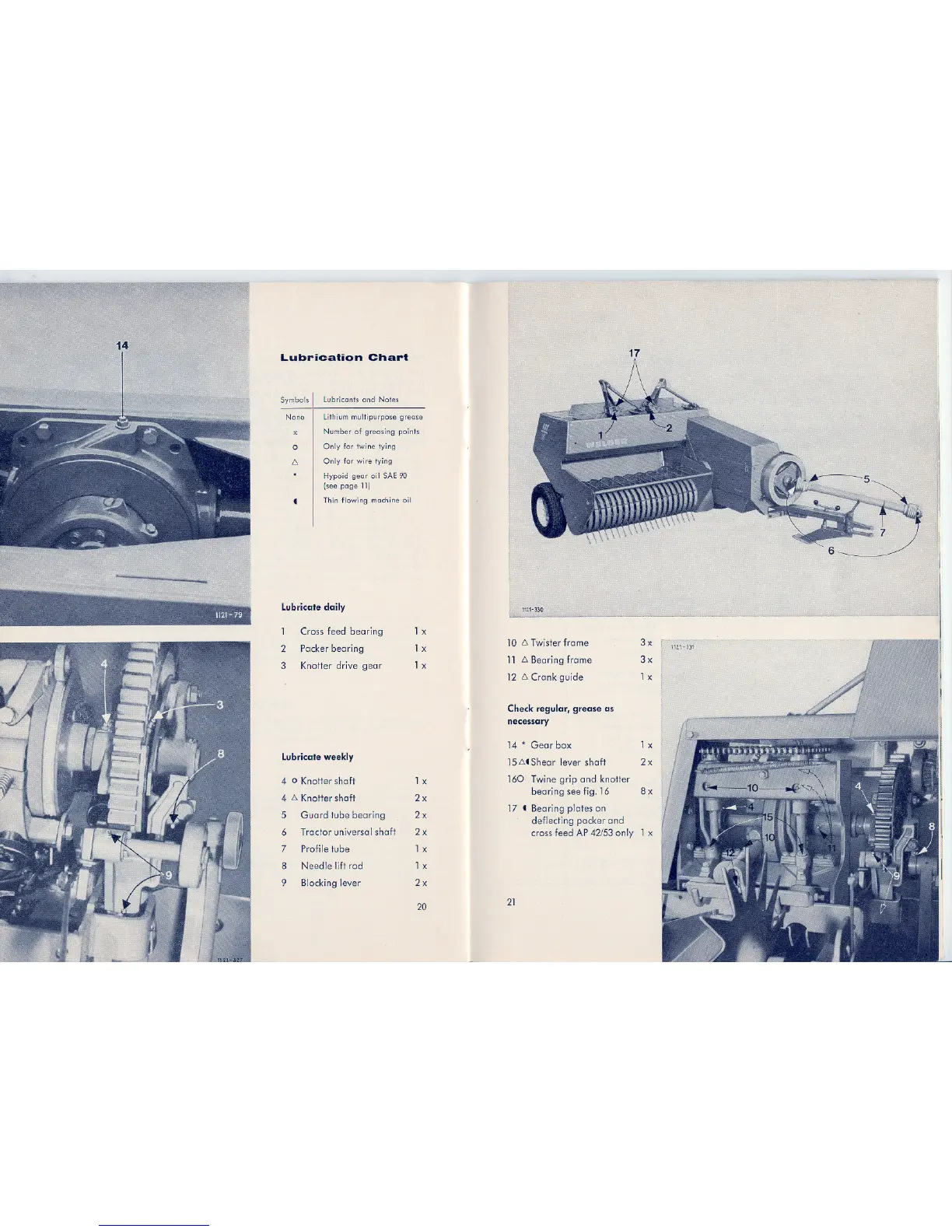

Lubrication Chart
SymbolsI
;
None
Lubricants and Notes
Lithium multipurpose greose
Number of greasing .points
x
0
Only for twine tying
Only for wire tying
,0.
«
Hypoid gear oil SAE90
[see poge 11)
Thin flowing machine oil
10 ,0.Twisterframe
11 ,0.Bearing frame
12 ,0.Crank guide
Check regular, grease as
necessary
14 * Gear box
15,0.«Shear lever shaft
160 Twine grip end knotter
bearing see fig. 16
17
« Bearing plates on
deflecting packer end
cross feed AP42/53 only1x
'"
3~
1x
1x
2x
8x
Lubricate daily
1
Cross feed bearing
1 x
2
Packer bearing
1 x
3
Knotter drive geer
1 x
Lubricate weekly
4 0 Knotter shaft 1x
4 ,0.Knotter shaft
2x
5
Guard tube bearing
2x
6 Tractor universal shaft 2x
7 Profile tube 1 x
8
Needle lift rod
1 x
9
Blocking lever
2x
20
21
