WEMPE 20097 - Design and Function; Design

WEMPE digital main clock 20097
Design and function
12
V3.0 01/2011
4 Design and function
1.1 Design
1.1.1 Front view

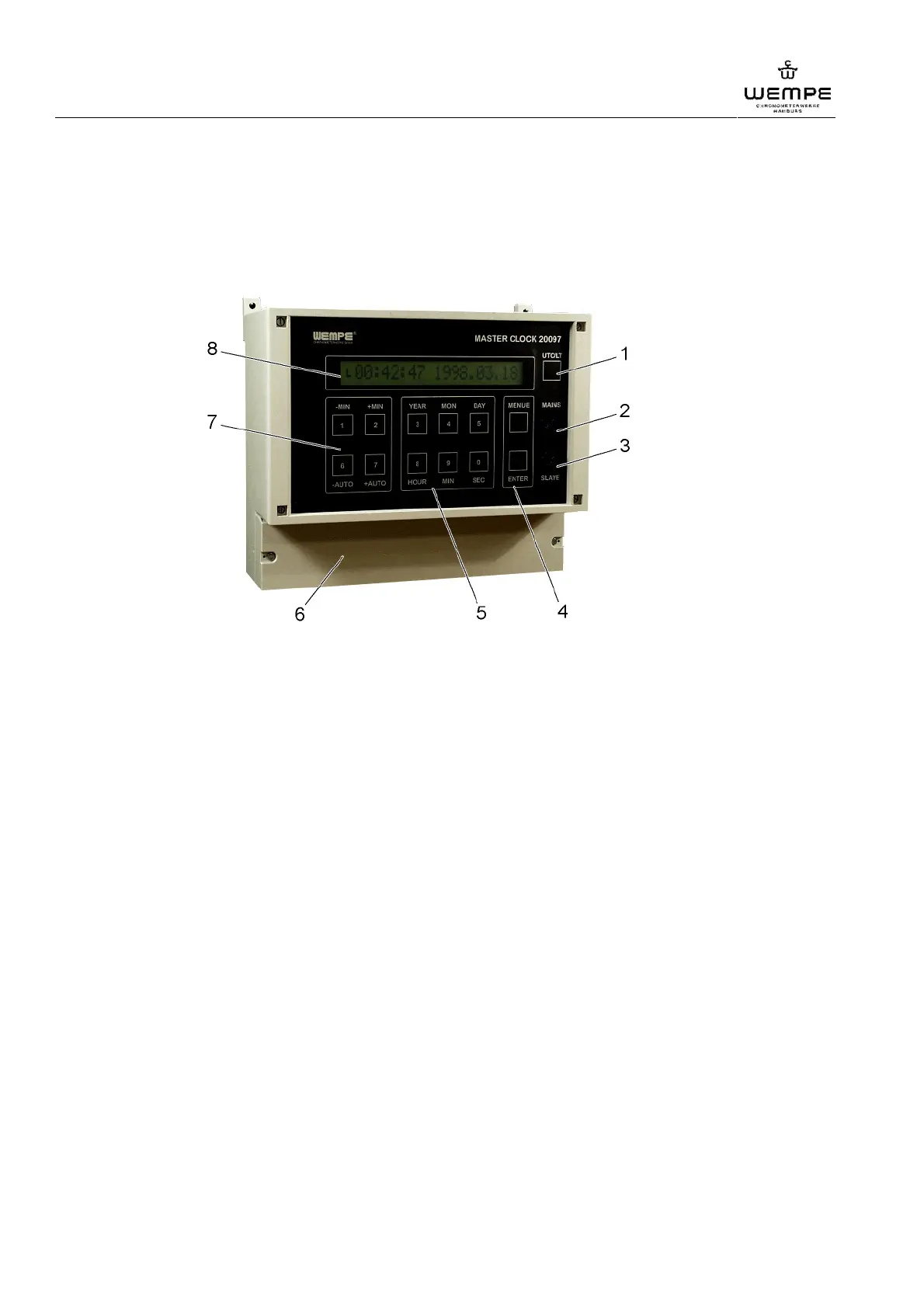

Ill. 1: Front view (wall-mounting case)
1 shift-key coordinated universal time (UTC) / local time (LT)
( see also "operation", "select time display")
2 main fuse ("MAINS") medium blow 1,0 A
for fuse protection of the internal circuit ( see also "accessories")
3 secondary clocks fuse ("SLAVE") medium blow 2,5 A
for fuse protection of the power supply circuit ( see also "accessories")
4 control and confirmation key
to select and confirm menu and setting functions
5 input field for the basic setting
for the basic settings and to adjust the menu and setting functions
6 terminal box
incl. terminal strip and accumulator ( see also "maintenance")
7 input field for setting of time
for gradual setting of time and to adjust the menu and setting functions
8 dimmable display
( see also "operation", "switch on/off, adjust display illumination")
