WEMPE 20097 - Terminal Board of the Extension Cards

WEMPE digital main clock 20097
Annex
38
V3.0 01/2011

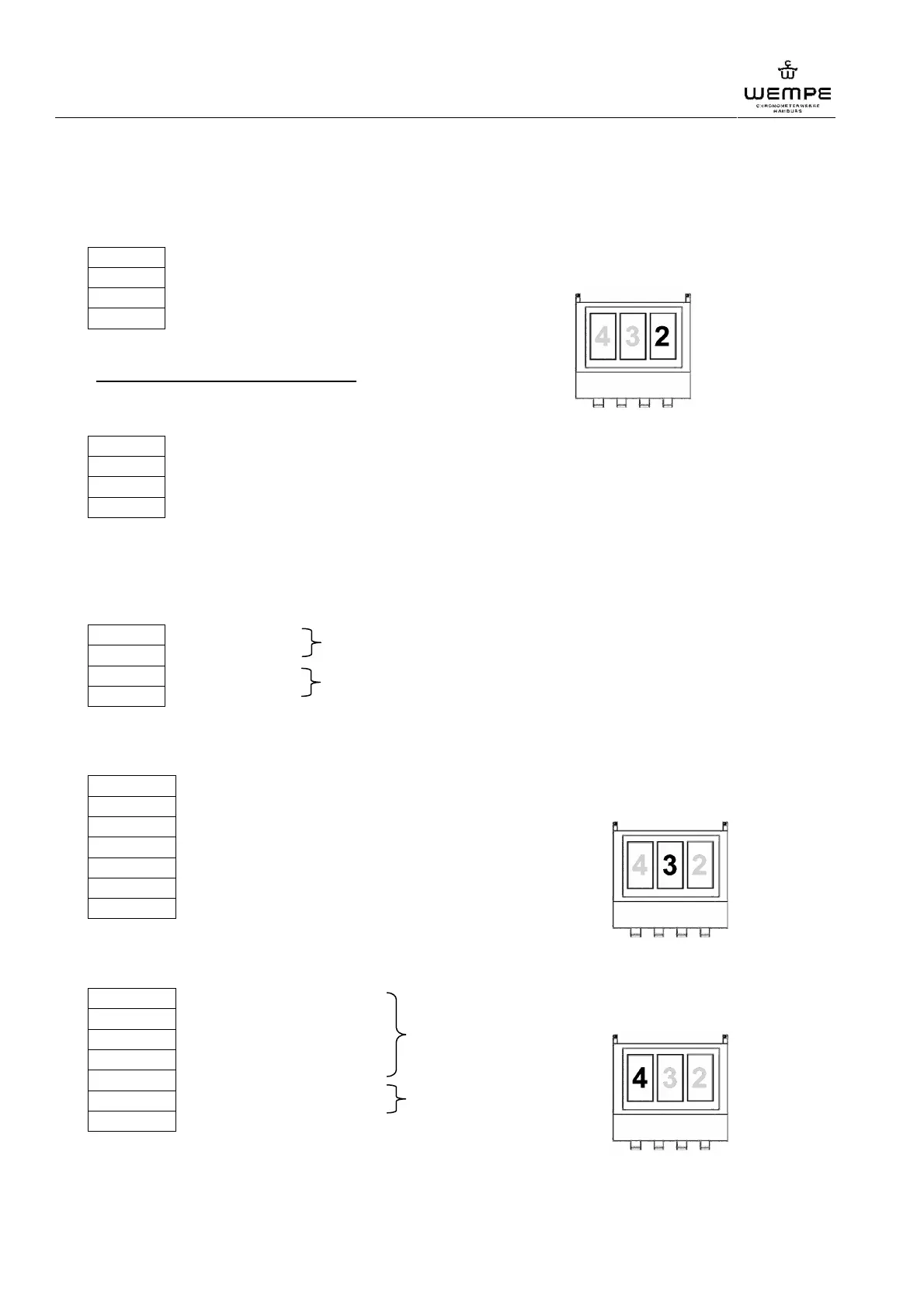

1.1.2 Terminal board of the extension cards
terminal MOBALine secondary clocks – part-no. 605 998 – 2
20
--- Local time line/UTC line depending on settings plug-in socket 2
44
--- Local time line/UTC line depending on settings
19
--- not used
43
--- not used
Alternatives for plug-in socket 2
terminal Analogue-Booster – part-mo. 605 496 - 2
19
--- Analogue-Line 2 – second impulse
20
--- Analogue-Line 2 – second impulse
43
--- Analogue-Line 1 – minute impulse
44
--- Analogue-Line 1 – minute impulse
Klemme Analogue-Booster – part-no. 605 496 - 2
forwards-/backwards running
SEIKO secondary clock systems
19
--- line 1 forwards
20
--- line 1
43
--- line 2 backwards
44
--- line 2
Digital secondary clocks – part-no. 606 198 - 0
11
--- Synchron clock plug-in socket 3
12
--- GND
35
--- Data
36
--- GND
10
--- + 24V DC
34
--- + 24V DC
9
--- 0V DC
Serial interface – part-no. 605 396 - 3
28
--- GND plug-in socket 4
29
--- interface 1 CTS
31
---------------- RS 422 + interface 1
6
---------------- RS 422 -
4
---------------- RS 232
30
--- interface 2 CTS interface 2
5
---------------- RS 232
