WEMPE digital main clock 20097
Annex
V3.0 01/2011
39

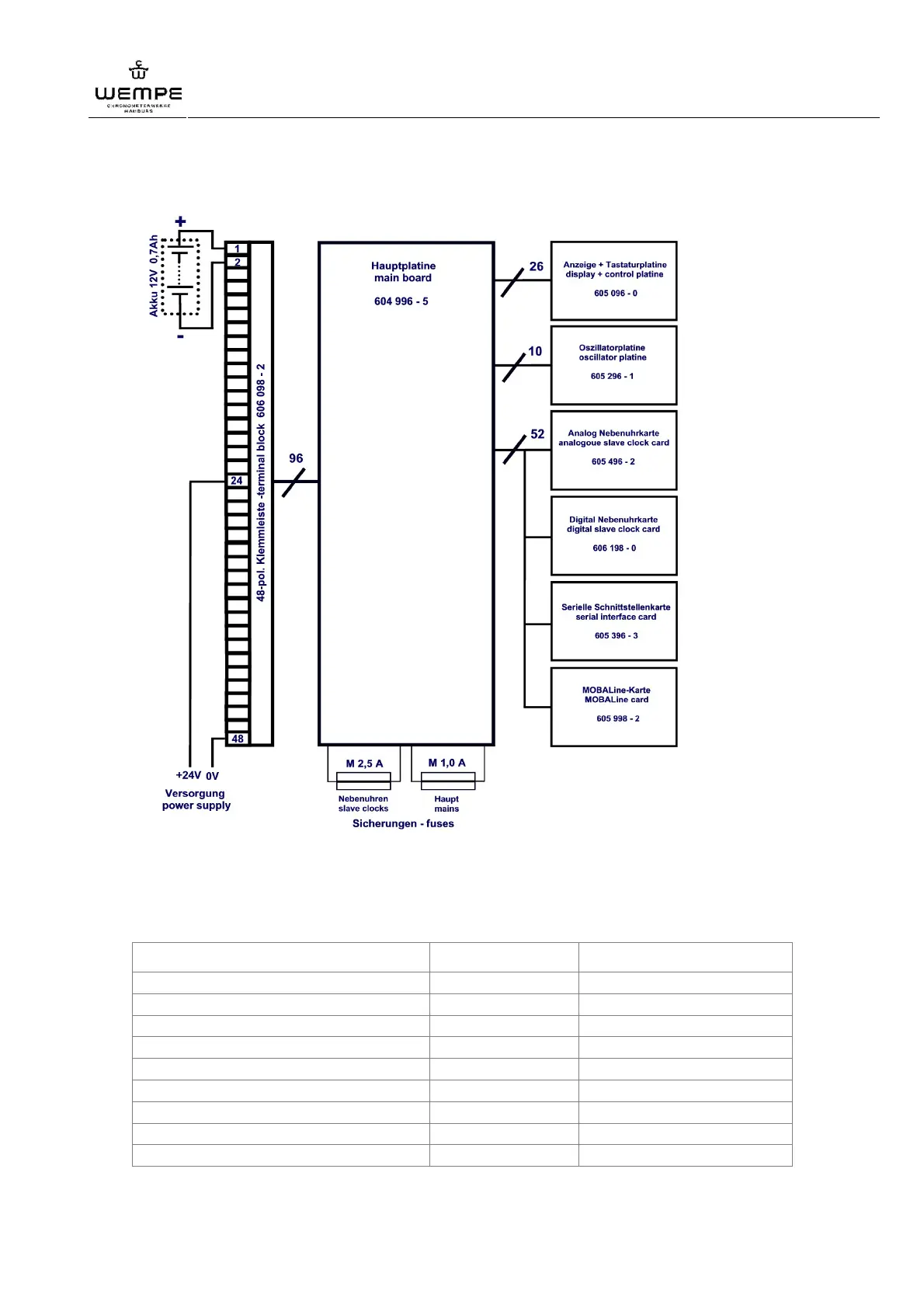

1.2 Block diagram
Ill. 10: Block diagram
Table of components
designation part no. comment
Main board 604 996 - 5
Display + Control board 605 096 - 0
Oscillator board 605 296 - 1
Terminal strip board 606 098 - 2 only wall-mounting version
Terminal strip board 606 098P - 1 only console-mount. vers.
SIO Serial In-OUT board 605 396 - 3 optional
Digital secondary clock out board 606 198 - 0 optional
Analogue slave clock out board 605 496 - 2 optional
MOBALine out board 605 998 - 2 optional
