9
ASSEMBLY
WARNING: Unplug the machine from the power source before assembling or making adjustments.
Failure to comply may cause serious injury. Assembly requires at least two people to safely move around
the bandsaw.

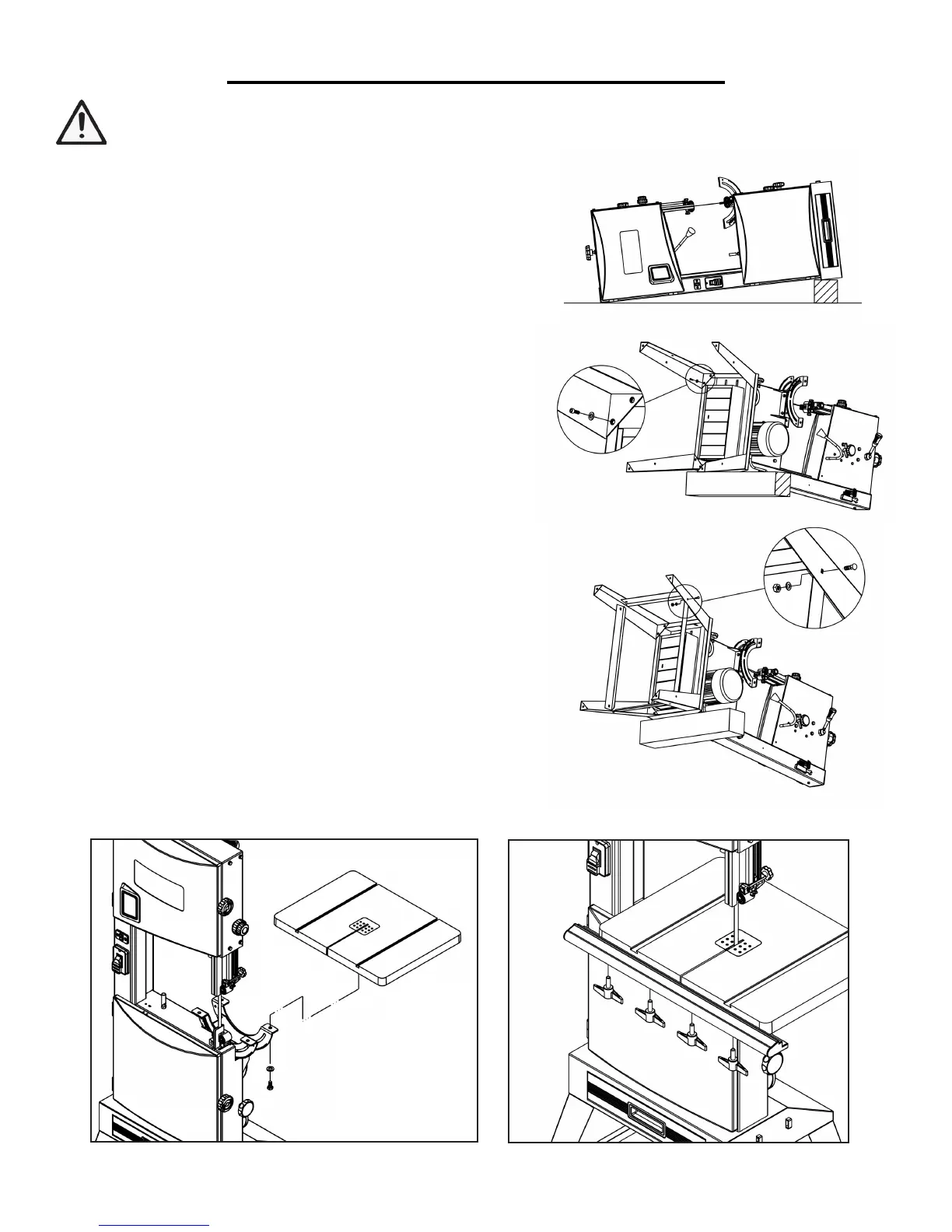

TO ASSEMBLE THE STAND
1. Carefully place the band saw on its back as shown above (Fig.
A), either on the floor or on a workbench. Prop the bottom of
the band saw up on a wooden block in order to have space to
assembly the band saw’s stand.
2. Attach legs to saw body using M8x12 socket head bolts and
8mm flat washers (Fig B).
3. Fix the short braces and the long braces by using M6x12
carriage bolts, 6mm flat washers and M6 hex nuts. DO NOT
TIGHTEN THE NUTS (Fig C).
4. Place the band saw upright and tighten all nuts. Make sure
there is no wobbling or tilting in the stand after fully tightening
the nuts.
Fig. A
Fig. B
Fig. C
TO ASSEMBLE THE TABLE
1. After attaching the stand, assemble the table to the bandsaw
by using M8x10 socket head bolts and 8mm flat washers (Fig
D).
2. Make sure the saw blade is in the center of the table insert
slot.
3. Install the guide rail, securing it with the four knobs to the
table (Fig. E).
Fig. D
Fig. E
