ASSEMBLY & ADJUSTMENTS
Before using the spindle sander, you must configure the machine by instaling the appropriate sanding drum,
sanding sleeve, throat plate and spindle washer for your operation. Check your packing list against the dia-
gram below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F
8-5 CST or email us at techsupport@wenproducts.com.
Rubber Sanding Drums (4)
80-Grit Sanding Sleeves (5)
Bevel Sanding Throat Plates (5)
Spindle Upper Washers (5)
Horizontal Sanding Throat Plates (5)
(13 mm)
1/2"/ .5"
(19 mm)
3/4"/ .75"
(26 mm)
1"
(38 mm)
1-1/2"/ 1.5"
(51 mm)
2"
Spindle with
Lock Nut
Spindle Wrenches (2)
14/20 mm
Spindle Nut
Wrench

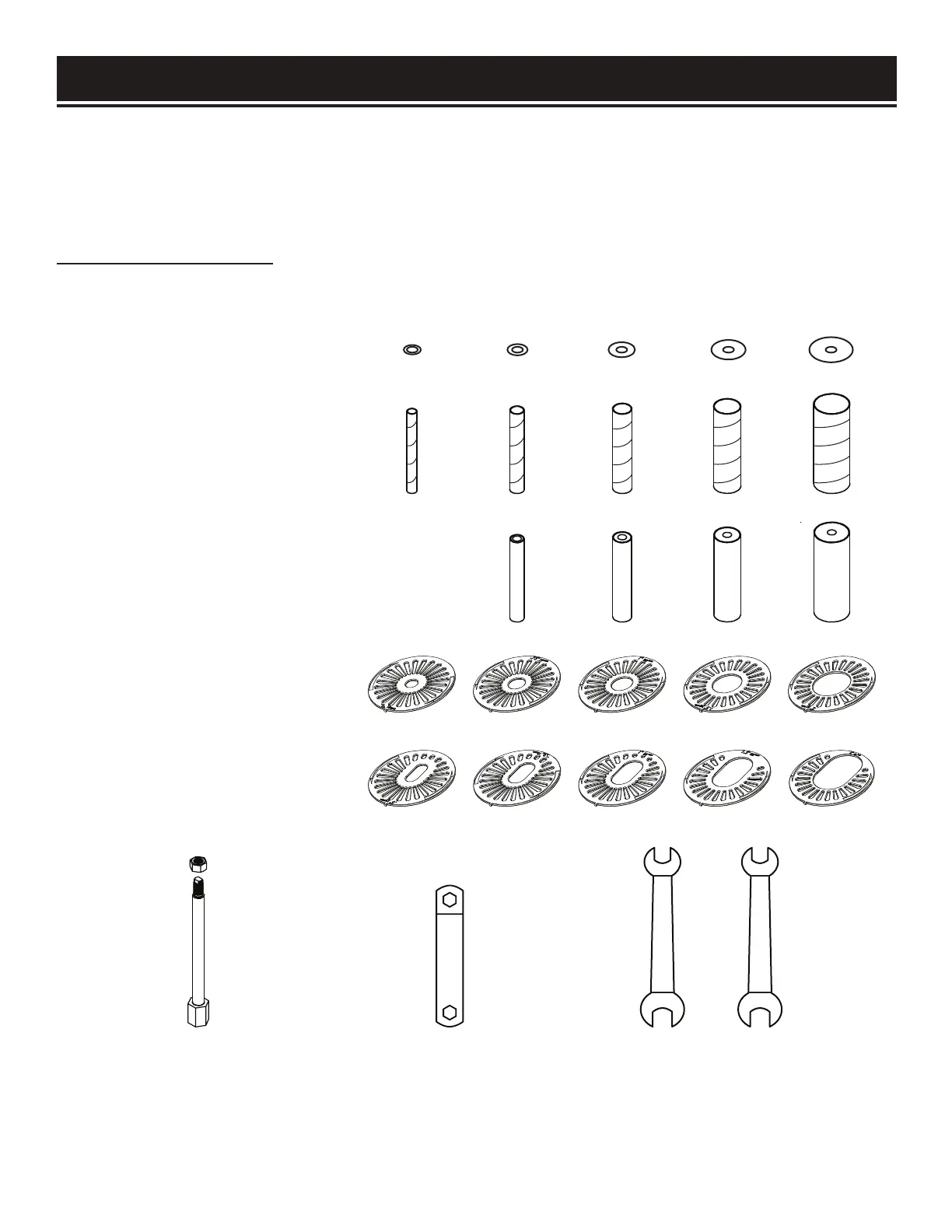

PACKING LIST
Sanding sleeves of various grits can be purchased from wenproducts.com
by searching your sander's model number AT6535.
10
