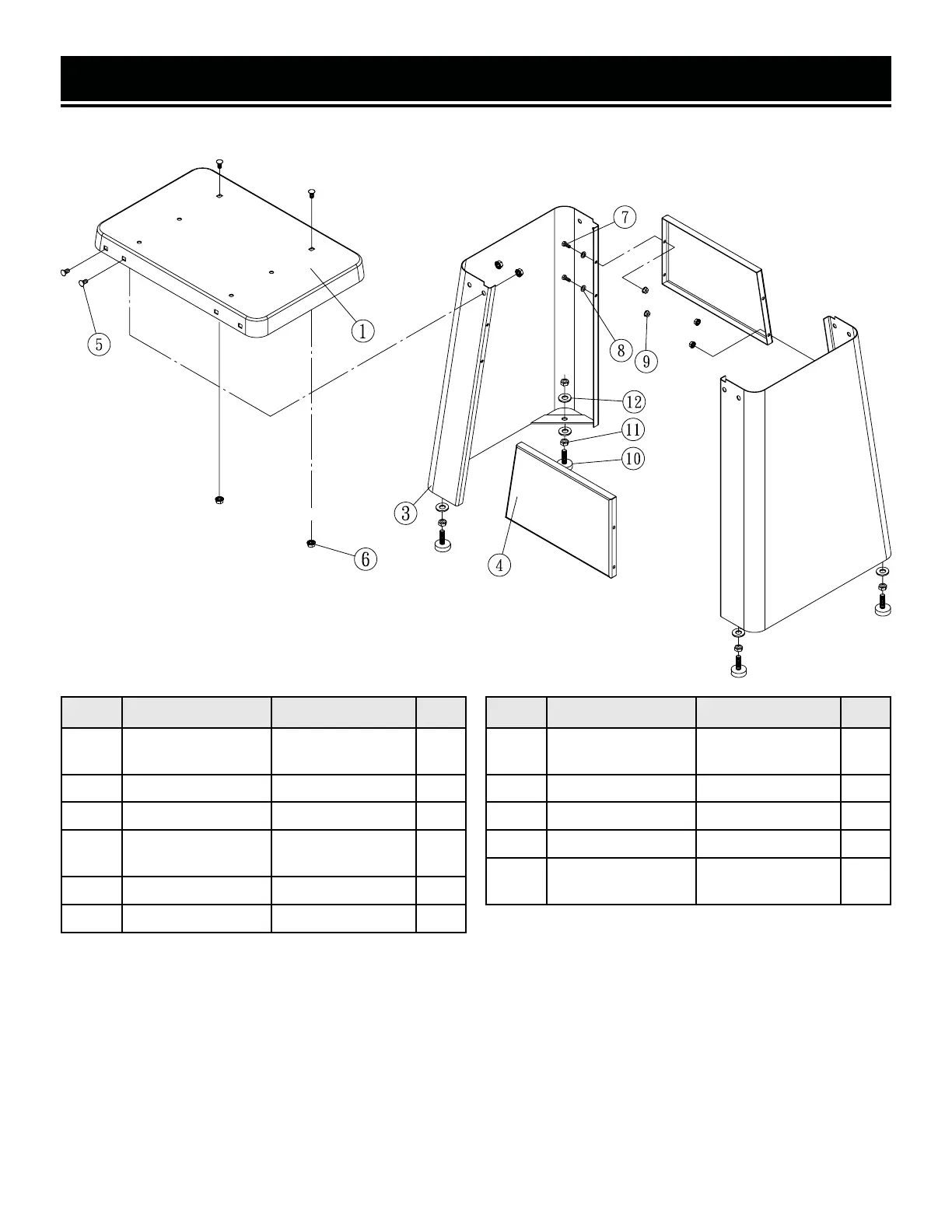

EXPLODED VIEW & PARTS LIST
STAND
No. Part No. Description Qty.
1 BA1411-2001
Top Panel with
Cross Braces
1
3 BA1411-2003 Large Side Panel 2
4 BA1411-2004 Small Side Panel 2
5 BA1411-2005
Carriage Bolt,
M8x16
10
6 BA1411-2006 Flanged Nut, M8 10
7 BA1411-2007 Hex Bolt, M6x16 8
No. Part No. Description Qty.
8 BA1411-2008
Flat Washer, 6mm
x 13
8
9 BA1411-2009 Flanged Nut, M6 8
10 BA1411-2010 Foot 4
11 BA1411-2011 Nut, 3/8"-16 UNC 8
12 BA1411-2012
Flat Washer, 10mm
x 20
8
26
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
