ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.

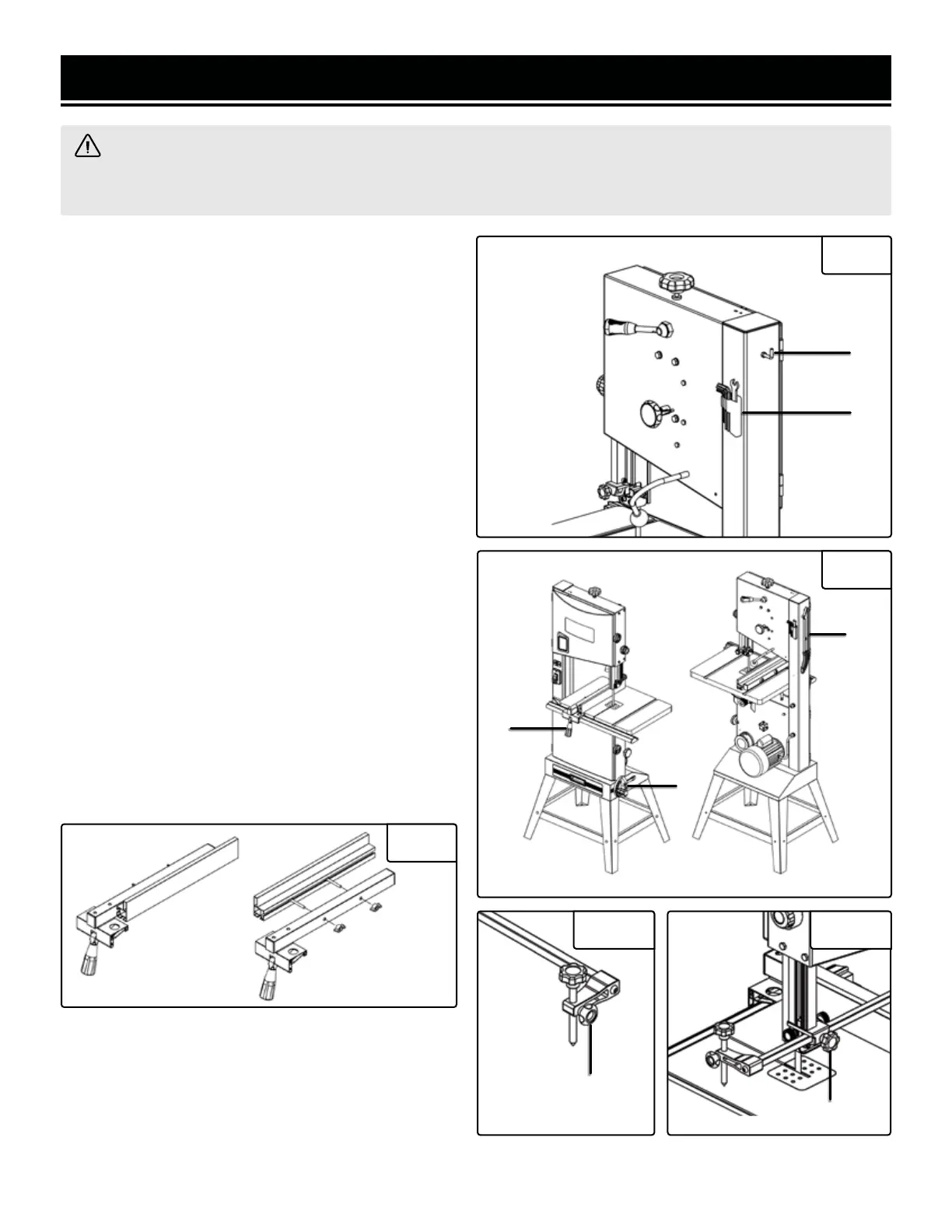

INSTALLING THE ACCESSORY TOOLS
1. Install the accessory tools assembly to the frame by
using M4x10 socket heat bolts (Fig. 7 - 1).
2. Secure the hook with a hex nut to the frame (Fig.
7 - 2).
3. Set the rip fence onto the table. Lock it in place with
the Fence Lock (Fig. 8 - 1).
NOTE: To reverse the rip fence, remove the fence from
the rip fence by loosening the four bolts holding it to
the rip fence, reversing the fence, and reattaching the
bolts. (Fig. 9)
4. Set the miter gauge into the onboard storage along
the base of the bandsaw (Fig. 8 - 2).
5. Set the push stick on the hook (Fig. 8 - 3, Fig. 7 - 2).
INSTALLING THE CIRCLE CUTTING GUIDE
1. Insert the center pin into the hole of the sliding
bracket. Fix it with Lock Knob A. This center pin will
serve as the pivot point for making circular cuts (Fig.
10).
2. Fix the sliding bar into the bearing bracket of the up-
per guard assembly. Slide it into the desired position
and secure it with tightening Lock Knob B (Fig. 11).
Fig. 7
Fig. 8
Fig. 9
Fig. 10 Fig. 11
2
1
1
2
3
Lock Knob A
Lock Knob B
