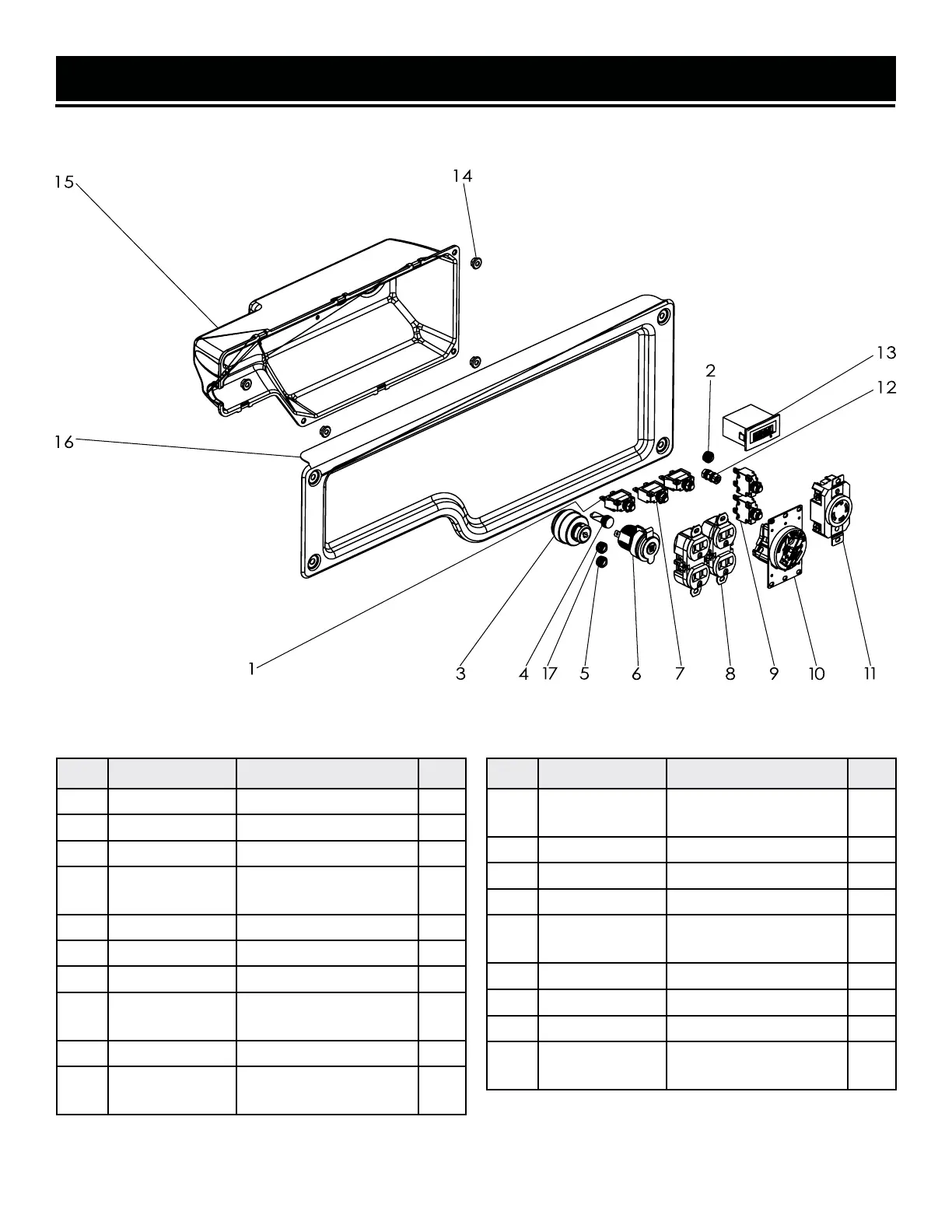

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 GN9500-301 DC Breaker, 10A 1
2 GN9500X-302 CO Sensor LED 1
3 GN9500-303 Engine Switch 1
4 GN9500-304
Remote Start Pairing
Light
1
5 GN9500-302 Remote Reset Button 1
6 GN9500-306 DC 12V Outlet 1
7 GN9500-307 AC Breaker, 20A 2
8 GN9500-308
AC 120V NEMA 5-20R
duplex Outlet
2
9 GN9500-309 AC Breaker, 30A 2
10 GN9500-310
AC 120V NEMA
TT-30R RV Outlet
1
NO. PART NO. DESCRIPTION QTY.
11 GN9500-311
AC 120V/240V NEMA
L14-30R Outlet
1
12 GN9500-312 Grounding Nut 1
13 GN9500-313 Multi-meter 1
14 GN9500-314 Nut, M6 4
15 GN9500-315
Control Panel Rear
Cover
1
16 GN9500-316 Control Panel Base 1
17 GN9500-302 Remote Reset Button 1
N.P. GN9500-303.1 Engine Switch Key 1
N.P. GN9500-317
Remote Start Receiver
Module
1
