ADJUSTING THE MITER ANGLE
The miter table can be adjusted from 0° to 49° to the left
and 0° to 45° to the right to create miter cuts.

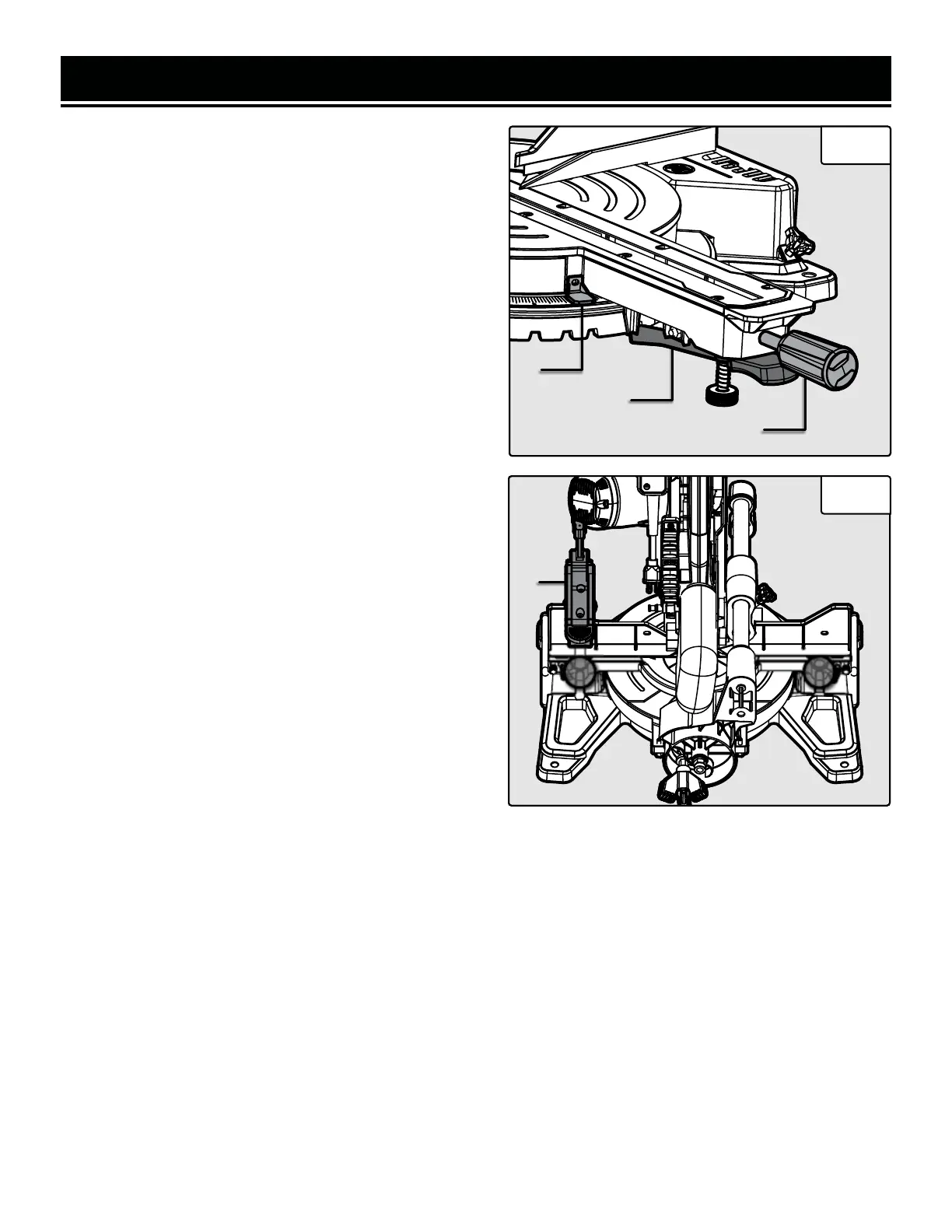

1. Loosen the miter lock knob (Fig. 4 - 1) by turning it one
or two turns counterclockwise.
2. Pull up on the miter angle adjustment lever (Fig. 4 - 2) to
unlock the table. While holding the miter angle adjustment
lever up, adjust the table to the desired angle. The miter
scale indicator (Fig. 4 - 3) will point towards the selected
angle. To make micro adjustments to a specific angle, ro-
tate the table while pulling up on the miter stop lever. The
miter table has positive stops at 0º, 15º, 22.5º, 31.6º, and
45º in both directions for quick adjustments.
3. After selecting your miter angle, release the miter stop
lever and tighten the miter lock knob (Fig. 4 - 1) by turning
it clockwise to lock the table in place.
WARNING! Be sure the miter table is locked in place before
making a cut. Failure to do so can cause the table to move
during the cut, which could result in serious personal in-
jury.
INSTALLING THE CLAMP ASSEMBLY
The clamp comes pre-assembled and can be mounted on
the left or right side of the saw depending on the cutting
task at hand.
1. Locate the hole for the clamp on the left or right side of
the miter saw behind the fence (Fig. 5 - Circles). Insert the
clamp assembly (Fig. 5 - 1) into the hole on the desired
side.
2. Secure the clamp into place by tightening the clamp lock
knob.
NOTE: Check that the clamp won’t interfere with the blade
travel before operating the saw.
ASSEMBLY & ADJUSTMENTS
Fig. 4
Fig. 5
3
2
1
1
14
