REPLACING THE BLADE
1. Remove the blade guard.
2. Lower the saw blade using the height adjustment wheel
and remove the table insert. See "REMOVING & REPLAC-
ING THE TABLE INSERT" section on page 11.
3. Make sure the bevel locking lever is locked.
4. Raise the saw blade to full height using the height adjust-
ment wheel.
5. Using one of the hex wrenches, clamp it over the blade
washer. Using the other hex wrench, clamp it over the
blade nut.
6. Firmly grip both of the hex wrenches and loosen the blade
washer and nut by rotating the wrenches in opposite direc-
tions at the same time. The wrench on the washer should
be rotated clockwise and the wrench on the nut should be
rotated counterclockwise (Fig. 6).
7. Unlock the release locking lever and remove the blade.
INSTALLING A STANDARD BLADE
1. Place the new blade on the arbor shaft.
IMPORTANT! The teeth must be pointing down towards the
front of the saw to work properly.
2. Place the blade washer and the blade nut over the arbor
shaft (Fig. 7). Make sure that the dome side of the blade
washer faces the blade and that everything is snug against
the arbor housing. Make sure that the blade nut is securely
tightened. Be sure not to over-tighten the blade nut.
3. Rotate the blade by hand to make sure it turns freely.
4. Lower the saw blade using the height adjustment wheel
and reinstall the table insert. See "REMOVING & REPLAC-
ING THE TABLE INSERT" section on page 11.
INSTALLING THE DUST PORT ADAPTOR
1. Fit the dust port adaptor over the dust port on the back
of the table saw.
2. Secure the dust port adapter in place by screwing it into
the notch on the dust port (Fig. 8).
Once you have completed all of the assembly instruc-
tions, you are ready to operate your saw.
ASSEMBLY & ADJUSTMENTS

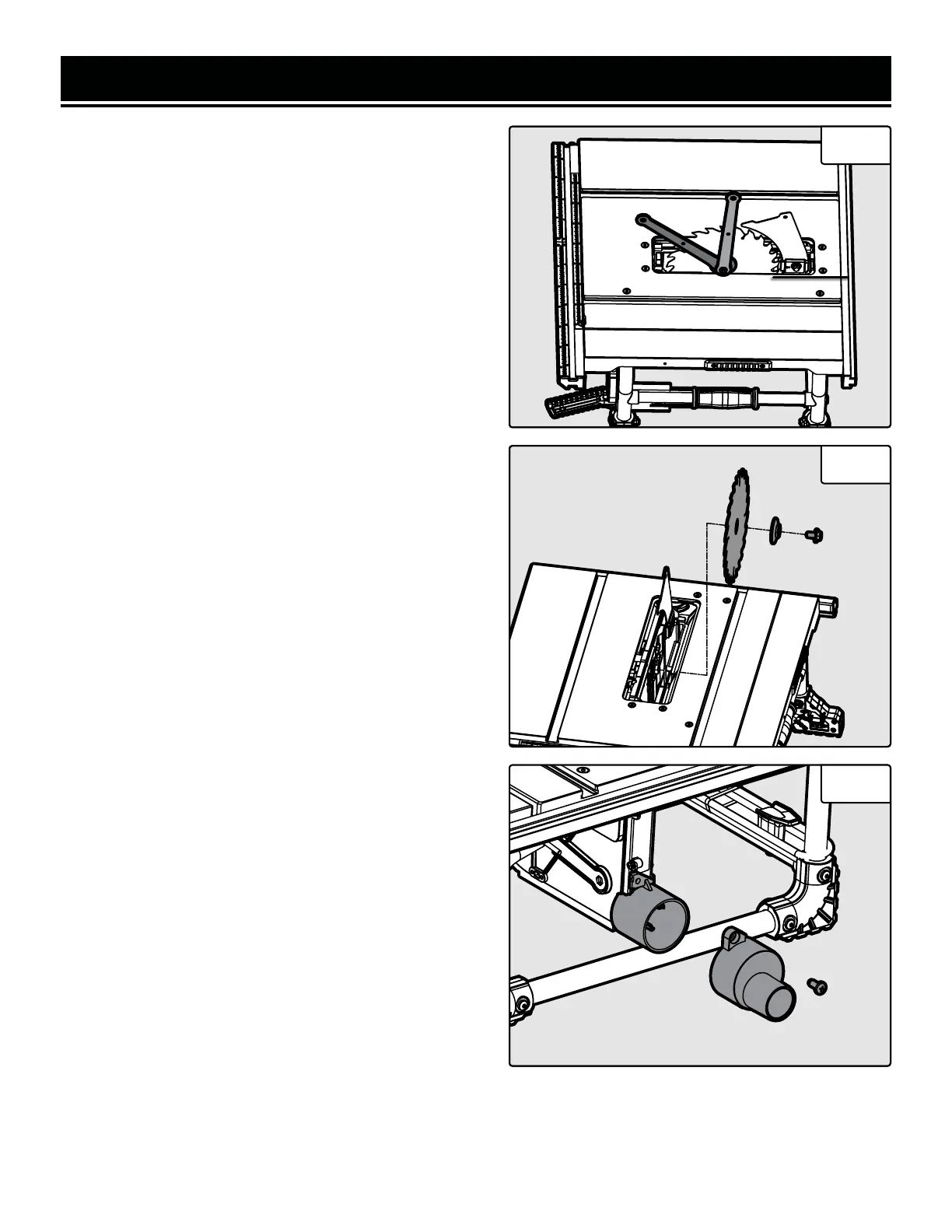

Fig. 6
