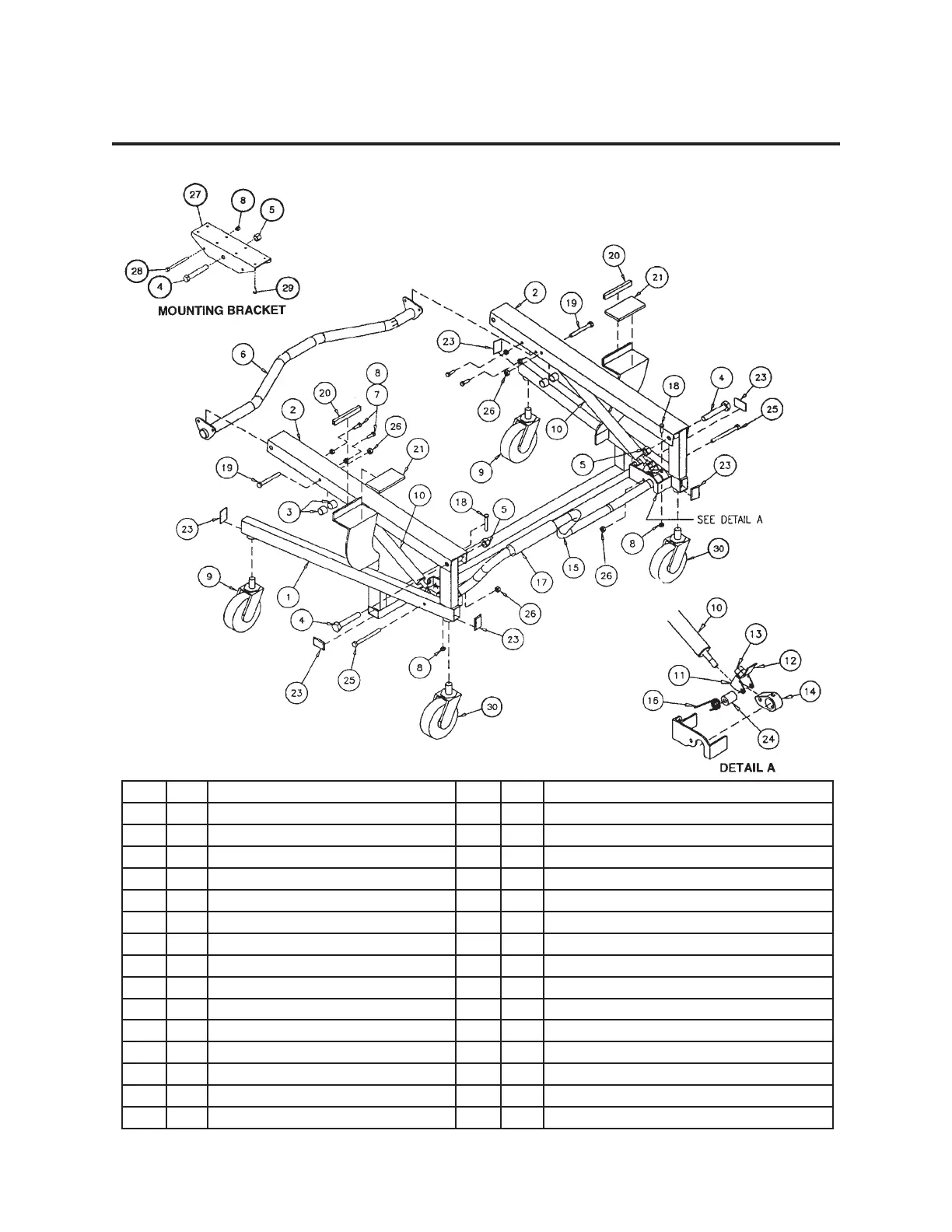

REPLACEMENT PARTS LIST (CONTINUED)
P
LATFORM CART
Item Qty Description Item Qty Description
1 1
Cart Weldment
16 2
Spring, torsion
2 2
Arm, swing
17 1
Sleeve, foam
3 4
Spacer, short
18 2
Capscrew, 1/4 - 20 x 1-3/4"
4 2
Capscrew, 1/2 - 13 x 3"
19 2
Capscrew, 5/16 - 18 x 3-3/4"
5 2
Nut, lock, 1/2 - 13
20 2
U-channel, extruded rubber
6 1
Crosstube Weldment
21 2
Pad, rubber, saddle
7 4
Capscrew, 1/4 - 20 x 3/4"
23 6
Plug, plastic, 1" x 1-1/2"
8 6
Nut, lock, 1/4 - 20
24 2
Bushing, nylon
9 2
Caster, swivel, 4" dia.
25 2
Capscrew, 5/16 - 18 x 3-1/2"
10 2
Spring, gas, locking
26 4
Nut, lock, 5/16 - 18
11 2
Clevis, gas spring
27 2
Bracket, channel
12 2
Plate, pivot, gas spring
28 2
Capscrew, 1/4 - 20 x 3"
13 4
Nut, hex, M10 x 1
29 16
Screw, Phillips pan-head, #10 x 3/4"
14 2
Cam, pedal bar
30 2
Caster, braked, 4" dia.
15 1
Tube, pedal
