WEST 8800 - 3.9 Operating structure

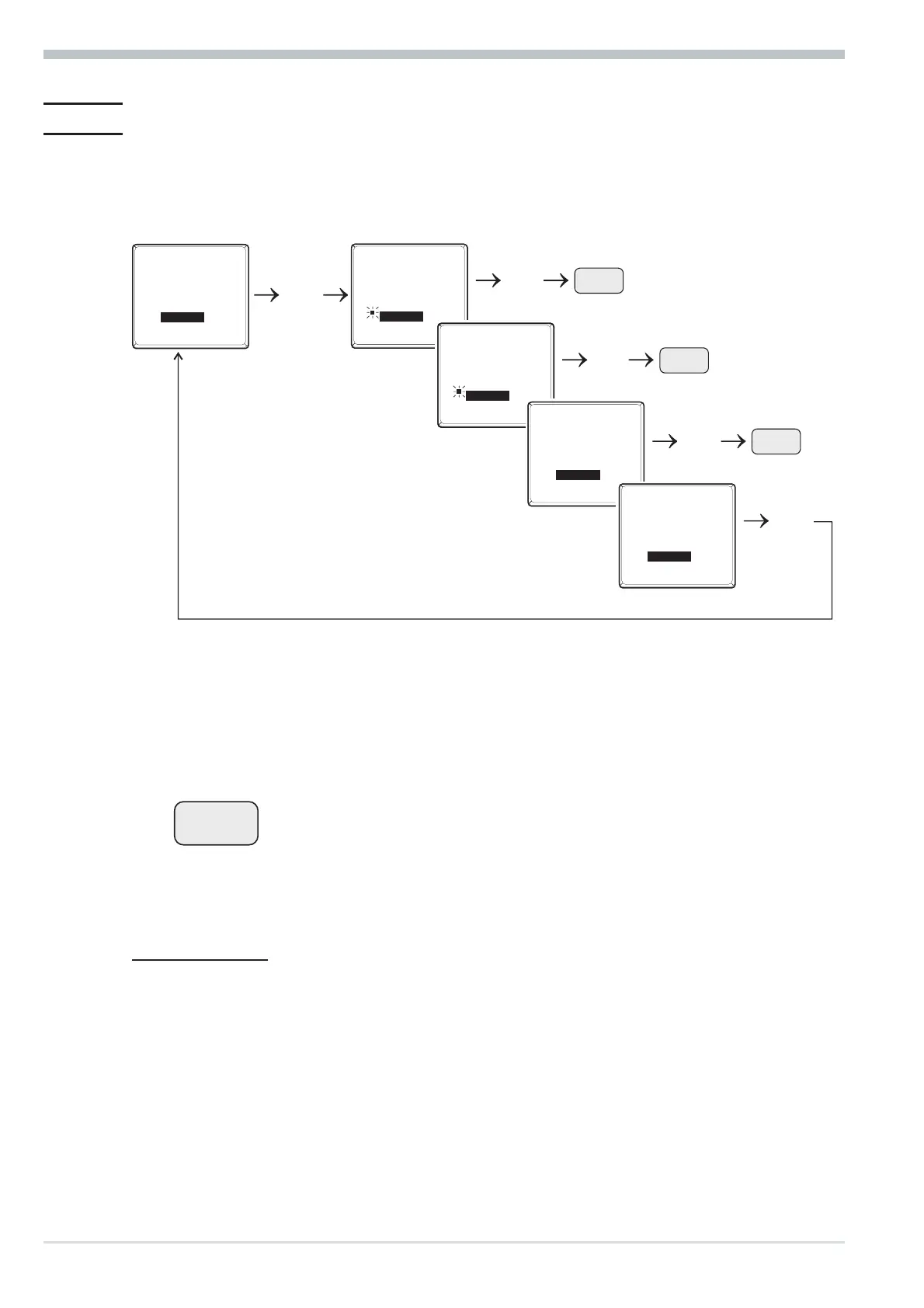

3.9 Operating structure
After supply voltage switch-on, the controller starts with the operating levels.
The controller status is as before power off.
g
PArA - level: At PArA - level, the right decimal point of the bottom
display line is lit continuously.
g
ConF - level: At ConF - level, the right decimal point of bottom
display line blinks
.
When safety switch Loc is open, only the levels enabled by
means of 8800/8840 configurator (engineering tool) are visible
and accessible by entry of the password also adjusted by means
of 8800/8840 configurator (engineering tool). Individual parameters accessible
without password must be copied to the extended operating level.
g
Factory setting:Safety switch Loc closed: all levels accessible without
restriction, password PASS = OFF.
g
All levels locked with a password are locked only if safety switch Loc is closed.
Operation
Operating structure 28 8800 process controller
Ù
Ù
Ù
Ù
Ù
Ì
Ì
Ì
3 sec.
PASS
1200
1199
PArA
1199
para
ConF
1199
para
CAL
1199
End
1199
PASS
PASS
PASS
