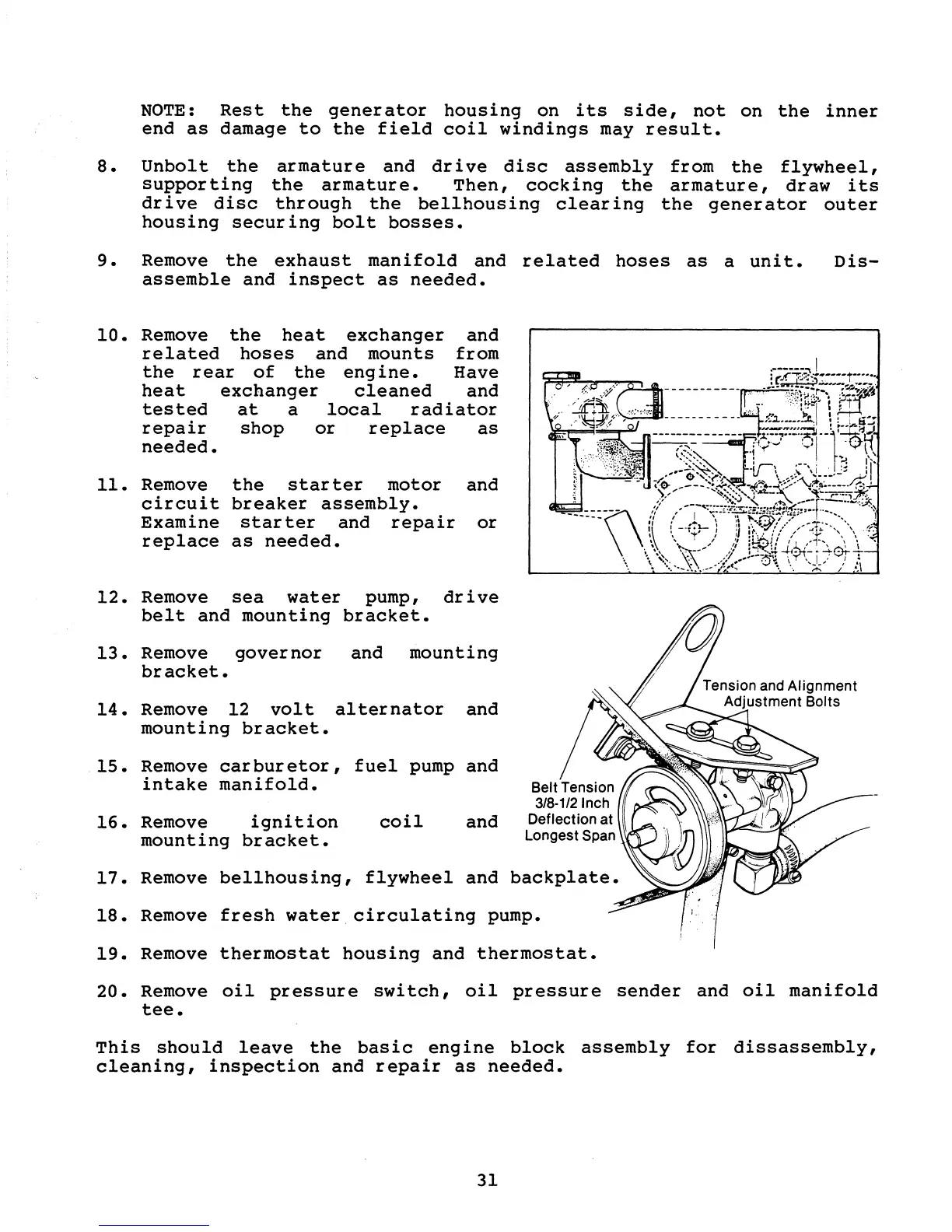

NOTE: Rest the generator housing on its side, not on the inner
end as damage to the field coil windings may result.
S. Unbolt the armature and drive disc assembly from the flywheel,
supporting the armature. Then, cocking the armature, draw its
drive disc through the bellhousing clearing the generator outer
housing securing bolt bosses.
9. Remove the exhaust manifold and related hoses as a unit.
assemble and inspect as needed.
10. Remove the heat exchanger and
related hoses and mounts from
the rear of the eng ine. Have
heat exchanger cleaned and
tested at a local radiator
repair shop or replace as
needed.
11.
Remove
circuit
Examine
replace
the starter motor and
breaker assembly.
starter and repair or
as needed.
12. Remove sea water pump, drive
belt and mounting bracket.
13. Remove governor and mounting
bracket.
14. Remove 12 volt alternator and
mounting bracket •
.
15. Remove carburetor, fuel pump and
intake manifold.
16. Remove ignition coil and
mounting bracket.
17. Remove bellhousing, flywheel and
Belt Tension
3/8-1/2 Inch
Deflection
at
Longest
Span
IS. Remove fresh water circulating pump.
19. Remove thermostat housing and thermostat.
Dis-
20. Remove oil pressure switch, oil pressure sender and oil manifold
tee.
This should leave the basic engine block assembly for dissassembly,
cleaning, inspection and repair as needed.
31
