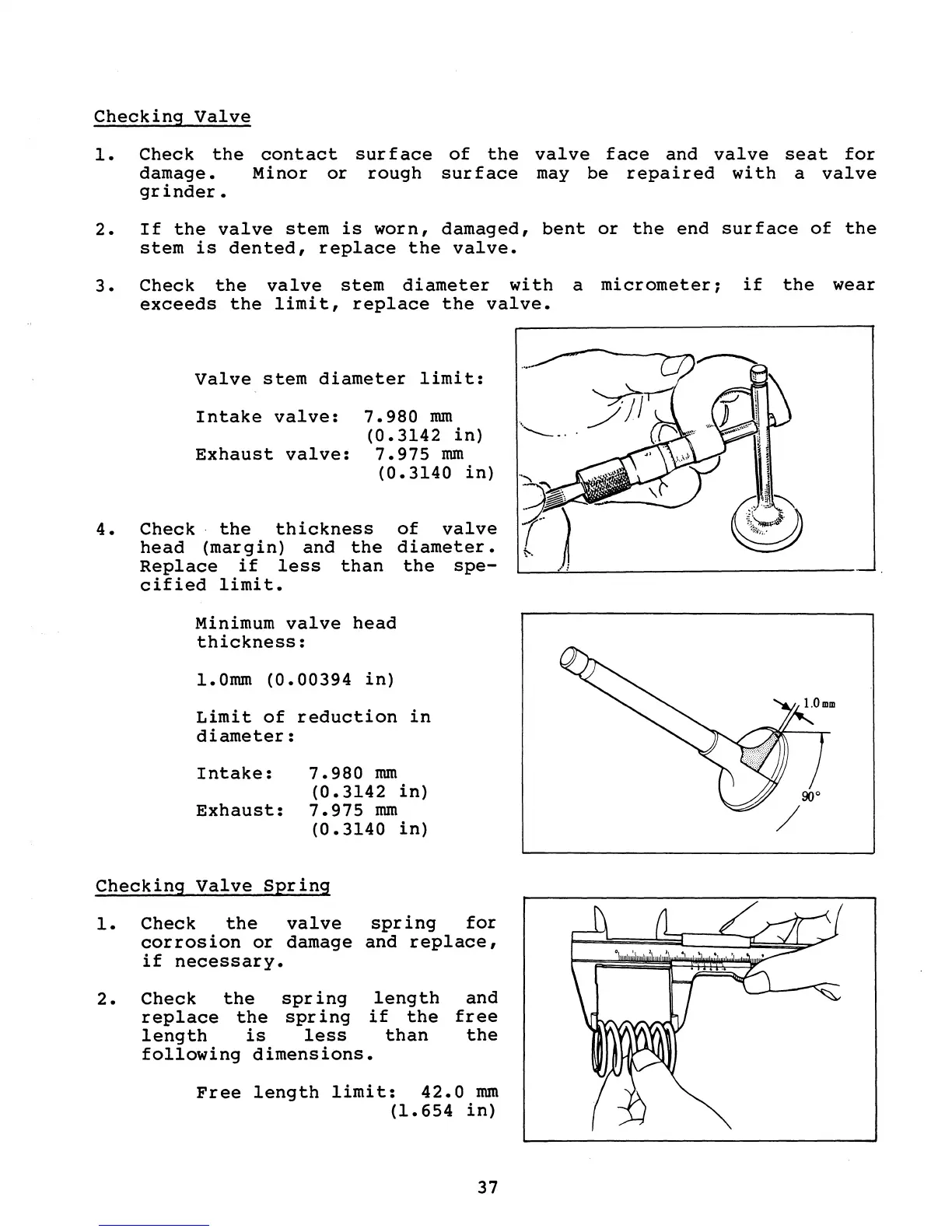

Checking Valve
1. Check the contact surface of the valve face and valve seat for
damage. Minor or rough surface may be repaired with a valve
grinder.
2. If the valve stem is worn, damaged, bent or the end surface of the
stem is dented, replace the valve.
3. Check the valve stem diameter with a micrometer; if the wear
exceeds the limit, replace the valve.
4.
Valve stem diameter limit:
Intake valve: 7.980 mm
(0.3142 in)
Exhaust valve: 7.975 mm
(0.3140 in)
Check· the thickness
head (margin) and the
Replace if less than
cified limit.
Minimum valve head
thickness:
1.Omm (0.00394 in)
of valve
diameter.
the spe-
Limit of reduction in
diameter:
Intake: 7.980 mm
(0.3142 in)
Exhaust: 7.975 mm
(0.3140 in)
Checking Valve Spring
1. Check the valve spring for
corrosion or damage and replace,
if necessary.
2. Check the spr ing length and
replace the spr ing if the free
length is less than the
following dimensions.
Free length limit: 42.0 mm
(1.654 in)
37
