Westerbeke 7.0 BCG - Wiring Diagram (60 Hz)

BCA GENERATOR (60 HERTZ ONLY)
D
0
0
1
0
5
0
4
0
2
0
ACTERMINAL BLOCK
A. ROTATING FIELD/AUXILIARY WINDINGS
WITH DIODES.
B. MAIN STATOR WINDINGS.
C. EXCITER WINDINGS AND CAPACITOR(S).
D. DC BATTERY CHARGING CIRCUIT WITH
BRIDGE RECTIFIER AND INTEGRAL
CONTROLLER.

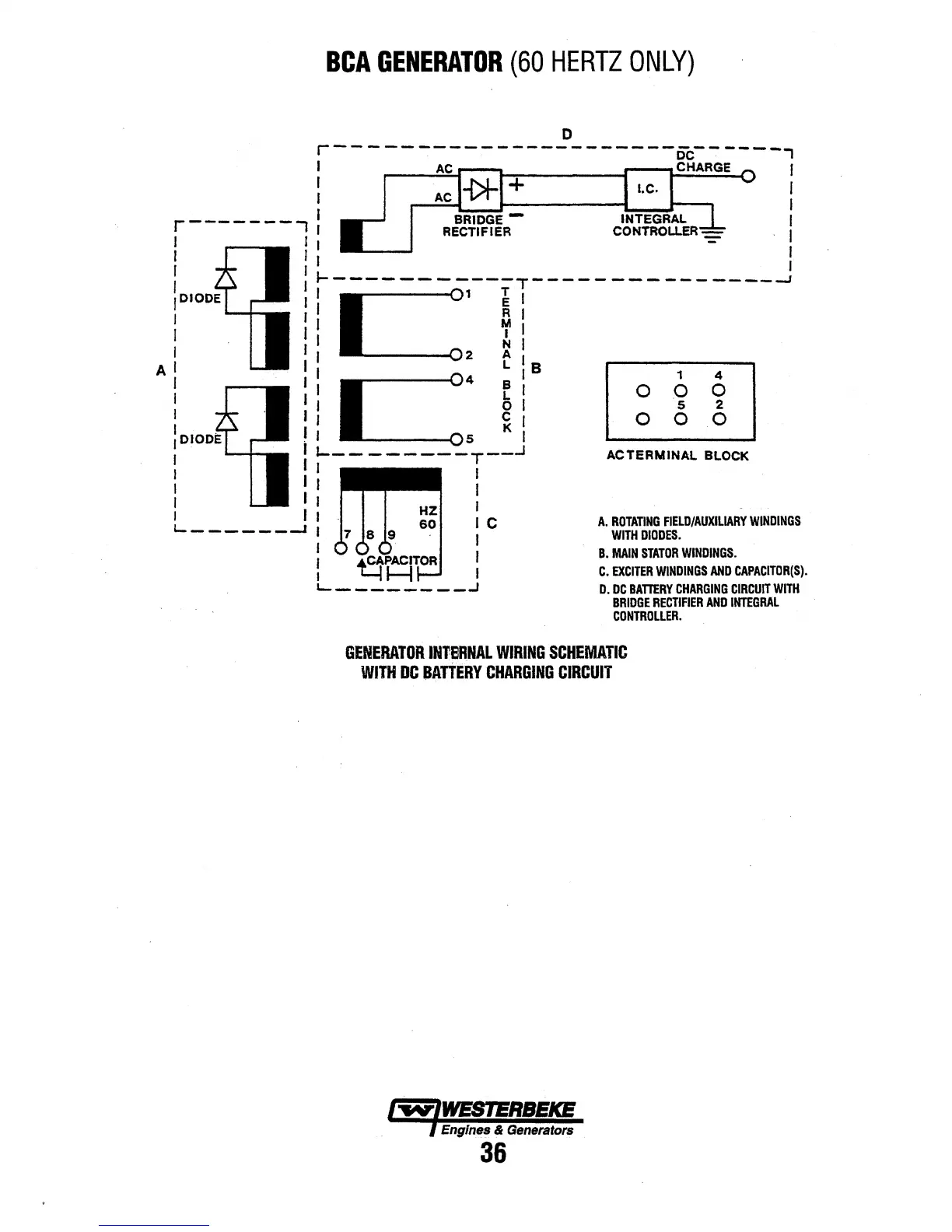

GENERATOR INTERNAL WIRING SCHEMATIC
WITH DC BATTERY CHARGING CIRCUIT
lwlWESTERBEKE
) Engines & Generators
36
