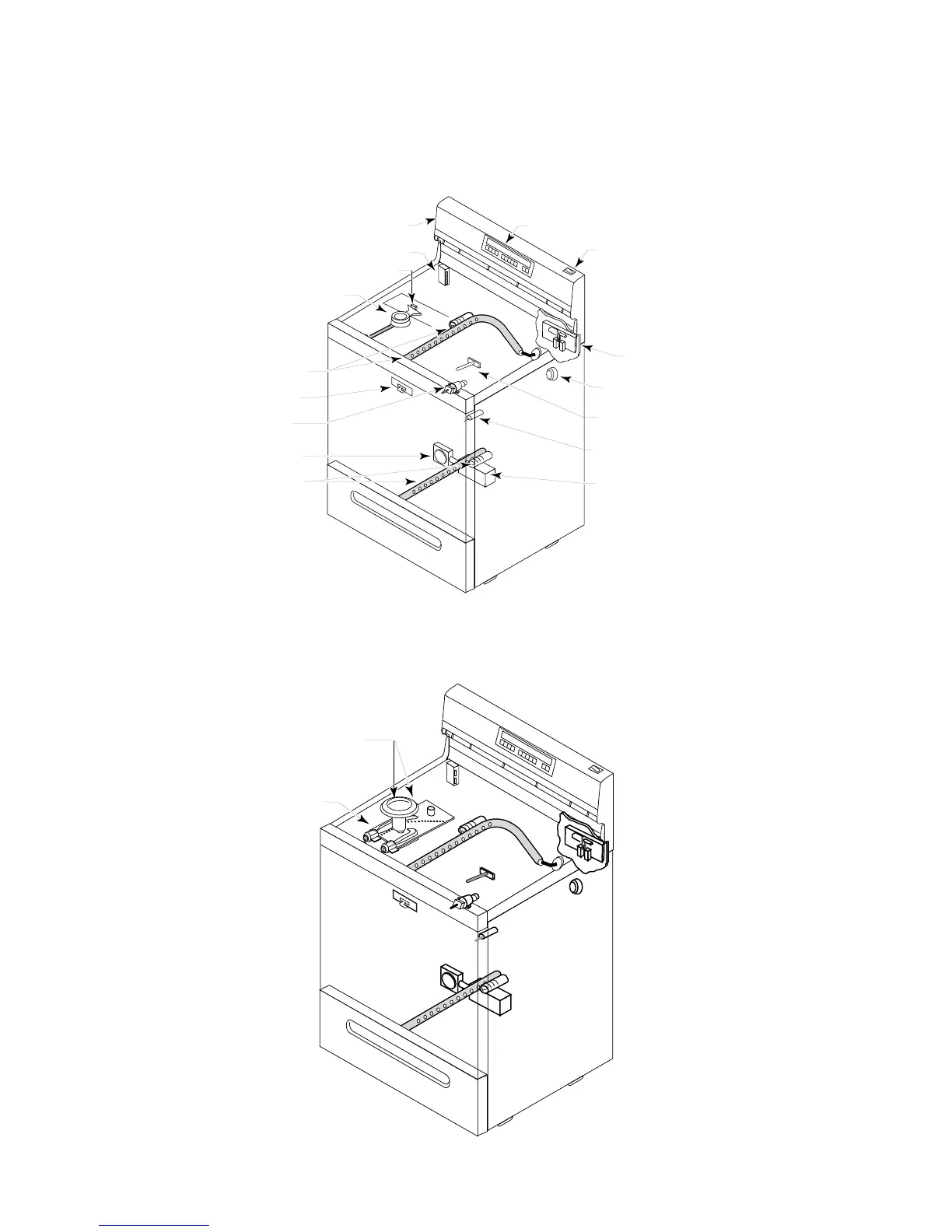

GAS RANGE COMPONENT LOCATIONS
Conventional Burners
CONSOLE
CONVENTIONAL
BURNER
DOOR LATCH
GAS VALVE
& SPARK IGNITOR
SWITCH
MANUAL OVEN
LIGHT SWITCH
GAS SAFETY
VALVE
AUTOMATIC OVEN
LIGHT SWITCH
OVEN LIGHT
LATCH SENSING
SWITCHES & DOOR
LATCH SOLENOID
TEMPERATURE SENSOR
OVEN CONTROL
IGNITOR MODULE
BURNER IGNITOR
PRESSURE
REGULATOR
BROIL BURNER
& IGNITOR
BAKE BURNER
& IGNITOR
SEALED BURNER
& BURNER IGNITOR
VENTURI
Sealed Burners
