- 24 -
OVEN THERMAL FUSE
Electric (Pyro) Gas (Pyro) Electric (Non-Pyro) Gas (Non-Pyro)
Bake Preheat Time &
Temperature Ranges
170˚ - 245˚
2 min. 30 sec.
250˚ - 445˚
4 min. 15 sec.
450˚ - 500˚
6 min. 30 sec.
170˚ - 245˚
4 min.
250˚ - 445˚
10 min.
450˚ - 500˚
15 min.
170˚ - 245˚
2 min. 30 sec.
250˚ - 445˚
4 min. 15 sec.
450˚ - 500˚
6 min. 30 sec.
170˚ - 245˚
4 min.
250˚ - 445˚
10 min.
450˚ - 500˚
15 min.
Bake Preheat Relay
“ON” Time
Bake % = 100
Broil % = 40
Bake % = 100
Bake % = 100
Broil % = 40
Bake % = 100
Bake Relay “ON” Time
Bake % = 60
Broil % = 20
Bake % = 100
Bake % = 60
Broil % = 20
Bake % = 100
Broil Relay “ON” Time Broil % = 100 Broil % = 100 Broil % = 100 Broil % = 100
Clean Preheat Relay
“ON” Time
Bake % = 60
Broil % = 40
N.A. N.A. N.A.
Clean Relay “ON” Time
Bake % = 80
Broil % = 70
Bake % = 100 N.A. N.A.

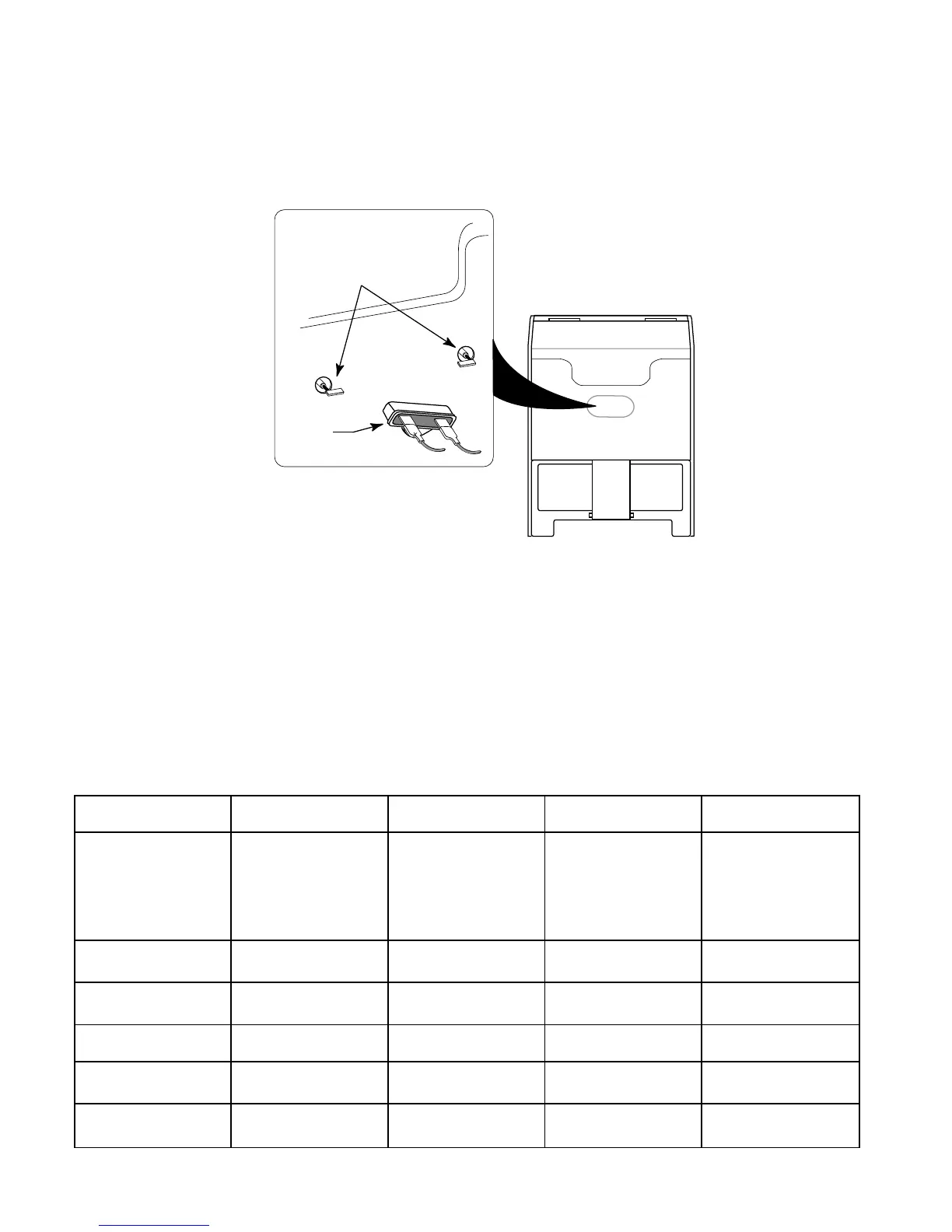

BROIL ELEMENT
TERMINALS
THERMAL
FUSE
BACK OF OVEN
The oven thermal fuse is located on the back of the range. A thermal fuse is used on electric models
with EZ-200 and EZ-300 oven controls.
Relay Cycling Chart
The AccuBake™ Temperature Management System provides better baking results. Both the Bake
and Broil elements can cycle independently or together to maintain more even temperatures.
The following “Relay Cycling Chart” shows how the relays operate the two elements to obtain
various bake and broil temperatures.
ACCUBAKE™ TEMPERATURE
MANAGEMENT SYSTEM
