COMPONENT ACCESS
French-Door Boom Mount Refrigerator
n
3-11
Thermistor and Possible Frost Build-Up (Continued)
Model 
KRFC604FS* W10865106
KRFC704FS* W10815735
JFFCC72EF* W10815734
WRF992FIF*
W10875099WRF993FIF*
WRF995FIF*

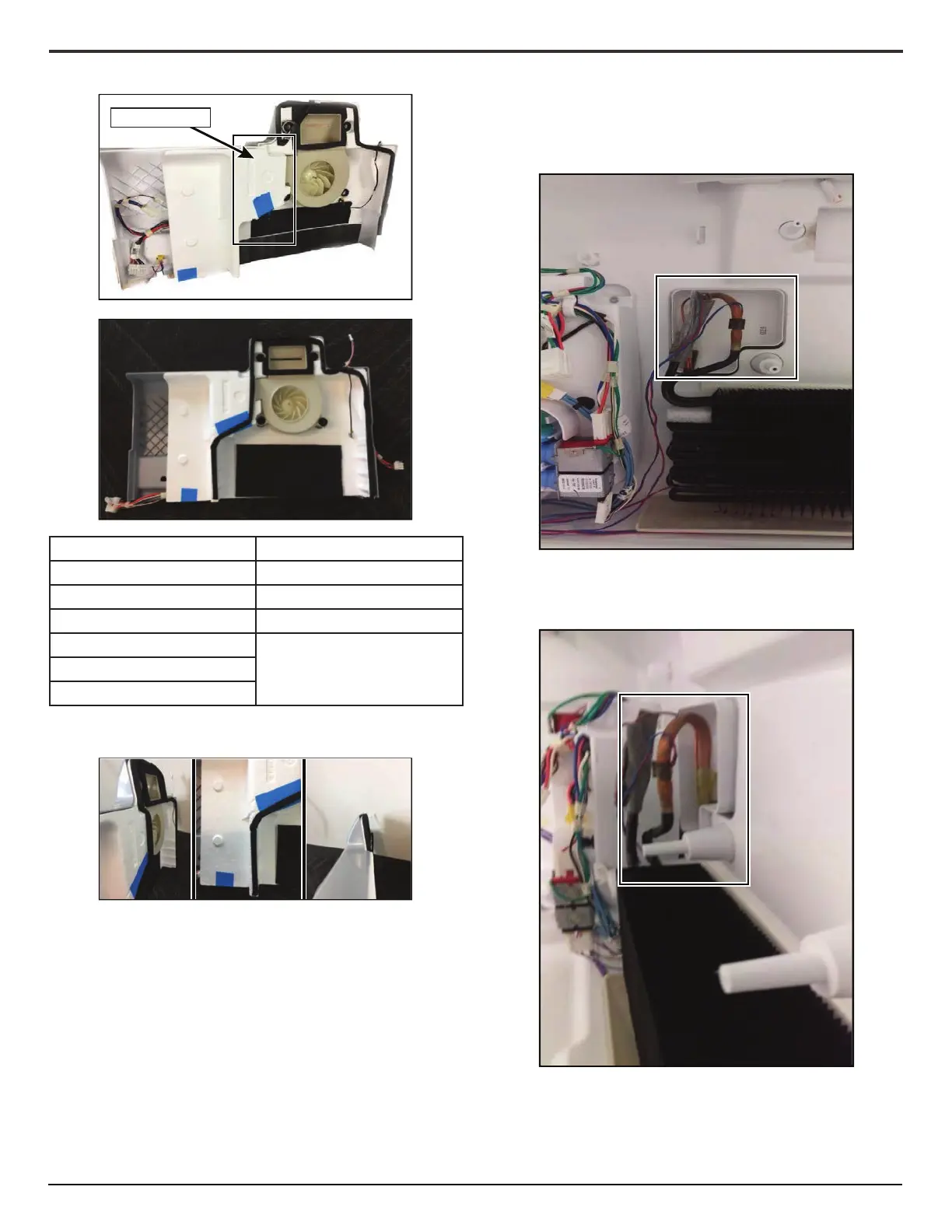

The photos below are showing the new correct gaskets installed
properly.
3. Defrost the refrigerator secon evaporator to ensure it is
completely free of Ice and frost before installing new cover
to insure proper operaon. When using a heat source to
defrost the refrigerator secon evaporator cover, care should
be exercised not to overheat the plasc surface of the cover
or the polystyrene foam behind the cover. Doing so can
permanently damage these components.
4. To insure proper sealing of the replacement refrigerator
secon evaporator cover, be sure that the refrigerant lines
that connect the evaporator do not come in contact with the
replacement cover.
5. If tubing was pulled out for any service access, it should be
moved back to appropriate posion before installing cover.
Sucon tube and evaporator inlet (cap tube with masc
around) must be contained enrely inside projecon of back
wall.
Sucon tube and evaporator inlet (cap tube with masc
around) must be contained, front to back, enrely within
depth of evaporator.
Gasket is missing
