PREPARING AND INSTALLING THE
WALL MOUNT EVAPORATOR UNIT (FAN COIL UNIT)
• Drill
• 5/32” Drill Bit
• 1/4” Socket Drill Bit
• 1/4” Wrench
• Phillips Head Screwdriver
• Tape Measure
• Brazing Torch
• Drywall Saw
• Ladder
• Level
• Pliers
• Pencil
Required Tools:
1. Remove the knockouts for the drain line,
line set, and electrical on the bottom or rear
of the unit depending on your installation
preference.
2. Remove the knockout on the bottom of the
unit for the bottle probe connector
3. Remove the insulation from the knockout
holes.
4. Remove the nut from the bottle probe
connector.
5. Insert the bottle probe connector through
the knockout.
6. Secure the bottle probe connector to the
wrapper with the nut removed in step 4.
7. For ease of installation, remove the 9 screws
securing the top and remove the top.

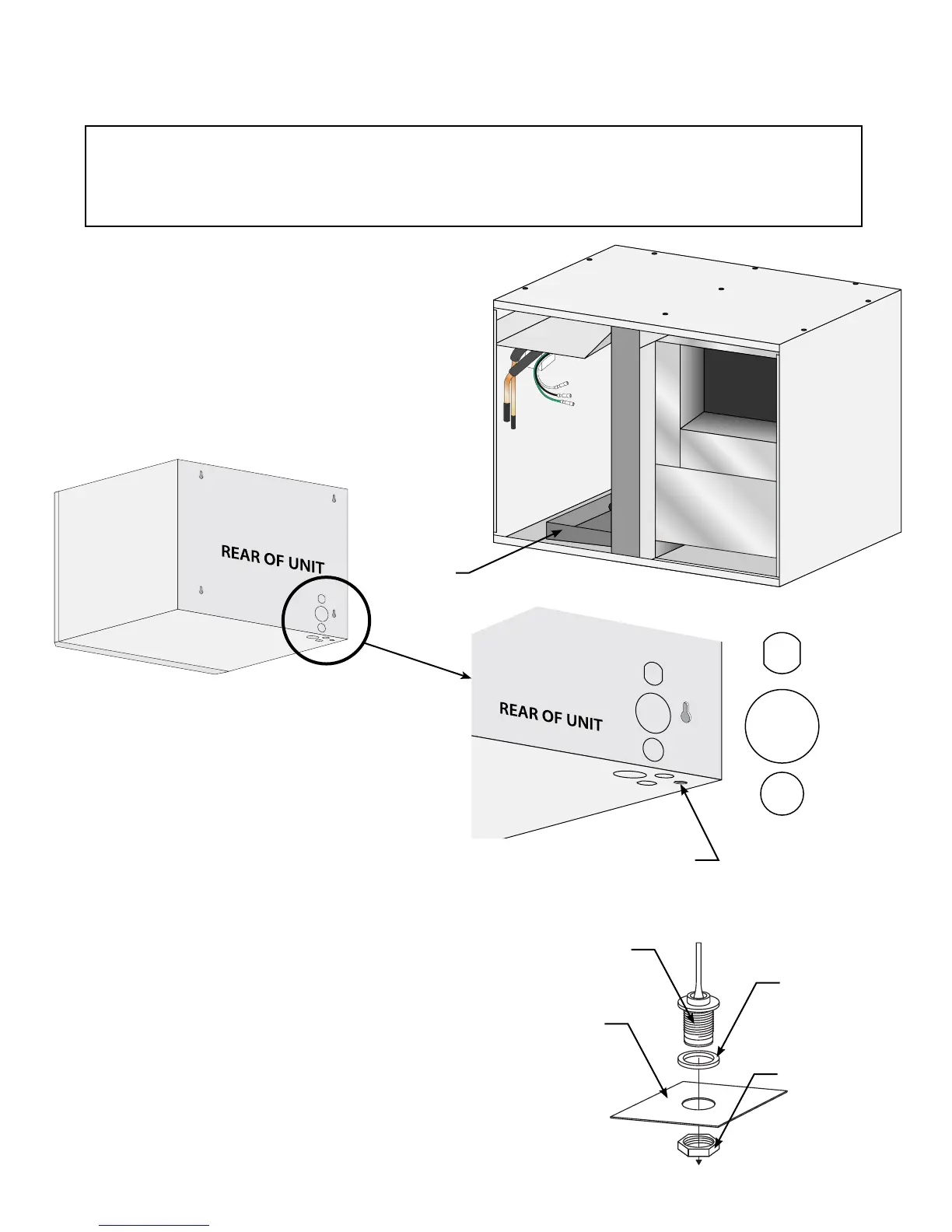

RUBBER WASHER
NUT
UNIT PANEL
CIRCULAR CONNECTOR/
BOTTLE PROBE INPUT
HOLE FOR CIRCULAR CONNECTOR
(BOTTLE PROBE INPUT)
Power
3/8” Suction
1/4” Liquid
Drain
DRAIN PAN
