INSTALLING THE WALL MOUNT KIT
°
F
DRAIN PAN
1. If removed, re-install the top onto the unit.
2. Connect the red wire from the display adapter to the upper (+) terminal on the display located on the
front grille
3. Connect the black wire from the display adapter to the lower (-) terminal on the display

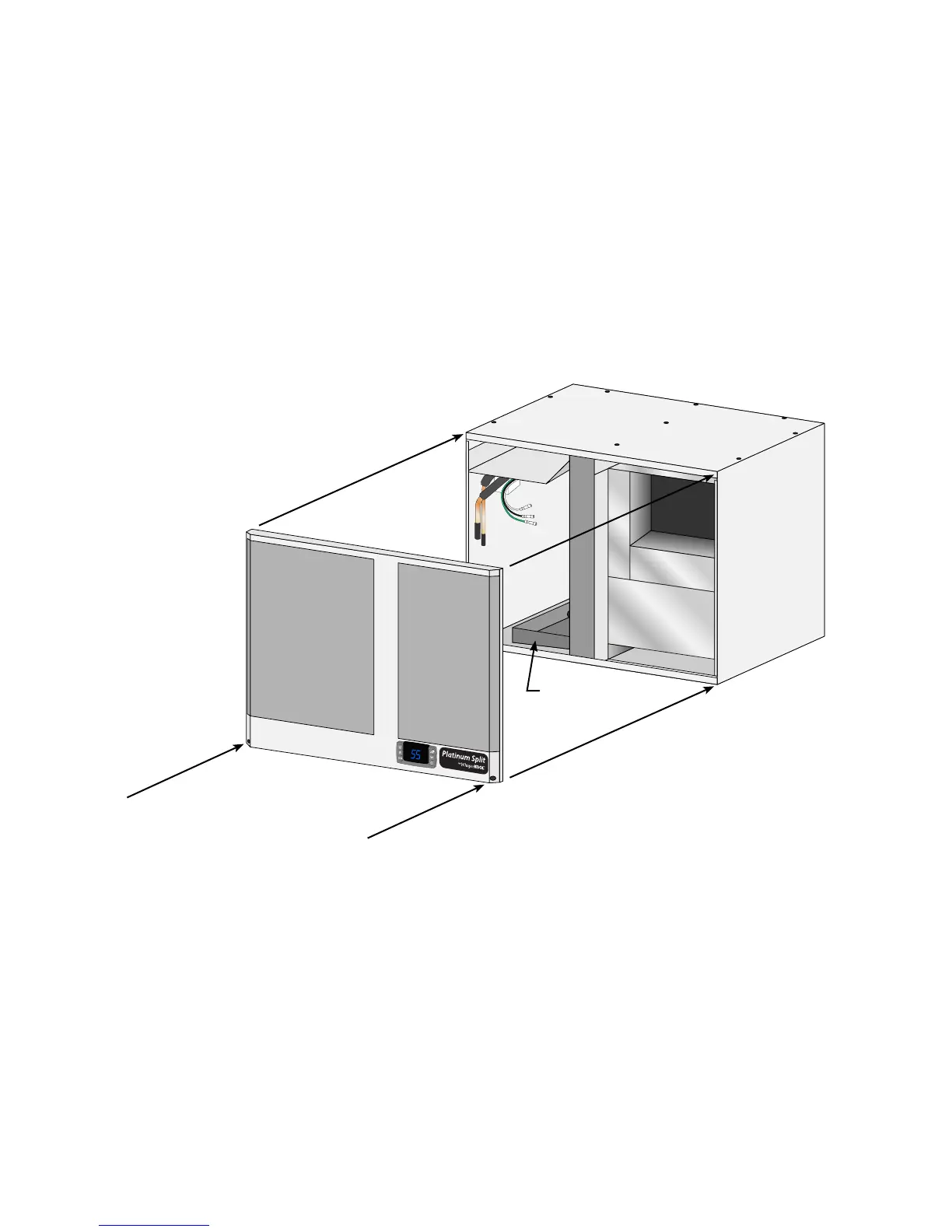

4. Align the front grill with the 4 ball studs on the housing. Push the front grill onto the balls studs until it
snaps into place.
5. Using a Phillips head screwdriver, fasten the bottom two screws to fasten the grille to the unit
