PS 112713
Page 18 | 1-800-343-9463
If you have a system with a remote keypad, please review this section for installation.
Note: 50 feet of communication line is included, the keypad can be installed up to 300 line feet away. Longer lengths
of communication line can be ordered by calling 1-800-343-9463 ext. 751.

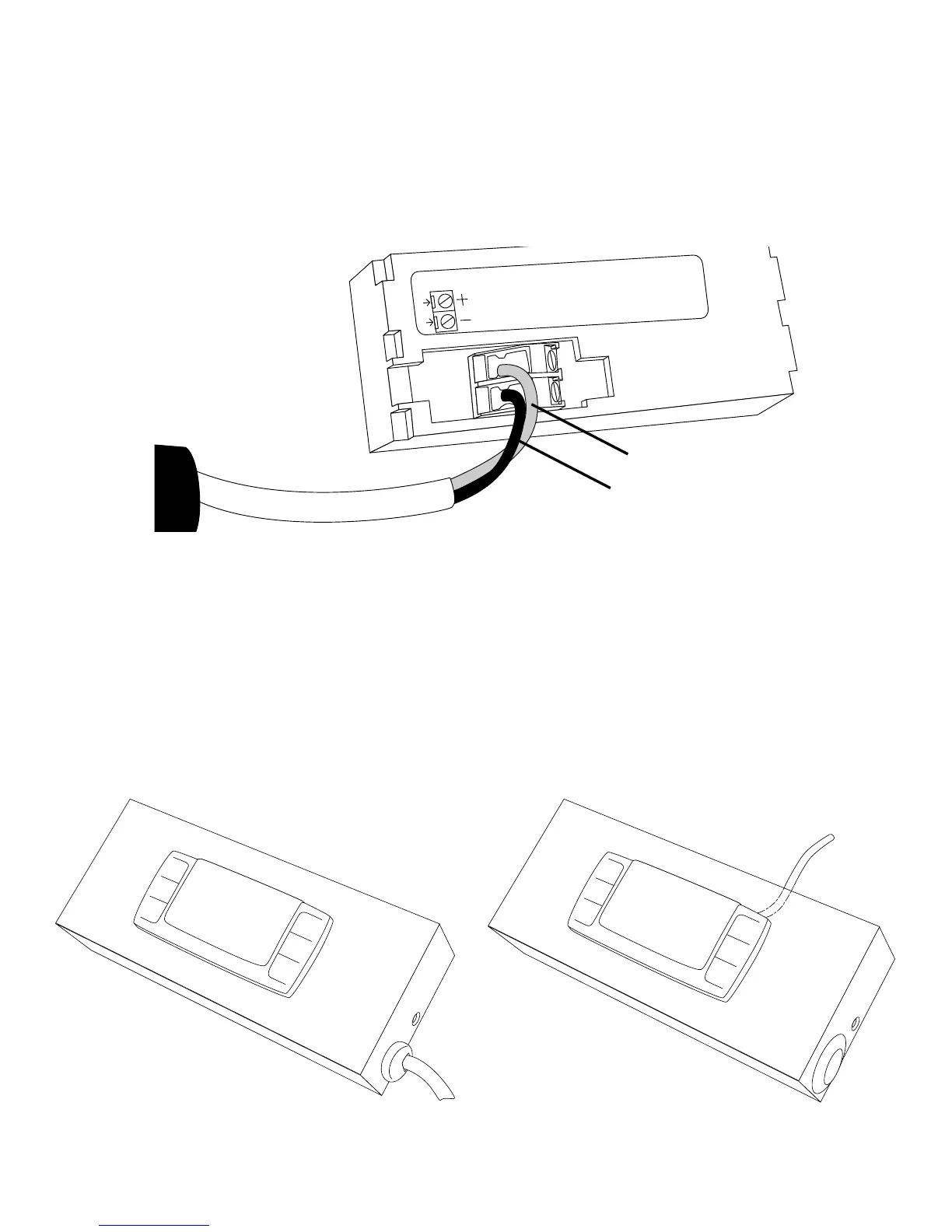

Route the communication line from the evaporator unit to the desired keypad location. Remove the wall mount
bracket from the display housing. Using appropriate anchors or fasteners, secure the wall mount bracket to the
wall. If routing the communication line through a wall, connect the wires to the back of the control following the
image above. Connect the red wire to the upper (+) terminal. Connect the black wire to the lower (-) terminal. If the
communication wire is not routed through the wall, remove the plug in the side of the display housing. Route the
wire through the hole and connect to the back of the display as shown above.
Red Wire
Black Wire
REMOTE KEYPAD: INSTALLATION AND CONFIGURATION
Connection wire in Side Mount conguration Connection wire in Rear Mount conguration
To Next Page
