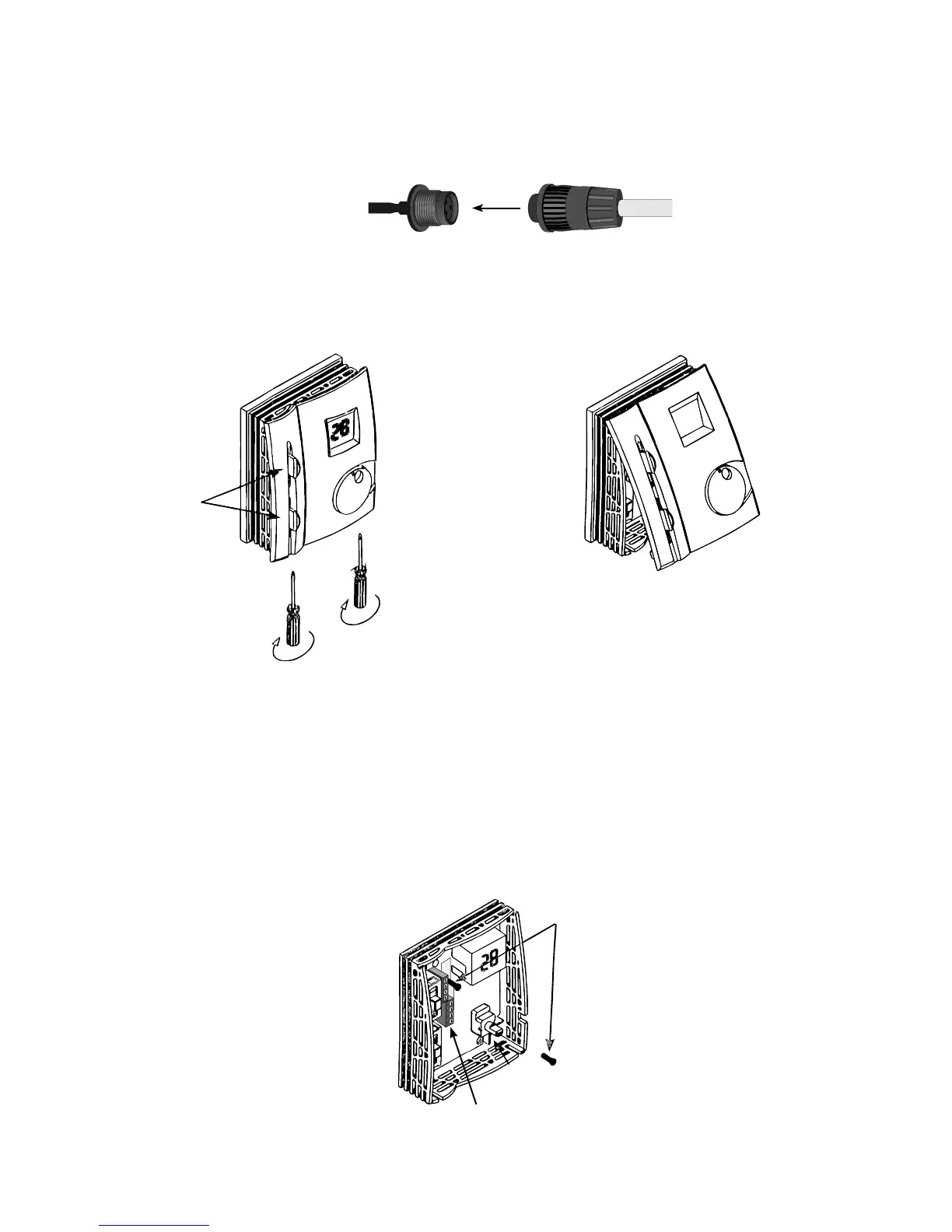

Figure 1
Removing the Cover
1.
Move both slide controls to the bottom position.
2. Use a screwdriver to loosen the screws at the bottom of the humidistat as shown in Figure 2.
Routing the Wiring
1. Plug the circular connector from the humidistat cable into the circular connector on the unit as shown in
Figure 1.
2. Route the wire from the unit to the desired humidistat location.
Mounting Without a Wall Mount Plate
1. Make sure the humidistat electrical is unplugged before installing the unit.
2. Position the back half of the humidistat cabinet on the wall or junction box and ensure it is level and covers the
junction box completely.
3. Pull the electrical wires through the hole at the terminal block of the humidistat.
4. Drill holes in the wall through the 2 mounting holes in the back of the humidistat cabinet as shown in Figure 4
and insert anchors into the holes.
5. Fasten the humidistat to the wall with screws through the mounting holes.
Figure 2
Figure 4
Slide controls
Figure 3
HUMIDISTAT INSTALLATION
Screws
Terminal Block
3. Carefully remove the cover as shown in gure Figure 3.
