Whynter ARC-122DHP User Manual

8

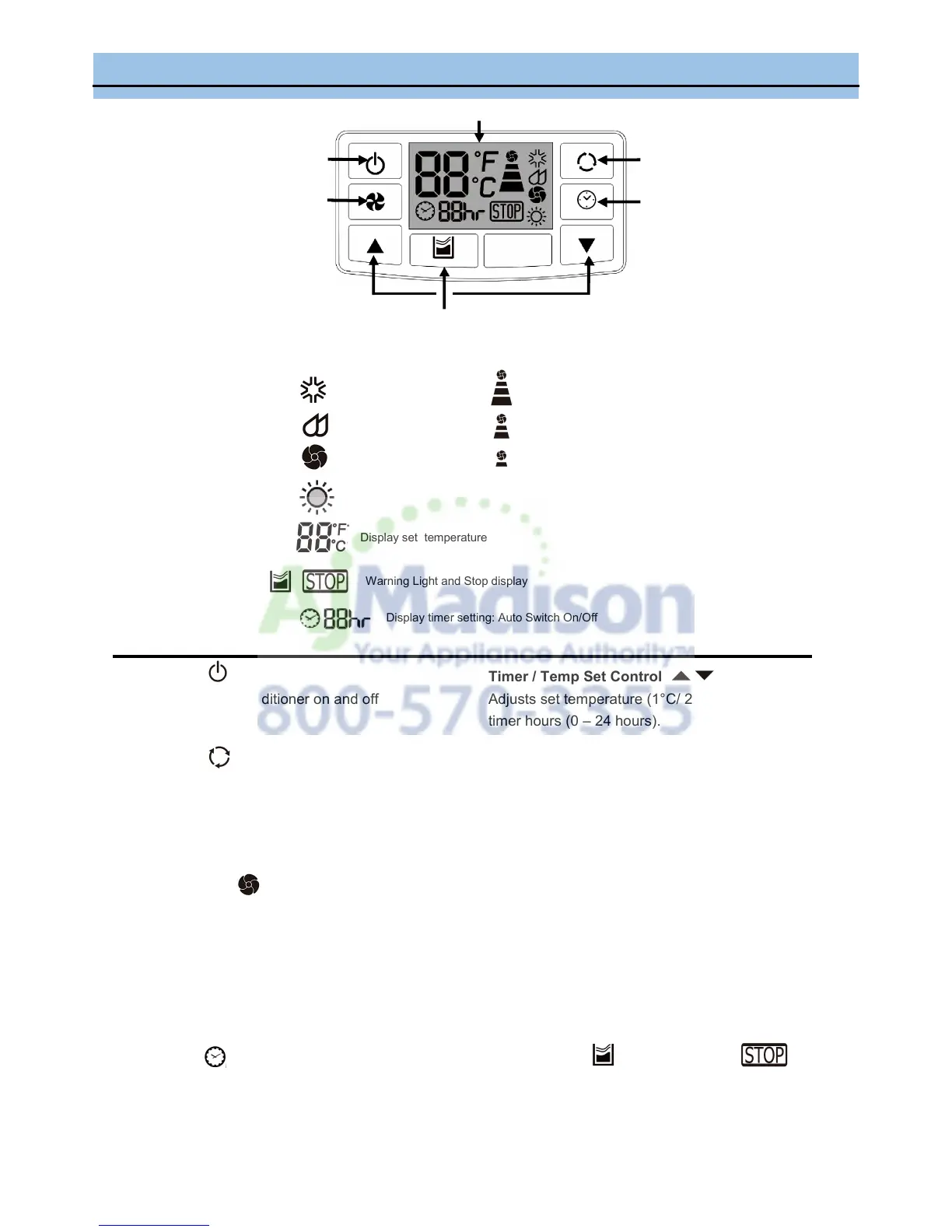

CONTROL PANEL
LCD Display
Power Button
Fan Speed
Button
Warning Light Timer / Temp
Set Control
Mode Control
Timer Button
Indication symbols on LCD :
Cooling mode
Dehumidifying mode
Fan only mode
High Fan speed
Medium Fan speed
Low Fan speed
Power Button
Press to turn the air conditioner on and off
Mode Button
Press to change mode
 Controls the 4 function modes: COOL, HEAT,
FAN, and DEHUMIDIFY
Fan Speed Button
Press to change fan speed
 Controls the 3 fan speeds: HIGH, MEDIUM, and
LOW. The fan speed indicator lights illuminates
to show the set fan speed.
NOTE: Unit does not need to be vented in Fan Mode
Timer Button
Press to program Timer Delayed
Switch ON or OFF function
Timer / Temp Set Control
Adjusts set temperature (1°C/ 2°F increments) or
timer hours (0 – 24 hours).
 This unit is capable of displaying set tempera-
ture in Fahrenheit or in Celsius.
 To convert from one to the other, press and hold
the Up and Down buttons for 3 seconds.
LED Display
 In Cool mode: shows set temperature in °C or °F
 In DEHUMIDIFY and FAN only modes: shows
room temperature.
Warning Light and Stop display
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Warning Light and
STOP display will come on and the unit will not oper-
ate until the unit has been drained.
Display set temperature
Warning Light and Stop display
Display timer setting: Auto Switch On/Off
Heating mode

Whynter ARC-122DHP Specifications

General

Type	portable
Operating Area Size	400 square feet
Cooling Settings	1
Seasonally Adjusted Cooling Capacity	6829.55 british thermal units
Heater	yes
Fan Airflow Rate	155 cubic feet per minute
Hose	dual
Remote Control	yes
Wireless Connectivity	none
Timer	yes
Sleeping Mode	yes
