4. Operating and indicating elements

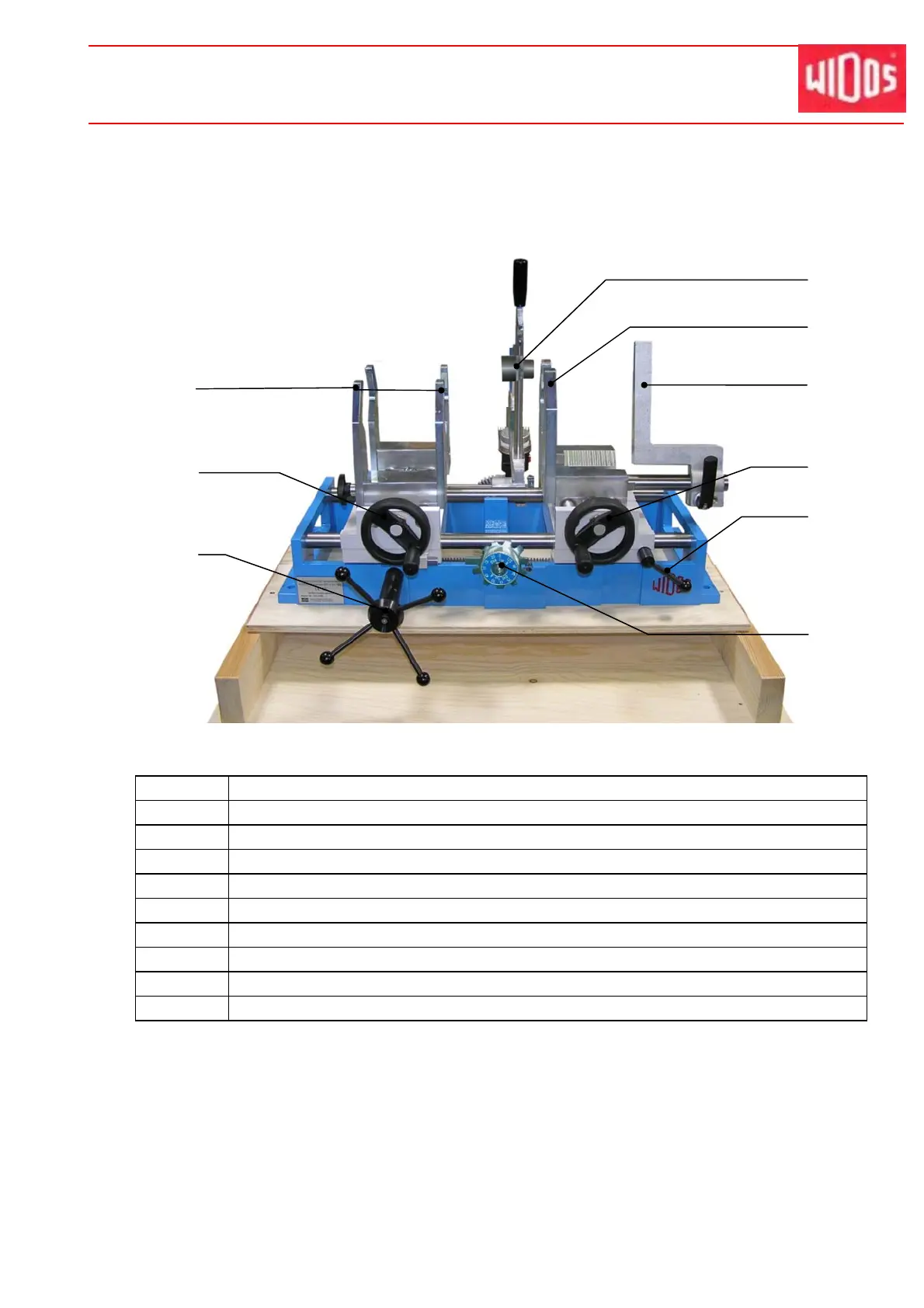

4.1. Elements at the front
No. Denomination / function
1 Clamping tool left for pipe
2 Handle for pipe clamping tool left side, clamping tool open / close
3 Cross handle for slides; both slides open / close
4 Heating element with spigot and socket
5 Clamping tool for fitting right side
6 Universal support for fittings
7 Handle for fitting clamping tool tight side, clamping tool open / close
8 Clamping lever for locking slides
9 Dial (DVS type B / ASTM mm / ASTM inch) for insertion depth and zero offset
1
2
3
4
5
6
7
8
9
