Operating and indicating elements Chapter 4
20.08.14 Working instructions WIDOS 3511 Page 15 of 39

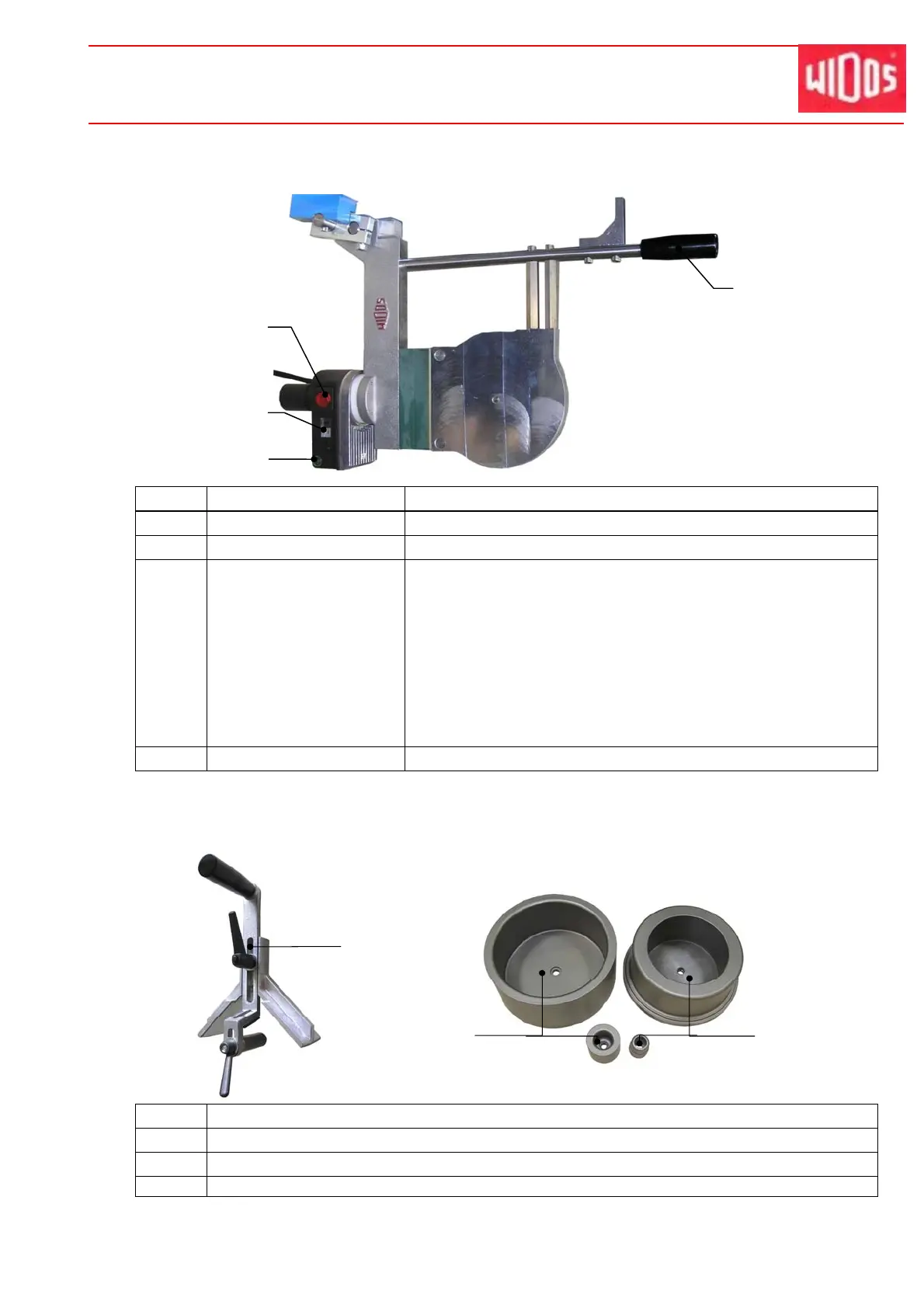

4.2. Elements on the heating element
No. Denomination Function
10 Switch on/off Red light as soon as the heating element is switched on
11 Knob with slot Setting the heating element temperature
12 Control lamp green Three different states:
off: signal showing that the heating element is not heated
up at the moment or that it is cooling.
blinking: the temperature of the heating element is
maintained by a defined pulse-position ratio.
on: signal showing that the heating element is heated up at
the moment. The nominal temperature has not
been reached yet.
13 Grip Swiveling the heating element in / out manually
4.3. Accessories
No. Denomination / Function
14 Pipe chamferer for 15°-chamfering the pipe end (optional)
15 Spigot
16 Socket
10
11
12
13
14
15
16
