7.5. Adjusting of the mismatch compensation
Adjusting of the mismatch compensation is only required after repair works or
exchange of spare parts.
It may only be performed by WIDOS staff or respective authorized persons.
 You can make an horizontal mismatch compensation (max. 10 mm).
 Detach the counter nut and adjust the adjustment bushing until the mismatch is cleared.
 Check the line with a gauge for example.
 Tighten the counter nut afterwards again.
7.6. Disposal
At the end of the life time, the machine has to be disposed of properly,
non-polluting and in accordance with the national laws of waste disposal.

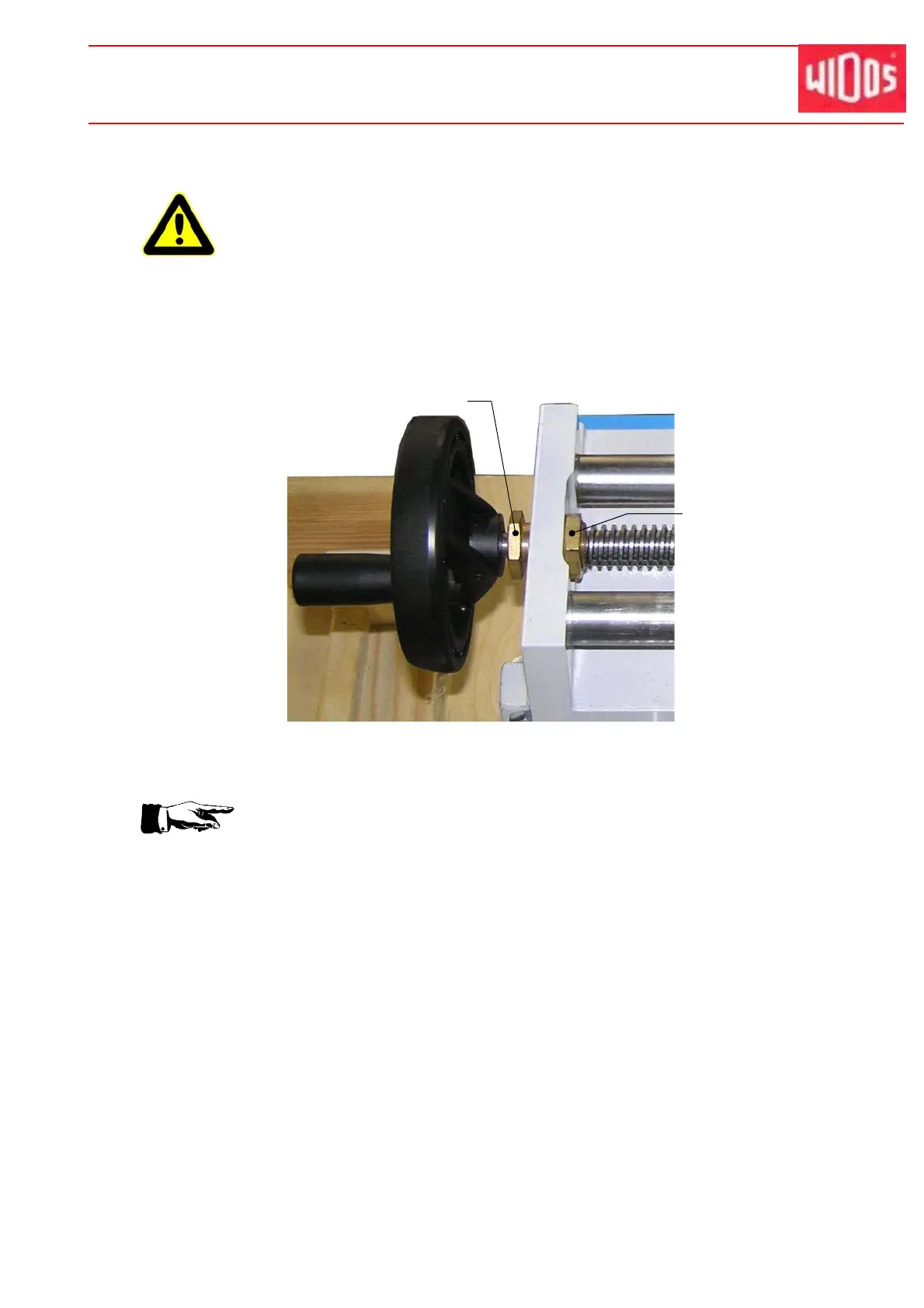

Counter nut
