26 WIKA operating instructions pressure transmitter, models E-10 and E-11
EN

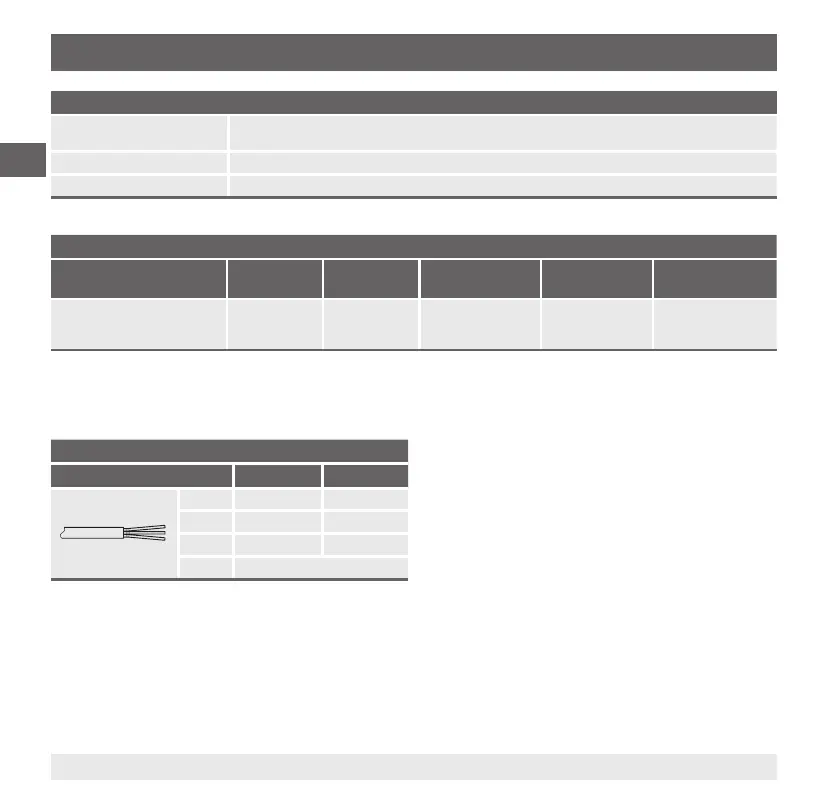

Further details on: Process connection
Possible restrictions Depending on the choice of sealing on the process connection, there may be restrictions in the permissible
medium and ambient temperature range.
NBR -30 ... +100 °C [-22 ... +212 °F]
FPM/FKM -15 ... +102 °C [5 ... 215 °F] / -15 ... +105 °C [5 ... 221 °F]
Electrical connection
Connection type IP code
1) 2)
Wire cross-
section
Cable diameter Cable lengths Cable material
½ NPT male conduit, with
potted cable outlet
IP67 3 x 0.5 mm²
AWG20
6.8 mm [0.27 in]
■
2 m
■
5 m
■
10 m
Polyolen copolymer
1) The stated IP codes only apply when plugged in using mating connectors that have the appropriate IP code.
2) For IP code IP67 the ambient temperature range is limited to -40 °C ... +80 °C [-40 ... +176 °F].
Pin assignment
½ NPT male conduit, with potted cable outlet
2-wire 3-wire
U+ Red Red
U- Black Black
S+ - Brown
Shield Shield connected to case
Legend
U
+
Positive power supply terminal
U- Negative power supply terminal
S+ Analogue output
9. Specications
