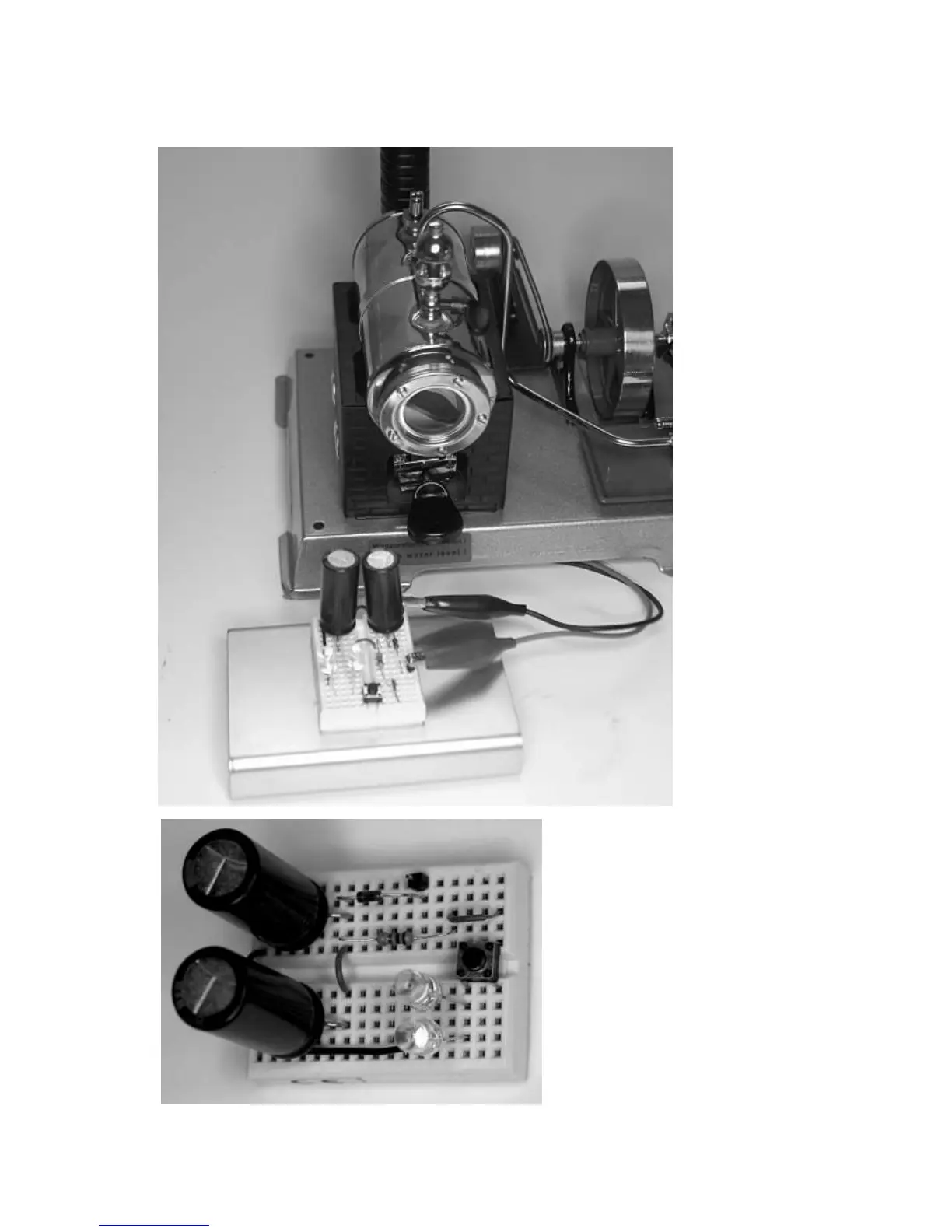

Fig.3.59:
Charging
station, LED
with the
steam
engine
model
Fig.3.60: Assembly of the
bread board, with two
parallel plugged in
electrolytic 4700µF,
Schottkydiode, switch, two
white LEDs and jumpers`
