72

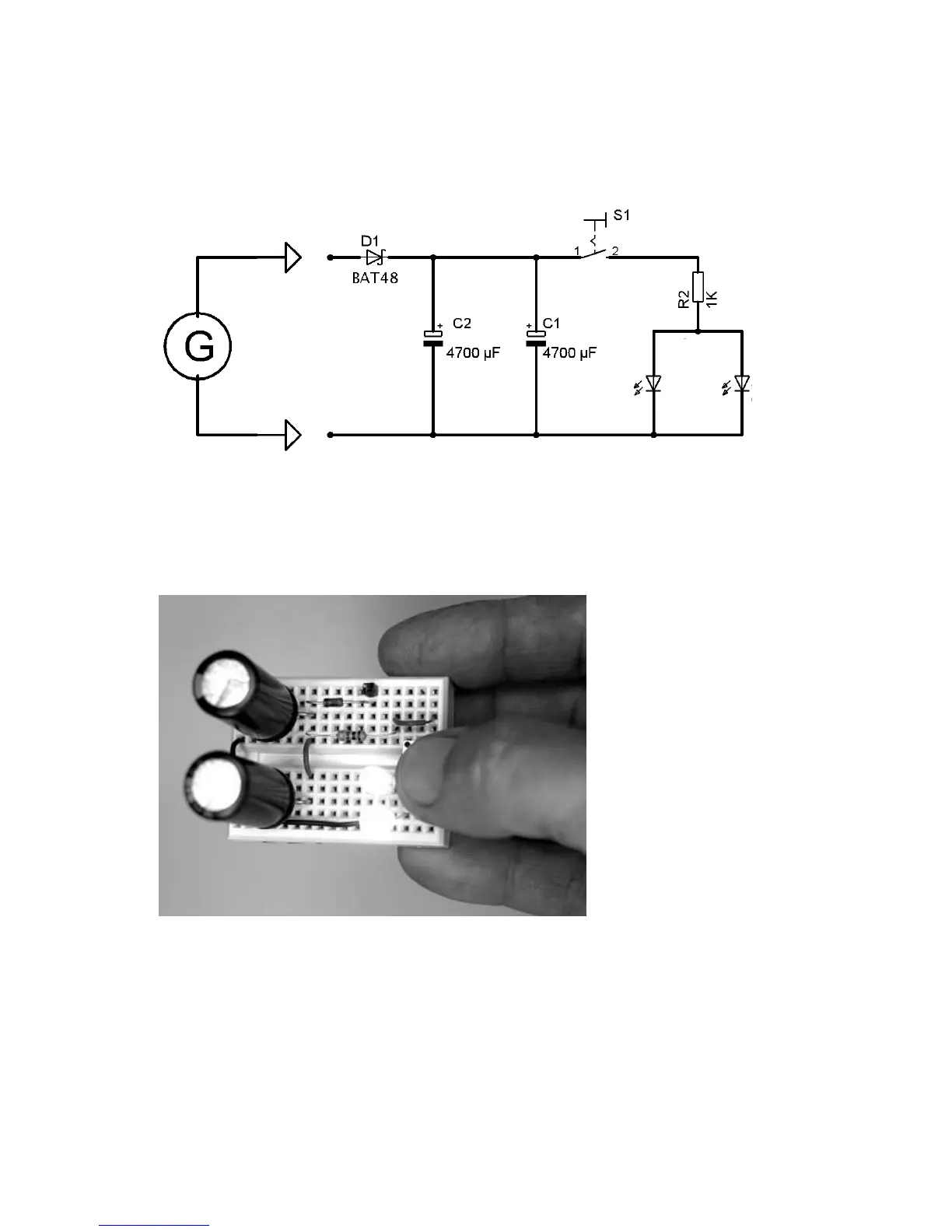

Fig.3.61: circuit diagram of the charging station
Fig.3.62: disconnected
“LED torch” in action
One can create a lot more experiments with the Steam Box D 100E and with
the E-Box 50.
I wish you a lot of fun and creativity!
D5 LED white
D4 LED white
